Integrated Circuits (ICs)  >  Power Management ICs  >  Hot Swap Controllers

Infineon - BSP76E6433HUMA1

BSP76E6433HUMA1 - Infineon

Power Switch Lo Side 1.4A Automotive 4-Pin(3+Tab) SOT-223 T/R

 Datasheets

Technical Details

Case/Package SOT-223
Drain to Source Voltage (Vdss) 42V
Fault Protection Over Voltage, Over Temperature
Halogen Free Not Halogen Free
Interface On/Off
Lead Free Lead Free
Length 6.5mm
Max Dual Supply Voltage 42V
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Max Output Current 1.4A
Max Power Dissipation 3.8W
Max Supply Voltage 42V
Mount Surface Mount
Nominal Input Voltage 42V
Number of Channels 1
Number of Outputs 1
Number of Pins 4
On-State Resistance 200mR
Output Configuration Low Side
Output Current 1.4A
Output Voltage 42V
Package Quantity 4000
Packaging Tape and Reel
Power Dissipation 3.8W
Radiation Hardening No
Rds On Max 200mR
RoHS Compliant Yes
Series HITFET®
Voltage 42V
Width 3.5mm

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

Infineon BSP76E6433HUMA1 | Arrow Electronics

Arrow Electronics

Infineon BSP76E6433HUMA1 | Distrelec

Distrelec

Infineon BSP76E6433HUMA1 | Rs

Rs

Datasheets

Verical

Lifecycle Status Indicator

   Volume Production
 Loading indicators

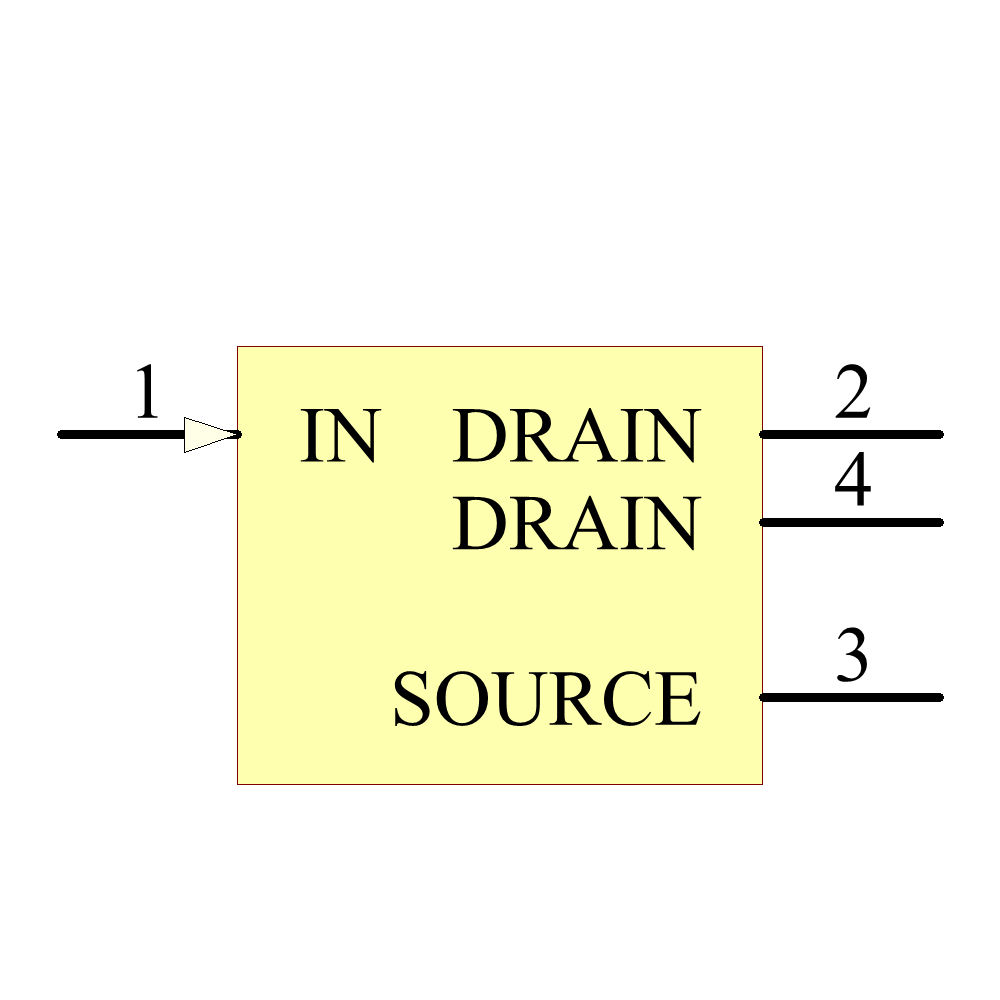

Symbol

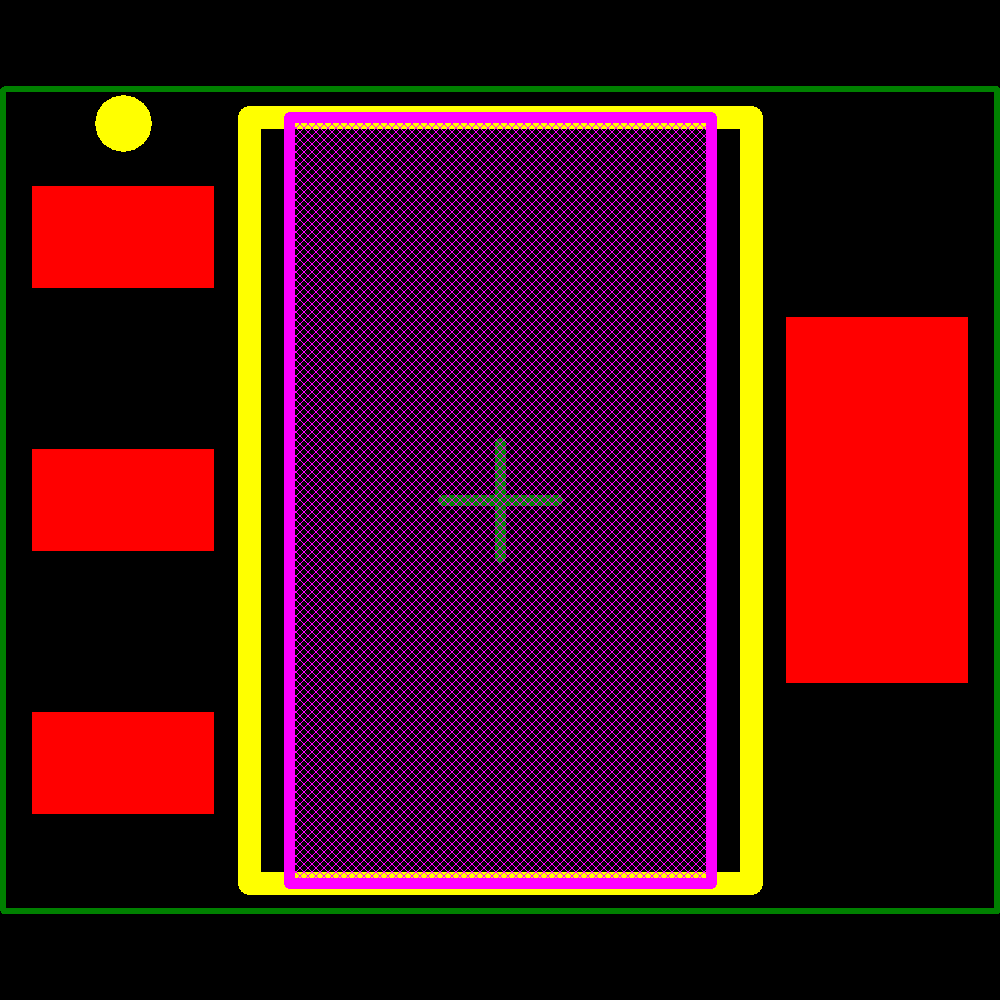

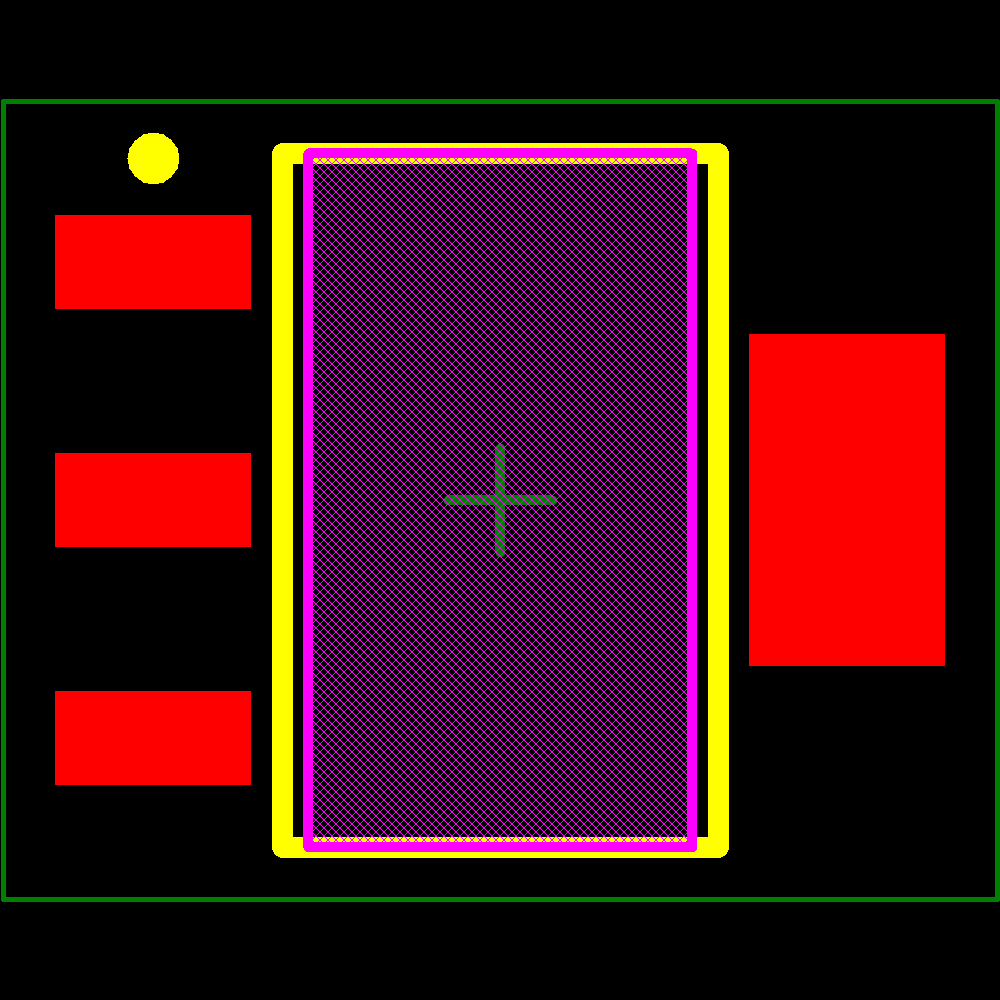

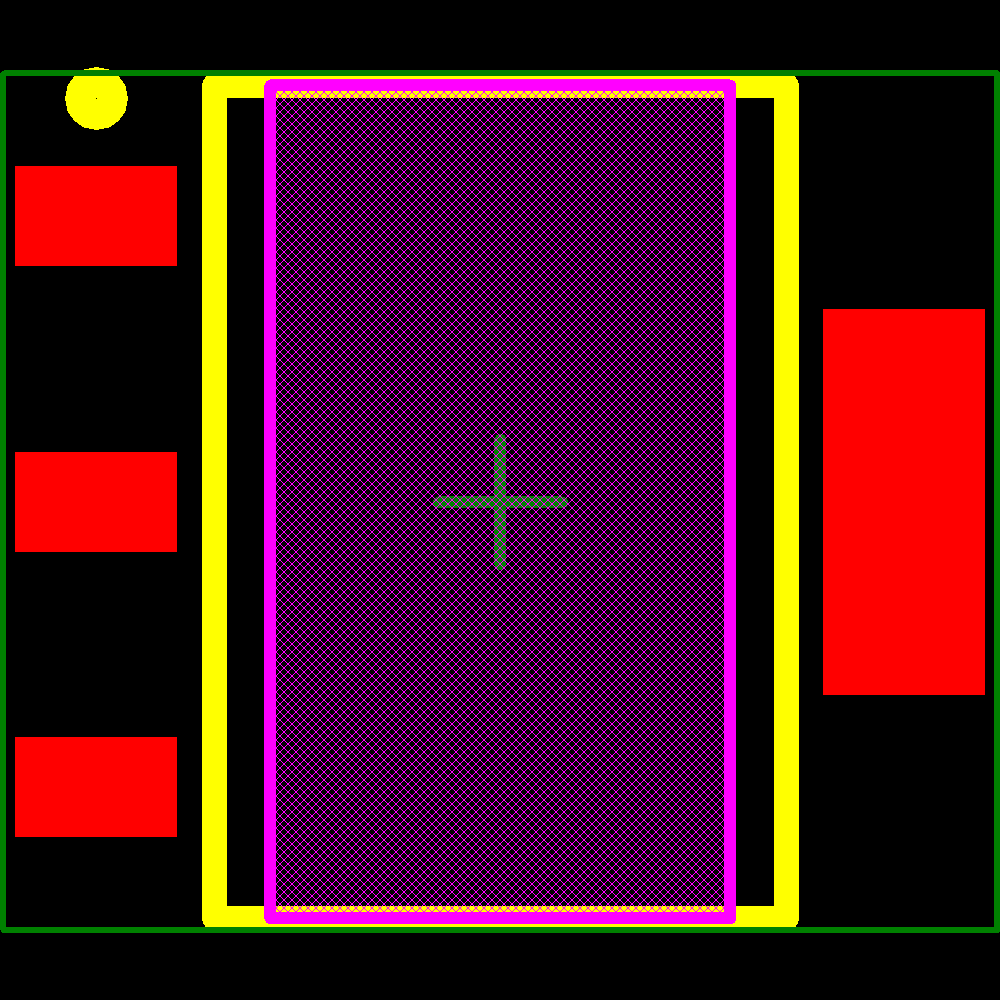

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Infineon
BSP78HUMA1
Volume Production
Diodes
ZXMS6005DGTA
Not Recommended for New Design
Littelfuse
025707.5PXOCR
End of Life
Littelfuse
00970034TXN
Volume Production
STMicroelectronics
VNN1NV0413TR
Obsolete
Multicomp
MCAST30A32V
Not Recommended for New Design
Multicomp
MCATQ7.5A32V
Obsolete
