Integrated Circuits (ICs)  >  Embedded Processors and Controllers  >  Microcontrollers

Cypress - CY7C68013A-56LTXC

CY7C68013A-56LTXC - Cypress

IC MCU USB PHERIPH FX2LP 56VQFN

 Datasheets

Technical Details

Case/Package QFN
Core Architecture 8051
Data Bus Width 8b
Data Rate 480Mbps
ESD Protection Yes
Frequency 48MHz
Height 0.95mm
Interface I2C, USB, USART, UART
Length 8.1mm
Max Frequency 48kHz
Max Operating Temperature 70°C
Max Power Dissipation 300mW
Max Supply Voltage 3.6V
Memory Size 16KB
Memory Type ROMless,
Min Operating Temperature 0°C
Min Supply Voltage 3V
Number of Channels 1
Number of I/Os 24
Number of Pins 56
Number of Timers/Counters 3
Number of Transceivers 1
Operating Supply Voltage 3.3V
Package Quantity 260
Packaging Tray
Radiation Hardening No
RAM Size 16KB
Series EZ-USB FX2LP™
Width 8.1mm

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

Cypress CY7C68013A-56LTXC | Mouser

Mouser

Cypress CY7C68013A-56LTXC | Arrow Electronics

Arrow Electronics

Cypress CY7C68013A-56LTXC | Digi-Key

Digi-Key

Datasheets

Mouser
Farnell
Digi-Key
Arrow Electronics
Avnet
Future Electronics

Lifecycle Status Indicator

   Not Recommended for New Design
 Loading indicators

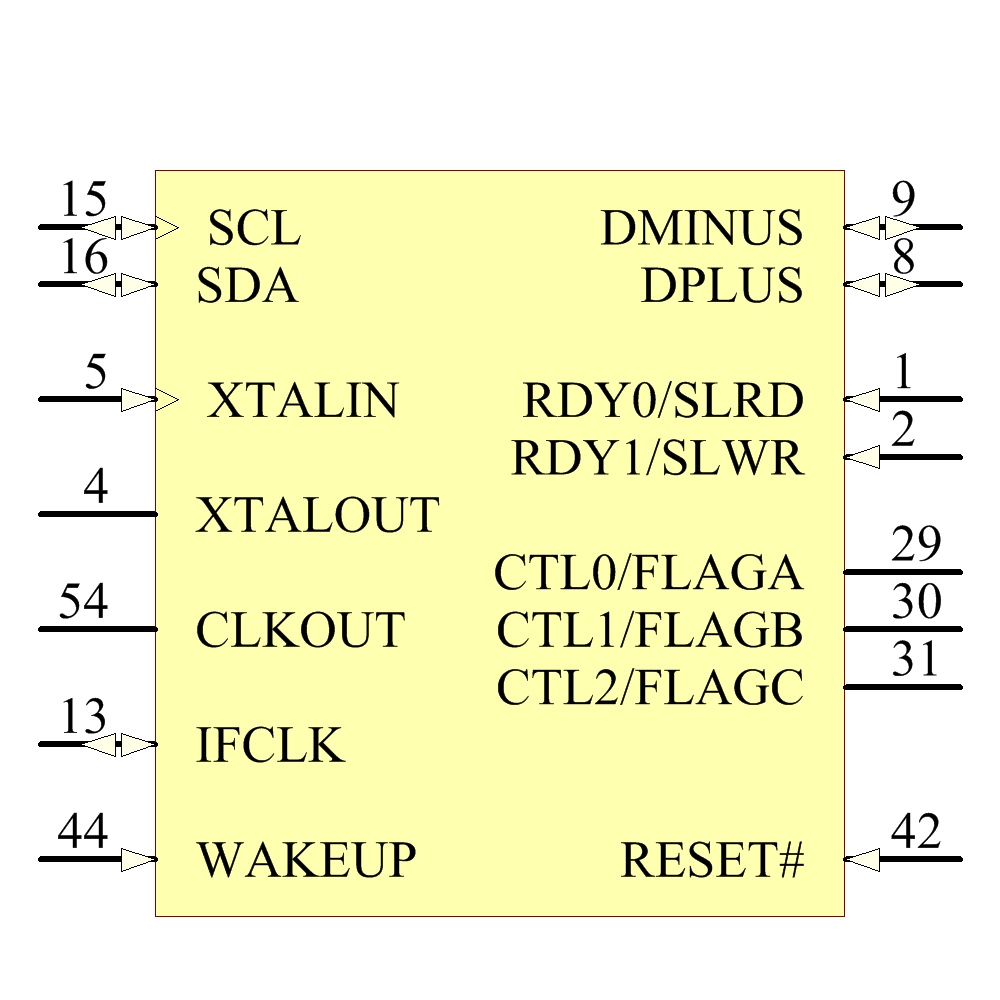

Symbol

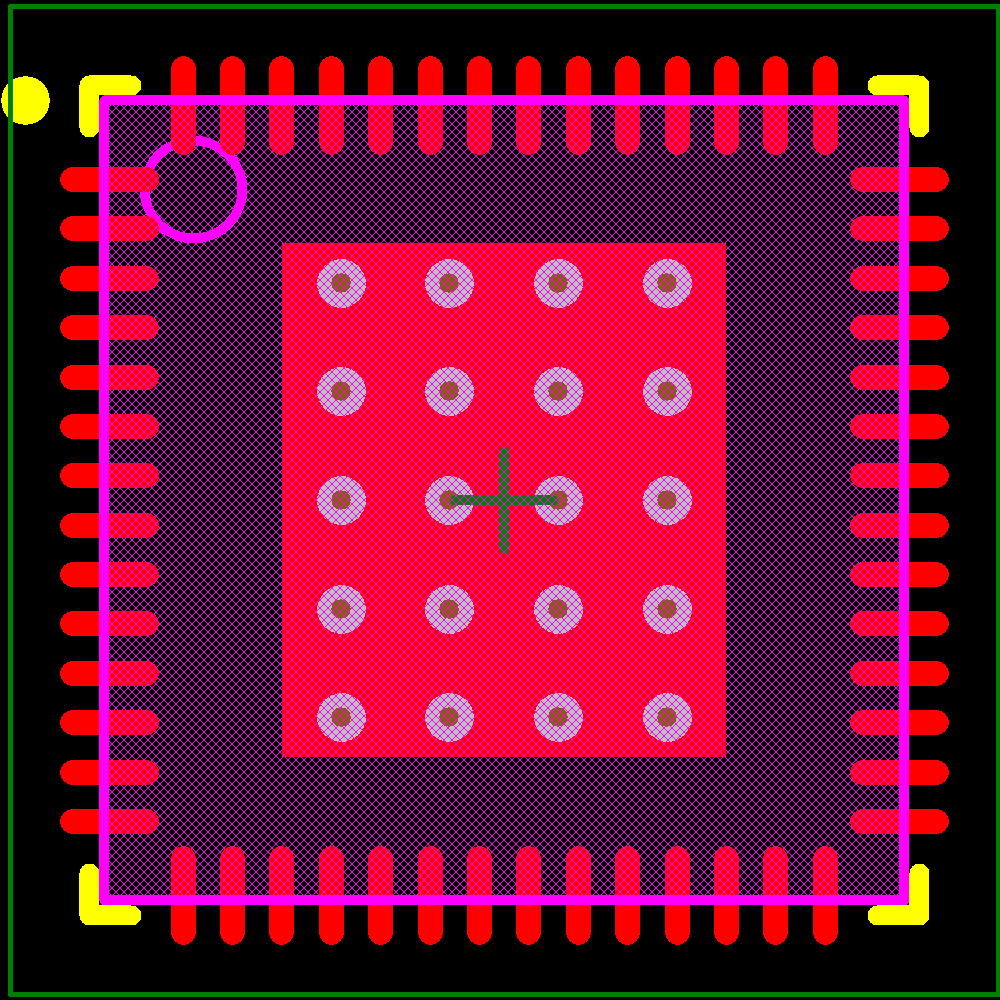

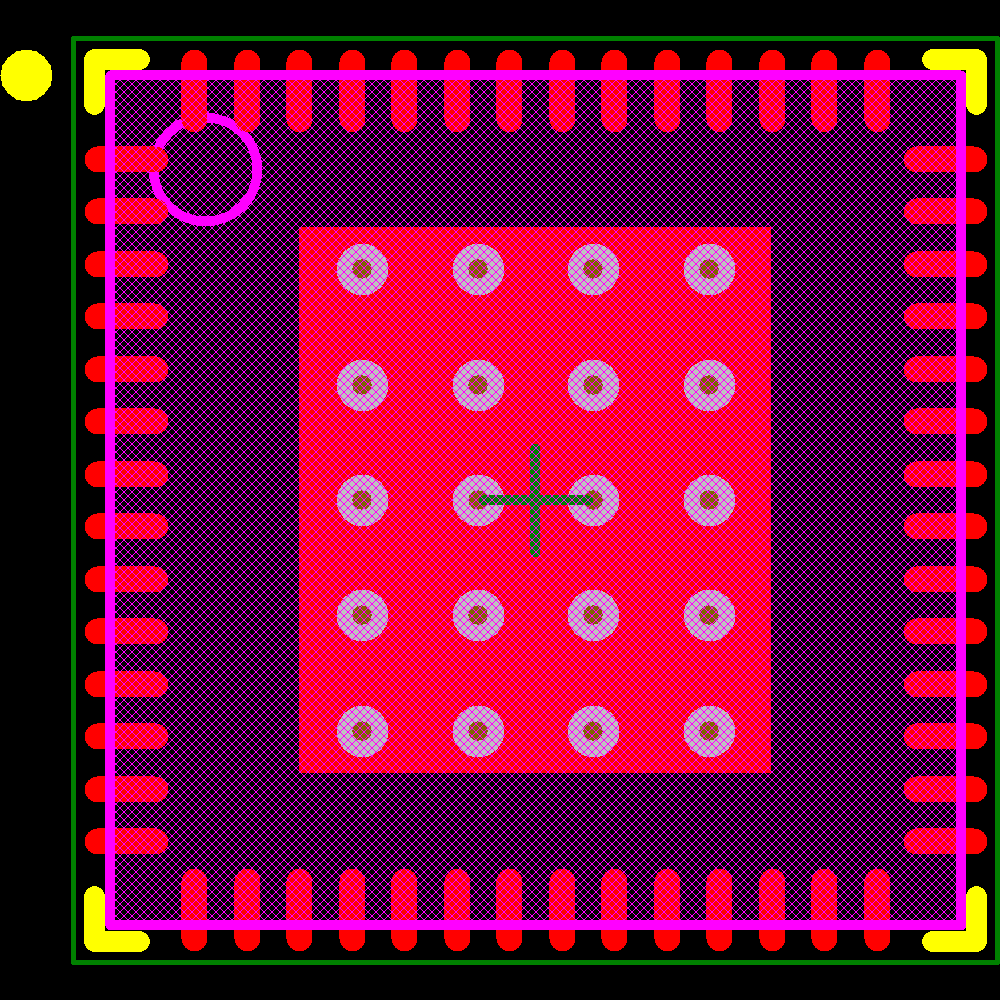

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Cypress
CY7C68013A-56LTXI
Volume Production
