Technical Details
| Average Rectified Current | 250mA |
| Capacitance | 3.5pF |
| Case/Package | SOT-363 |
| Current Rating | 250mA |
| Element Configuration | Common Anode |
| Forward Current | 500mA |
| Forward Voltage | 720mV |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Output Current | 250mA |
| Max Power Dissipation | 200mW |
| Max Reverse Voltage (DC) | 80V |
| Max Surge Current | 4A |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 4 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Packaging | Cut Tape |
| Peak Non-Repetitive Surge Current | 4A |
| Peak Reverse Current | 100nA |
| Power Rating | 200mW |
| REACH SVHC | No |
| Recovery Time | 4ns |
| Reverse Recovery Time | 4ns |
| Reverse Standoff Voltage | 70V |
| Reverse Voltage (DC) | 80V |
| RoHS | Non-Compliant |
| Voltage Rating (DC) | 80V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

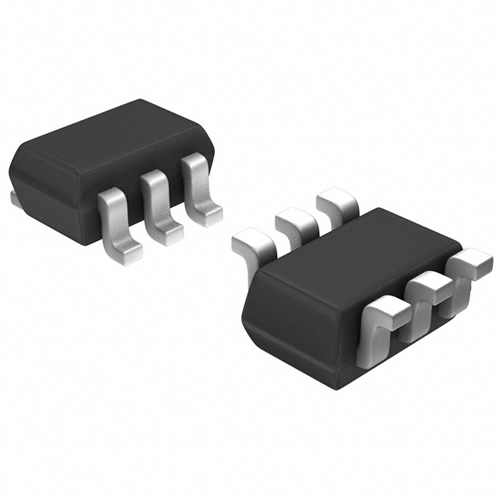

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Production | ||
| ROHM | Production | ||
| ROHM | Production | ||
| Toshiba | Production | ||
| Diodes Inc. | Production | ||
| Panjit | Production | ||
| Panjit | Production | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production |
