Circuit Protection  >  TVS Diodes

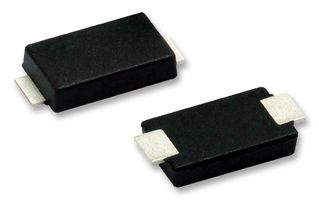

Diodes Inc. - SMAJ13CA-13-F

SMAJ13CA-13-F - Diodes Inc.

Tvs Diode, 400W, 13V, Bidir, Sma Rohs Compliant: Yes |Diodes Inc. SMAJ13CA-13-F

 Datasheets

Technical Details

Breakdown Voltage 15.15V
Case/Package SMA
China RoHS Non-Compliant
Clamping Voltage 21.5V
Composition Zener
Country of Origin Mainland China
Direction Bidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Height 2.3mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2000-07-16
Lead Free Lead Free
Leakage Current 5µA
Length 4.6mm
Lifecycle Status Production
Max Breakdown Voltage 15.9V
Max Operating Temperature 150°C
Max Power Dissipation 1W
Max Reverse Leakage Current 5µA
Max Surge Current 40A
Min Breakdown Voltage 14.4V
Min Operating Temperature -55°C
Mount Surface Mount
Number of Bidirectional Channels 1
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Packaging Cut Tape
Peak Pulse Current 18.6A
Peak Pulse Power 400W
Polarity Bidirectional
Power Dissipation 400W
Power Line Protection No
Power Rating 400W
Radiation Hardening No
REACH SVHC No
Reverse Breakdown Voltage 14.4V
Reverse Standoff Voltage 13V
RoHS Compliant
Schedule B 8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
Termination SMD/SMT
Test Current 1mA
Voltage Rating (DC) 13V
Width 2.92mm
Working Voltage 13V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

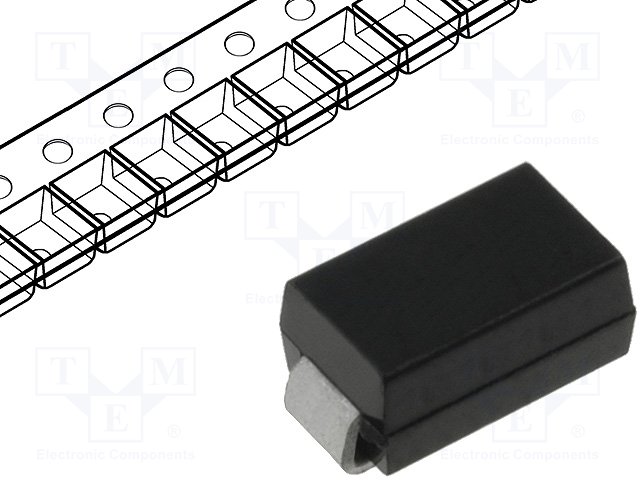

Diodes Inc. SMAJ13CA-13-F | TME

TME

Datasheets

 Avnet
 Verical
 Verical

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Diodes Inc.
SMAJ13CA-13
Obsolete
Diodes Inc.
SMAJ13CA
Production
Diodes Inc.
SMAJ13CAQ-13-F
Production
Diodes Inc.
SMAJ28CA-13
Obsolete
Diodes Inc.
SMAJ5.0CA-13
Obsolete
Diodes Inc.
SMAJ75CA-13
Obsolete
Diodes Inc.
SMAJ78CA-13
Obsolete
Diodes Inc.
SMAJ33CA
Production
Diotec
P4SMAJ16C
Production
Diotec
P4SMAJ36CA
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Avnet
SMAJ13CA-13-F
US: 5000
 $ 0.0524
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
SMAJ13CA-13-F
US: 5000
 $ 0.0735
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
SMAJ13CA-13-F
US: 189
 $ 0.0573 0.0573
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
SMAJ13CA-FDICT-ND
DE: 12842
 $ 0.3328 0.2244 0.2244 0.3328 0.0939 0.0939
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
SMAJ13CA-FDIDKR-ND
DE: 12842
 $ 0.3328 0.2244 0.2244 0.3328 0.0939 0.0939
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
SMAJ13CA-FDITR-ND
DE: 10000
 $ 0.0693
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
SMAJ13CA-13-F
PL: 656
 $ 0.318 0.2268 0.2268 0.1331 0.0826 0.069
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
3945797RL
DE: 15
 $ 0.1048 0.0766
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
3945797
DE: 15
 $ 0.2502 0.2502 0.1106 0.1048 0.0766
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
621-SMAJ13CA-13-F
US: 8271
 $ 0.32 0.213 0.213 0.094 0.089 0.065
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
SMAJ13CA-13-F
EU: 5000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
9029252
CA: 0
 $ 0.053
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
SMAJ13CA-13-F
US: 0
 $ 0.0562
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
3945797
SG: 15
 $ 0.2345 0.2345 0.104 0.0971 0.0751
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
3945797RL
SG: 15
 $ 0.0971 0.0751
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
SMAJ13CA-13-F
US: 0
 $ 0.219 0.138 0.097 0.092 0.092
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Component Stockers USA
SMAJ13CA-13-F
US: 70722
 $ 0.39 0.16 0.16 0.09 0.07 0.06
 Historical Pricing  Historical Stock Levels
Quantity
Location
Win Source
327520-SMAJ13CA-13-F
CN: 17790
 $ 0.0914 0.0712
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
SMAJ13CA-13-F
HK: 146271
 $ 0.0655 0.0655 0.0635 0.0601 0.0601
 Historical Pricing  Historical Stock Levels
Quantity
Location
GreenTree Electronics
SMAJ13CA-13-F
IL: 5000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
UnikeyIC
SMAJ13CA-13-F
SG: 4135
 $ 0.0848 0.0848 0.0848 0.0848 0.0604 0.0519
 Historical Pricing  Historical Stock Levels
Quantity
Location
LCSC
C134951
CN: 3250
 $ 0.1314 0.1079 0.1079 0.0874 0.0768
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chipsmall Limited
SMAJ13CA-13-F
CN: 68000
 $ 0.1386 0.0924 0.0924 0.0555 0.0462 0.0462
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
SMAJ13CA-13-F
HK: 22787
 $ 0.1043 0.0773 0.0773 0.0672 0.0628 0.0564
 Historical Pricing  Historical Stock Levels
Quantity
Location
Cytech Systems
SMAJ13CA-13-F
CN: 5000
 $ 0.528 0.4963 0.4963 0.4699 0.4435 0.4171
 Historical Pricing  Historical Stock Levels
Quantity
Location
Digi-ic_SMART PIONEER
SMAJ13CA-13-F
HK: 3838
 $ 0.45 0.45 0.45
 Historical Pricing  Historical Stock Levels
Quantity
Location
ALLICDATA ELECTRONICS
SMAJ13CA-13-F
HK: 1000
 $ 0.06 0.0582 0.0582 0.057 0.0558 0.054
 Historical Pricing  Historical Stock Levels
Quantity
Location
Quest
SMAJ13CA-13-F
US: 428
 $ 0.1848 0.1848 0.1386 0.1155 0.1155 0.1155
 Historical Pricing  Historical Stock Levels
Quantity
Location
ODG (Origin Data Global)
SMAJ13CA-13-F
CN: 82382
 $ 0.0504 0.0403
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
SMAJ13CA13F
US: 6300
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
SMAJ13CA-13-F
US: 1040
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Freelance Electronics
SMAJ13CA-13-F
US: 20
 $ 0.06 0.06 0.06 0.06 0.06 0.06
 Historical Pricing  Historical Stock Levels
Quantity
Location
XingHuan International
SMAJ13CA-13-F
CN: 60000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
SMAJ13CA-13-F
US: 12513
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
SMAJ13CA-13-F
US: 30000
 $ 0.1387
 Historical Pricing  Historical Stock Levels
Quantity
Location
