ZXT13P12DE6TA - Diodes Inc.

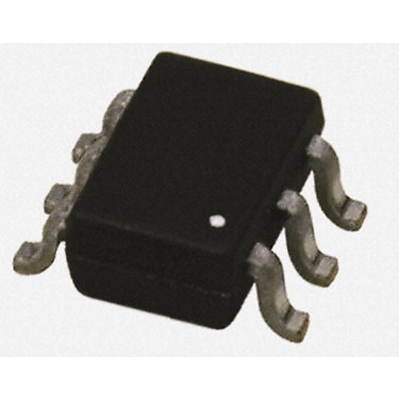

ZXT Series 12 V 4 A PNP Silicon Low Saturation Switching Transistor SOT-23-6
Technical Details
| Case/Package | SOT-23-6 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 20V |
| Collector Emitter Breakdown Voltage | 12V |
| Collector Emitter Saturation Voltage | -150mV |
| Collector Emitter Voltage (VCEO) | 12V |
| Continuous Collector Current | -4A |
| Current Rating | -4A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 7.5V |
| Frequency | 55MHz |
| Gain Bandwidth Product | 55MHz |
| Height | 1.3mm |
| hFE Min | 20 |
| Introduction Date | 2000-01-10 |
| Length | 3.1mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 12V |
| Max Collector Current | 4A |
| Max Frequency | 55MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1.1W |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Packaging | Cut Tape |
| Polarity | PNP |
| Power Dissipation | 1.7W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 55MHz |
| Voltage Rating (DC) | -12V |
| Weight | 14.996898mg |
| Width | 1.8mm |
