DLW21SN670SQ2L - Murata

Common Mode Chokes Dual 67Ohm 100MHz 400mA 250mOhm DCR SMD Embossed T/R

Technical Details

Case/Package	0805
Core Material	Ferrite
Current	400mA
Current Rating	400mA
DC Current	400mA
DC Resistance (DCR)	250mR
DC Resistance-Max	250mR
Depth	1.4mm
Height	0.055inch
Impedance	67R
Length	2mm
Max DC Current	400mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Lines	2
Package Quantity	1
Packaging	Tape and Reel
RMS Current (Irms)	400mA
RoHS Compliant	Yes
Series	EMIFIL®, DLW21S
Series Resistance	250mR
Shielding	Unshielded
Termination	SMD/SMT
Test Frequency	100MHz
Tolerance	25%
Voltage Rating	50V
Voltage Rating (DC)	50V
Weight	0.000388oz
Width	0.047inch

Compliance

RoHS : Compliant

Images

Murata DLW21SN670SQ2L | Verical

Verical

Murata DLW21SN670SQ2L | Future Electronics

Future Electronics

Murata DLW21SN670SQ2L | Rs

Rs

Datasheets

Digikey

DLW21SN670SQ2L datasheet (pdf, 36.7 KB)

DLW21SN670SQ2L datasheet (pdf, 36.7 KB)

DLW21SN670SQ2L datasheet (pdf, 36.7 KB)

Mouser

DLW21SN670SQ2L datasheet (pdf, 1.5 MB)

Lifecycle Status Indicator

Volume Production

Loading indicators

Symbol

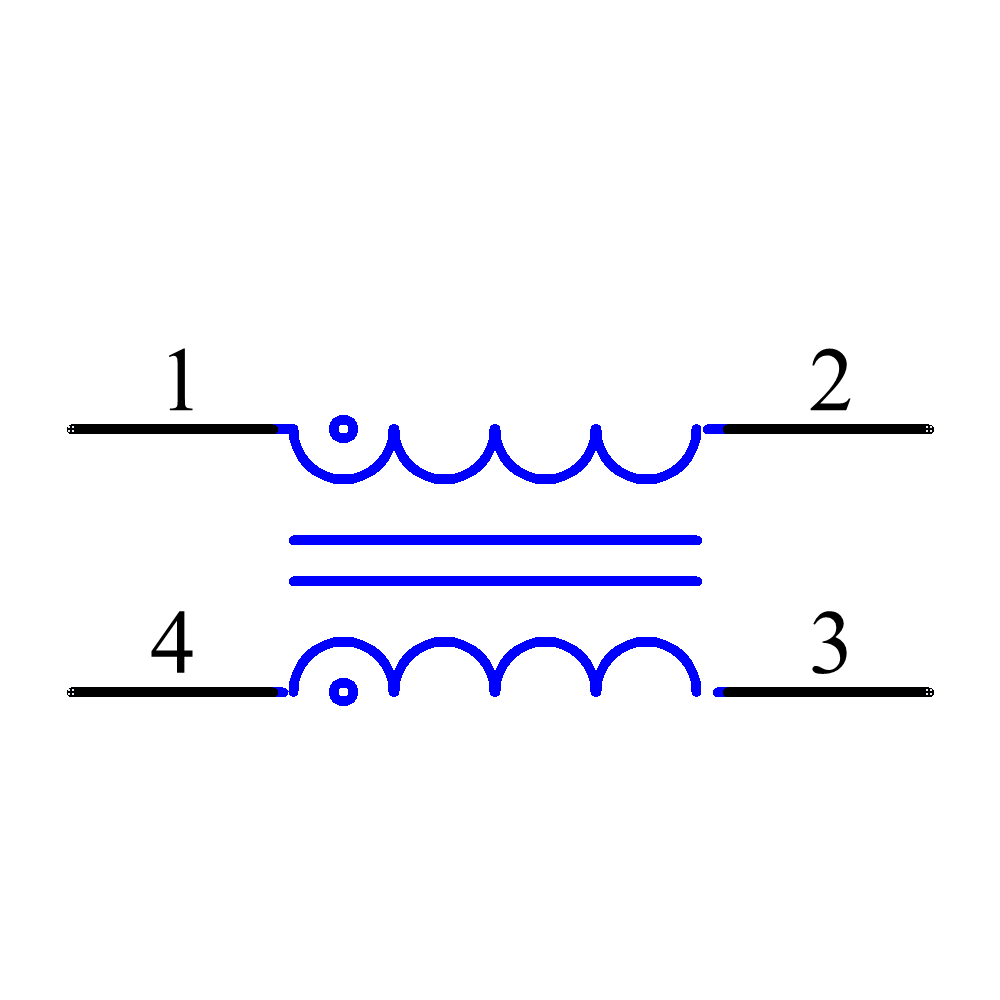

DLW21SN670SQ2L Symbol - Murata

Footprint

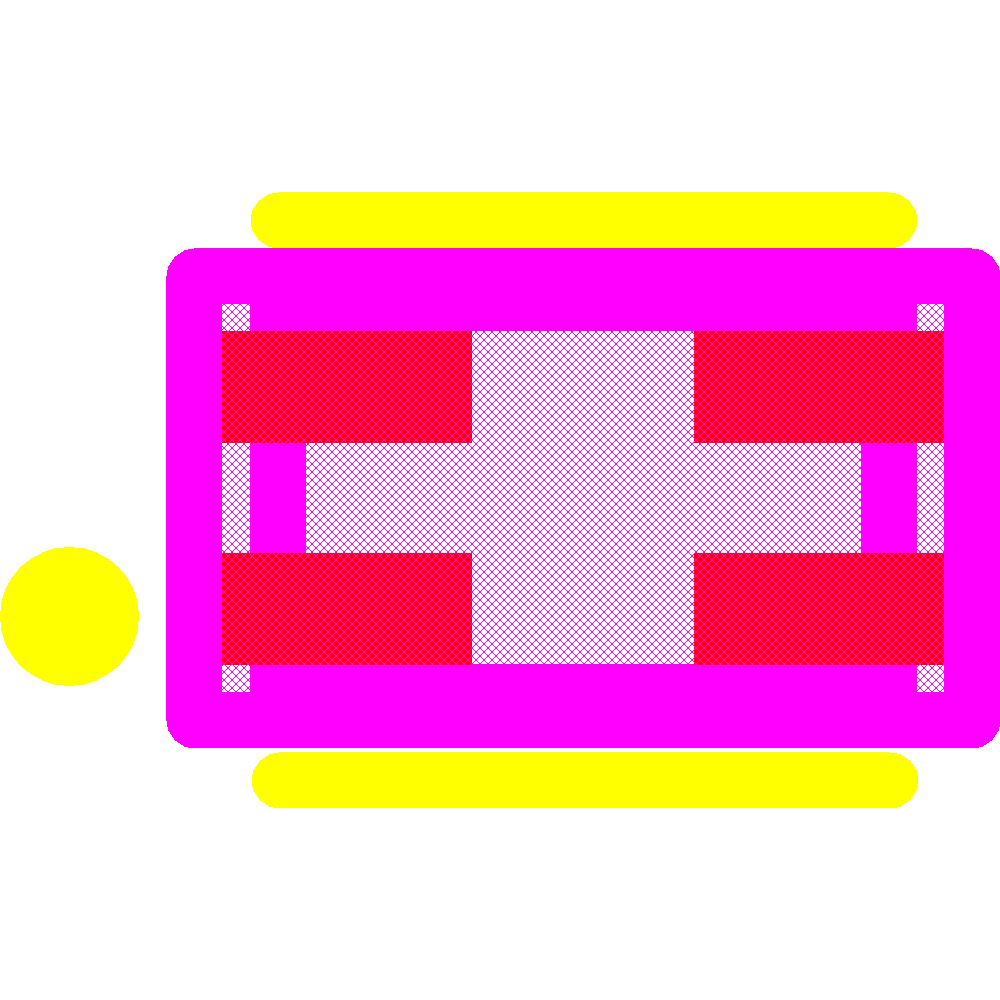

DLW21SN670SQ2L Footprint - Murata
