DLW43SH101XK2L - Murata

Ind Common Mode Choke Wirewound 100uH -30% to 50% 1MHz 200mA 1812 Embossed Plastic T/R

Technical Details

Case Code (Imperial)	1812
Case Code (Metric)	4532
Case/Package	1812
Current	200mA
Current Rating	200mA
DC Current	200mA
DC Resistance (DCR)	2R
DC Resistance-Max	2R
Depth	3.4mm
Height	2.6mm
Inductance	100uH
Lead Free	Lead Free
Length	4.5mm
Max Current Rating	200mA
Max DC Current	200mA
Max Operating Temperature	125°C
Military Standard	Not
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Lines	2
Package Quantity	1
Packaging	Tape and Reel
Radiation Hardening	No
Ratings	AEC-Q200
Reach SVHC Compliant	No
RMS Current (Irms)	200mA
RoHS Compliant	Yes
Series	DLW43S
Series Resistance	2R
Shielding	Unshielded
Termination	SMD/SMT
Test Frequency	1MHz
Tolerance	50%
Voltage Rating	50V
Voltage Rating (DC)	50V
Weight	0.005997oz
Width	0.126inch

Compliance

RoHS : Compliant

Radiation Hardening : No

Images

Murata DLW43SH101XK2L | Verical

Verical

Murata DLW43SH101XK2L | Rs

Rs

Murata DLW43SH101XK2L | Distrelec

Distrelec

Murata DLW43SH101XK2L | Digikey

Digikey

Datasheets

Verical

DLW43SH101XK2L datasheet (pdf, 64.2 KB)

Digikey

DLW43SH101XK2L datasheet (pdf, 64.2 KB)

DLW43SH101XK2L datasheet (pdf, 64.2 KB)

Avnet

DLW43SH101XK2L datasheet (pdf, 64.2 KB)

Lifecycle Status Indicator

Volume Production

Loading indicators

Symbol

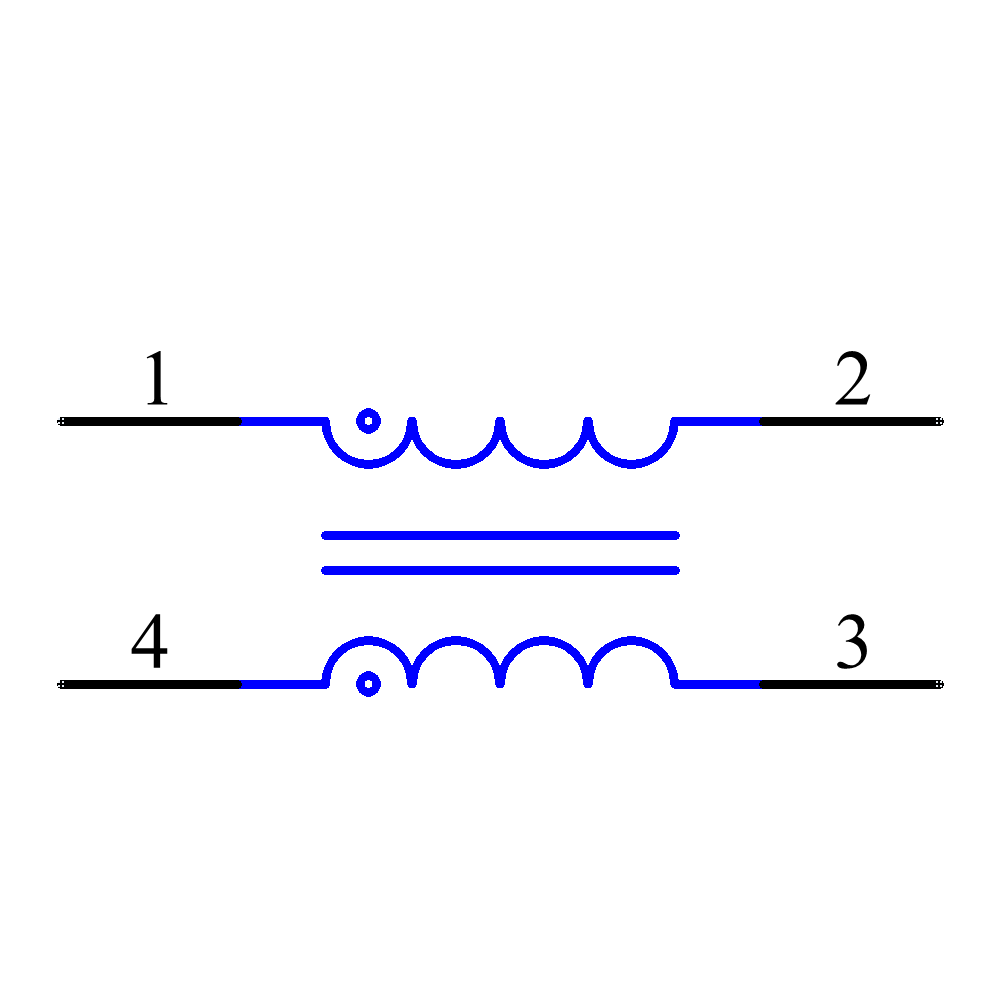

DLW43SH101XK2L Symbol - Murata

Footprint

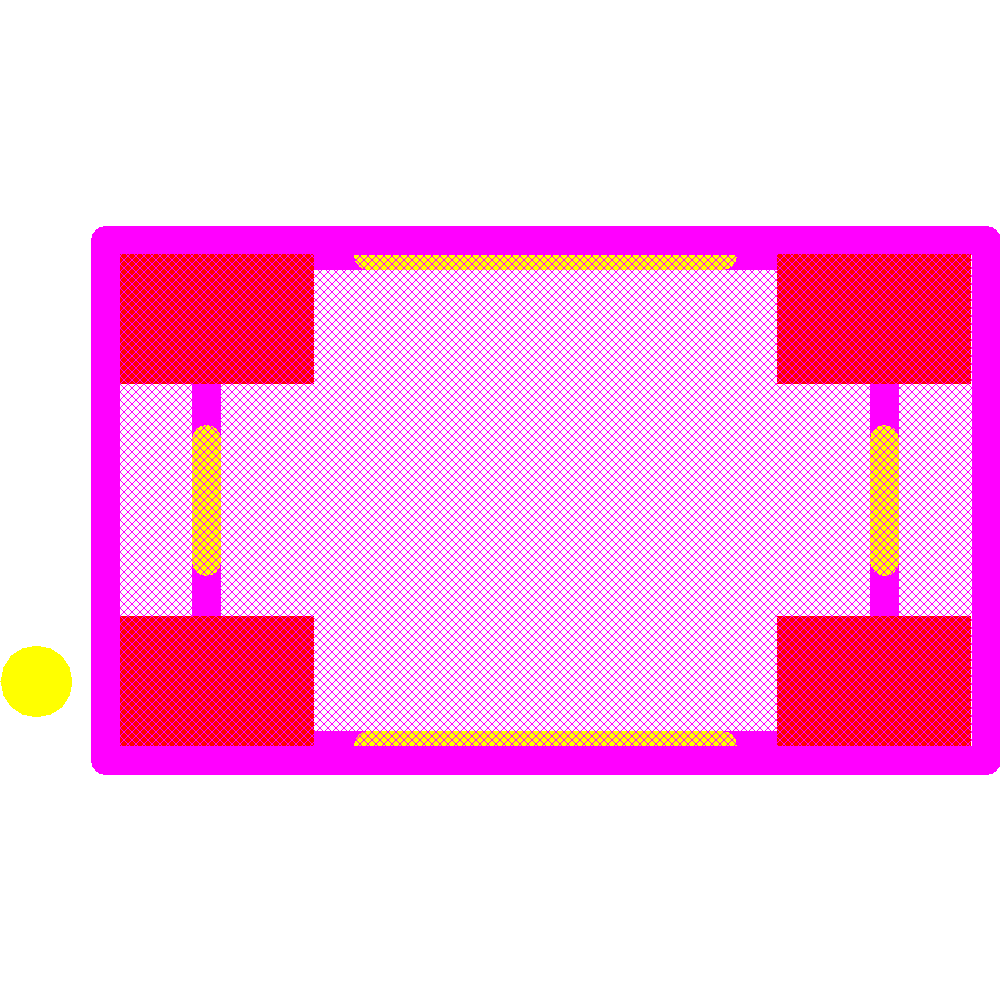

DLW43SH101XK2L Footprint - Murata
