Technical Details
| Case/Package | SMD/SMT |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 200mV |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 160% |
| Fall Time | 18000ns |
| Forward Current | 50mA |
| Forward Voltage | 1.4V |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage (DC) | 6V |
| Rise Time | 18000ns |
| RoHS Compliant | Yes |
| Weight | 0g |
Compliance
RoHS : Compliant
Radiation Hardening : No

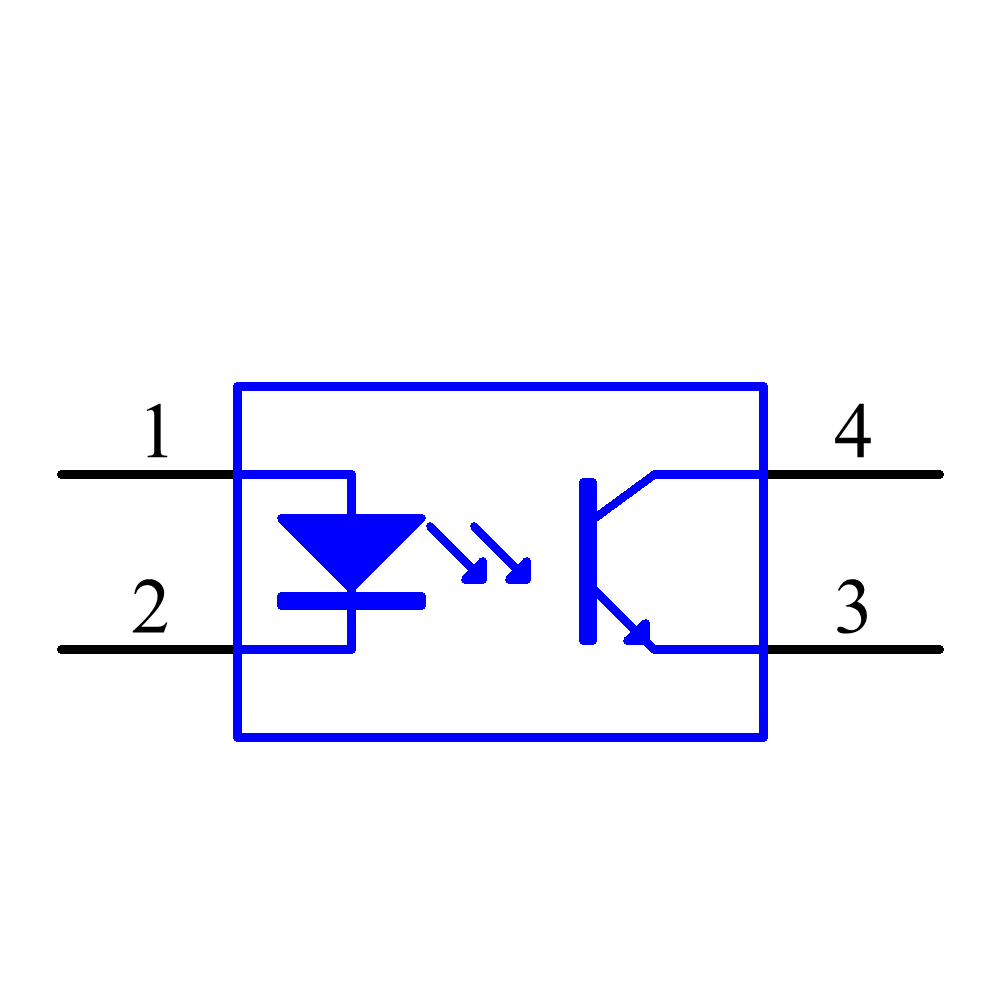

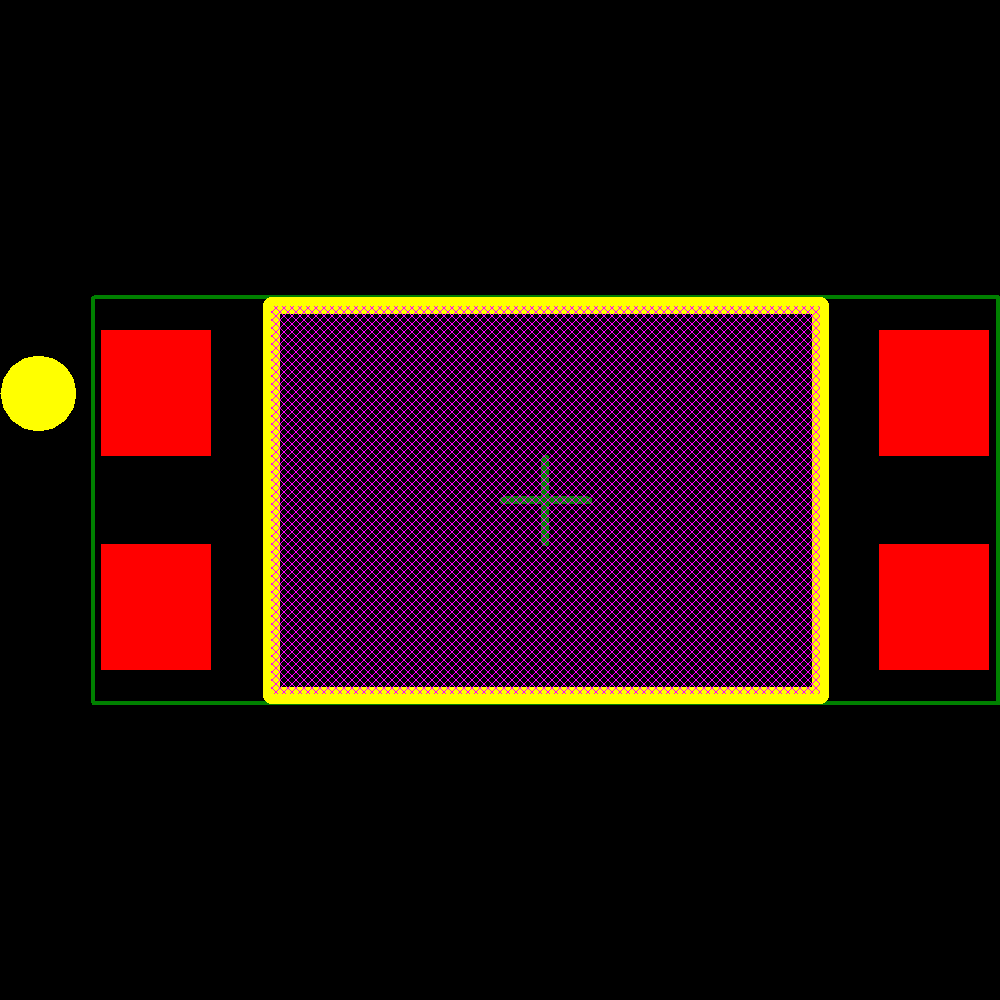

Images
Verical
Rs
Distrelec
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay Lite-On | Volume Production | ||
| Vishay Lite-On | Volume Production | ||
| Vishay Lite-On | Volume Production | ||
| Vishay Lite-On | Volume Production | ||
| Sharp | Obsolete | ||
| Sharp | Not Recommended for New Design | ||
| Sharp | Volume Production | ||
| Sharp | Not Recommended for New Design | ||
| California Eastern Labs | Volume Production | ||
| Vishay Semiconductors | Volume Production |
