09551666811741 - HARTING Elektronik
Conn D-Subminiature M 9 POS 2.76mm Solder RA SMD 9 Terminal 1 Port T/R
Technical Details
| Body Material | Metal |
| Body Plating | Nickel |
| China RoHS | Compliant |
| Color | Black |
| Connector Type | D-Sub |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Country of Origin | Vietnam |
| Dielectric Material | Liquid Crystal Polymer |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Material | Polymer |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.30 |
| Introduction Date | 2007-01-26 |
| Lifecycle Status | Production |
| Material | Steel |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 9 |
| Number of Pins | 9 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Shell Finish | Nickel |
| Shell Material | Steel |
| Termination | Solder |
| Working Voltage | 250V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

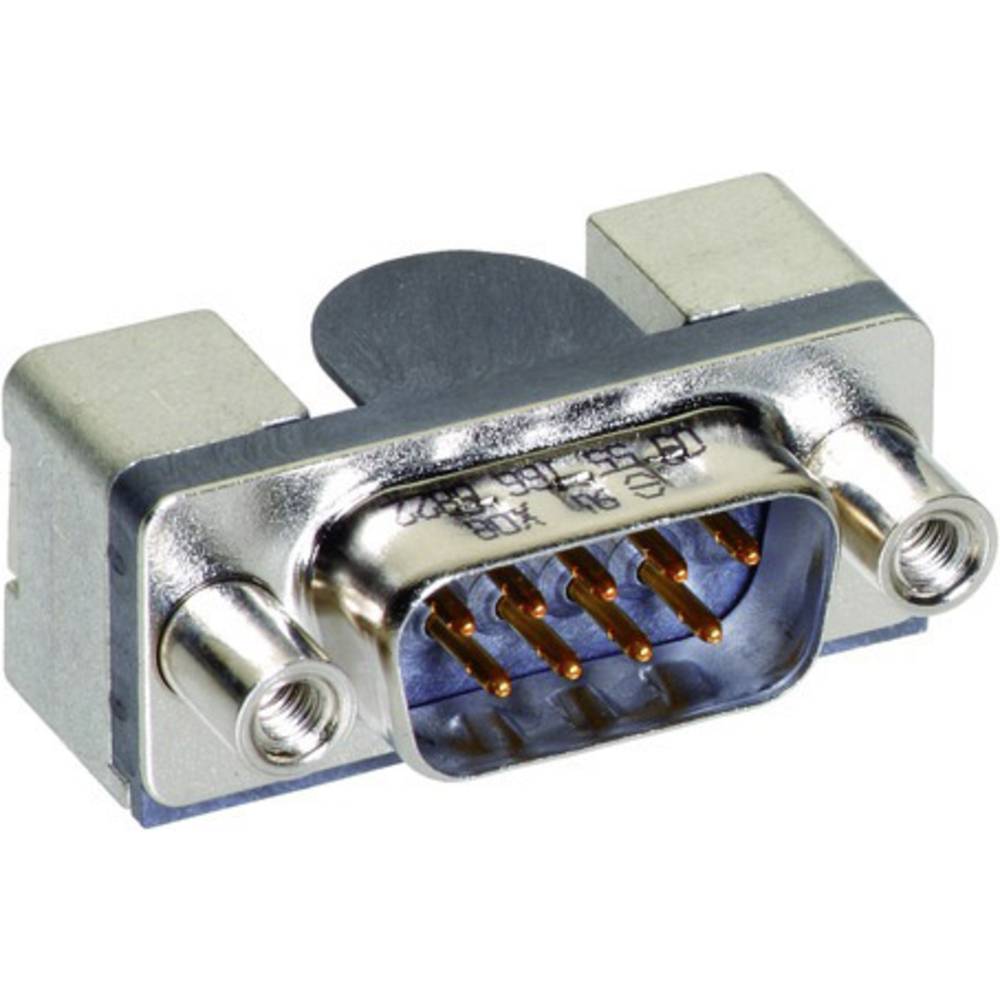

Images
