BAS7004WH6327XTSA1 - Infineon
Infineon 70V 70mA, Rectifier & Schottky Diode, SOT-323 BAS7004WH6327XTSA1
Technical Details
| Average Rectified Current | 70mA |
| Capacitance | 2pF |
| Case/Package | SOT |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Dual |
| Forward Current | 70mA |
| Forward Voltage | 1V |
| Halogen Free | Halogen Free |
| Height | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.60 |
| Introduction Date | 1993-08-01 |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Max Forward Surge Current (Ifsm) | 100mA |
| Max Operating Temperature | 125°C |
| Max Output Current | 70mA |
| Max Power Dissipation | 250mW |
| Max Repetitive Reverse Voltage (Vrrm) | 70V |
| Max Reverse Voltage (DC) | 70V |
| Min Breakdown Voltage | 70V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Package Quantity | 3000 |
| Packaging | Tape & Reel |
| Peak Non-Repetitive Surge Current | 100mA |
| Peak Reverse Current | 100nA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Recovery Time | 100ps |
| Reverse Standoff Voltage | 50V |
| Reverse Voltage | 70V |
| RoHS | Compliant |
| Schedule B | 8541100070, 8541100070|8541100070, 8541100070|8541100070|8541100070, 8541100070|8541100070|8541100070|8541100070 |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

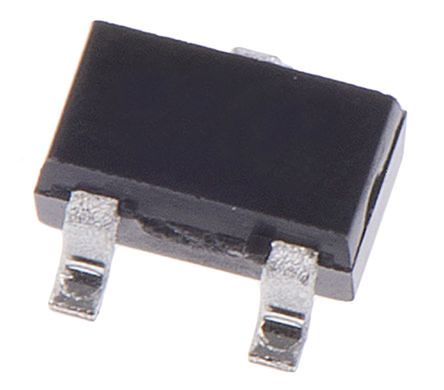

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| STMicroelectronics | Production | ||
| Diodes Inc. | Production | ||
| onsemi | Production | ||
| Nexperia | Production | ||
| Nexperia | Production | ||
| MCC | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production |
