BAT6406WH6327XTSA1 - Infineon
SILICON SCHOTTKY DIODE Rectifier Diode, Schottky, 2 Element, 0.25A, 40V V(RRM), Silicon
Technical Details
| Average Rectified Current | 120mA |
| Capacitance | 6pF |
| Case/Package | SOT |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |

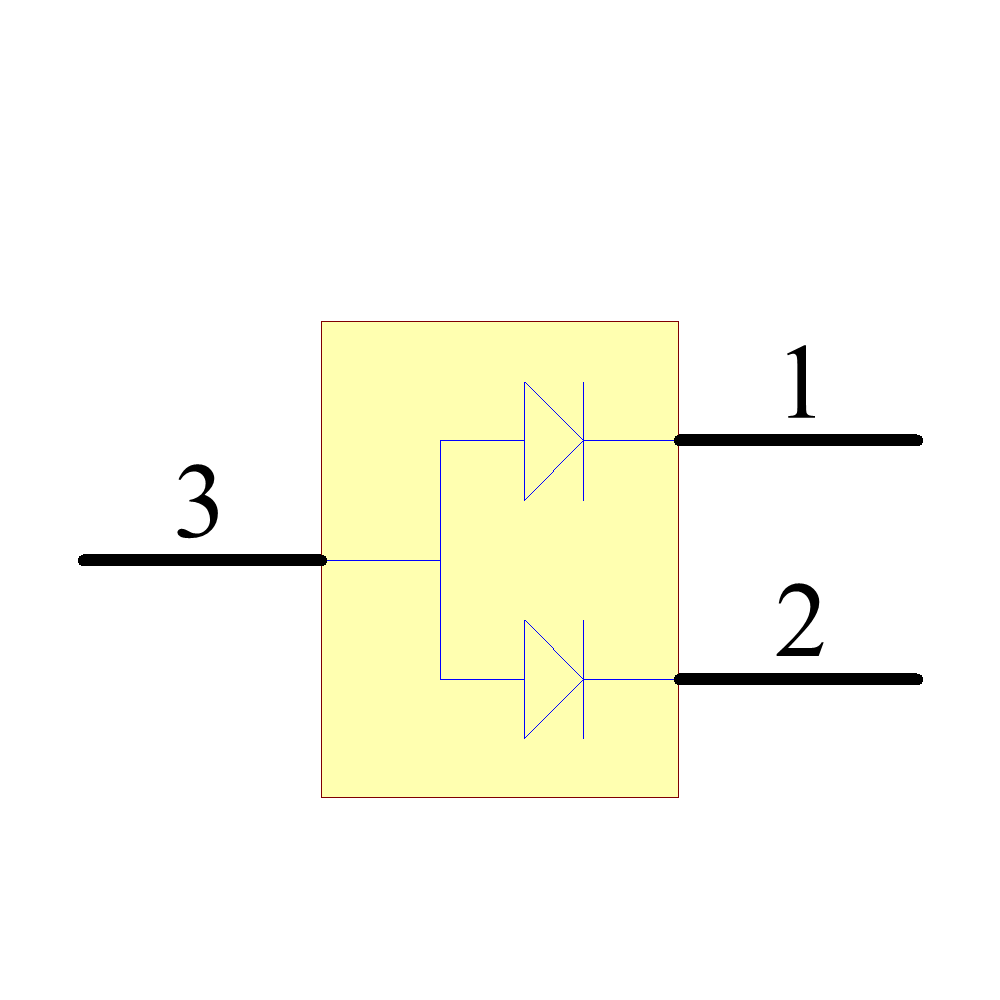

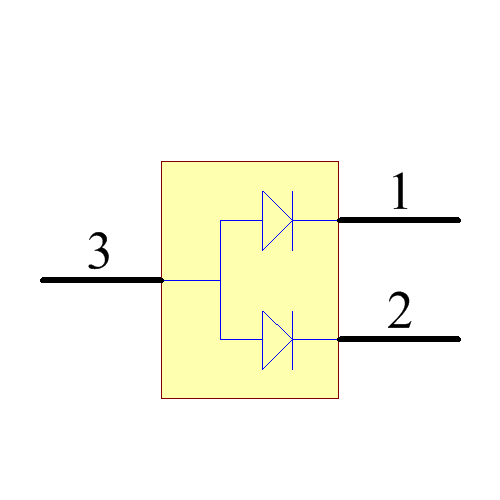

| Element Configuration | Common Anode |
| Forward Current | 250mA |
| Forward Voltage | 750mV |
| Halogen Free | Halogen Free |
| Height | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.70 |
| Introduction Date | 1998-11-01 |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Max Forward Surge Current (Ifsm) | 800mA |
| Max Operating Temperature | 150°C |
| Max Output Current | 120mA |
| Max Power Dissipation | 250mW |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Voltage (DC) | 40V |
| Min Breakdown Voltage | 40V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Package Quantity | 3000 |
| Packaging | Tape & Reel |
| Peak Non-Repetitive Surge Current | 800mA |
| Peak Reverse Current | 2µA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Recovery Time | 5ns |
| Reverse Standoff Voltage | 30V |
| Reverse Voltage | 40V |
| RoHS | Compliant |
| Schedule B | 8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070 |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

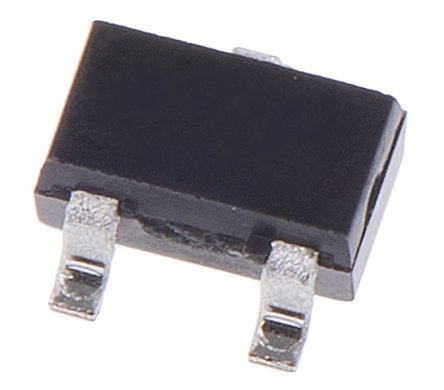

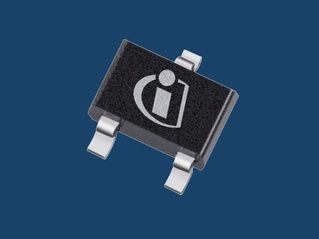

Images
