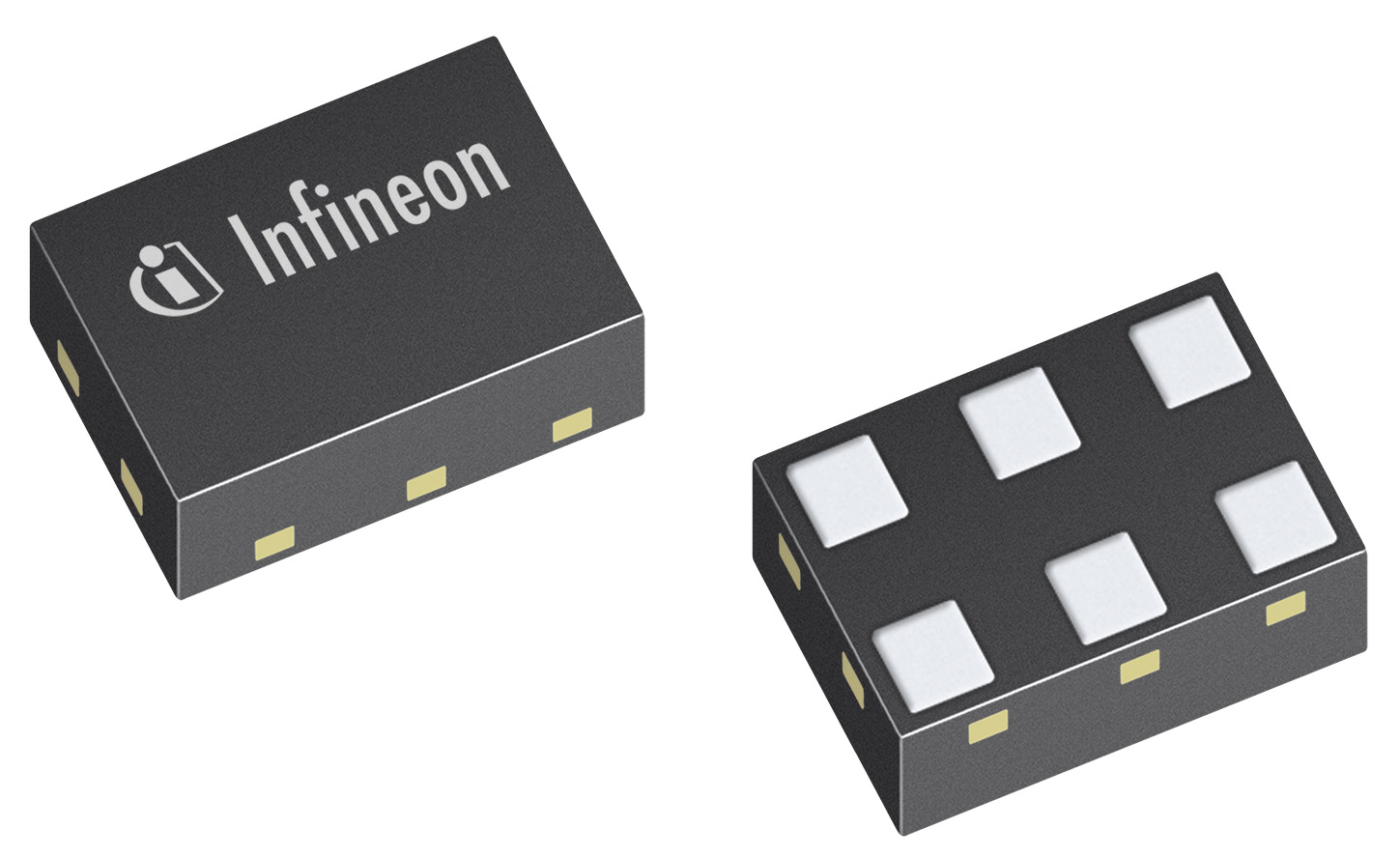

BGA524N6E6327XTSA1 - Infineon
RF Amplifier; INFINEON; BGA524N6E6327XTSA1; 19.6 dB; 400 µm; Lead Free; 1.615 GHz
Technical Details
| Ambient Temperature Range High | 85°C |
| Bandwidth | 75MHz |
| China RoHS | Compliant |
| Current | 2.5mA |
| Frequency | 1.615GHz |
| Gain | 18.4dB |
| Halogen Free | Halogen Free |
| Height | 400µm |
| Height - Seated (Max) | 400µm |
| Impedance | 50Ω |
| Introduction Date | 2014-01-24 |
| Lead Free | Lead Free |
| Length | 1.1mm |
| Lifecycle Status | Obsolete |
| Max Frequency | 1.615GHz |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 60mW |
| Max Supply Current | 3.6mA |
| Max Supply Voltage | 3.3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Noise Figure | 0.55dB |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Operating Supply Current | 2.5mA |
| Operating Supply Voltage | 1.8V |
| P1dB | -16dBm |
| Package Quantity | 15000 |
| Packaging | Tape & Reel |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542330000, 8542330000|8542330000|8542330000|8542330000|8542330000 |
| Terminal Pitch | 400µm |
| Test Frequency | 1.615GHz |
| Width | 700µm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
