CY7C1470BV33-200BZXI - Infineon
Synchronous SRAM, NoBL, Pipeline, 73728 Kb Density, 200 MHz Frequency, FBGA-165, RoHS
Technical Details
| Access Time | 3ns |
| Address Bus Width | 21b |
| Ambient Temperature Range High | 85°C |
| Case/Package | FBGA |
| China RoHS | Compliant |
| Density | 72Mb |
| Export Control Classification Number (ECCN) Code | 3A991.B.2.A |
| Frequency | 200MHz |
| Height | 1.4mm |
| Height - Seated (Max) | 1.4mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.41 |
| Interface | Parallel |
| Introduction Date | 2008-02-29 |
| Length | 17mm |
| Lifecycle Status | Production |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 500mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 9MB |
| Memory Type | SRAM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Nominal Supply Current | 500mA |
| Number of Circuits | 1 |
| Number of Pins | 165 |
| Number of Ports | 4 |
| Number of Terminals | 165 |
| Operating Supply Voltage | 3.3V |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sync/Async | Synchronous |
| Temperature Grade | Industrial |
| Terminal Pitch | 1mm |
| Width | 15mm |
| Word Size | 36b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

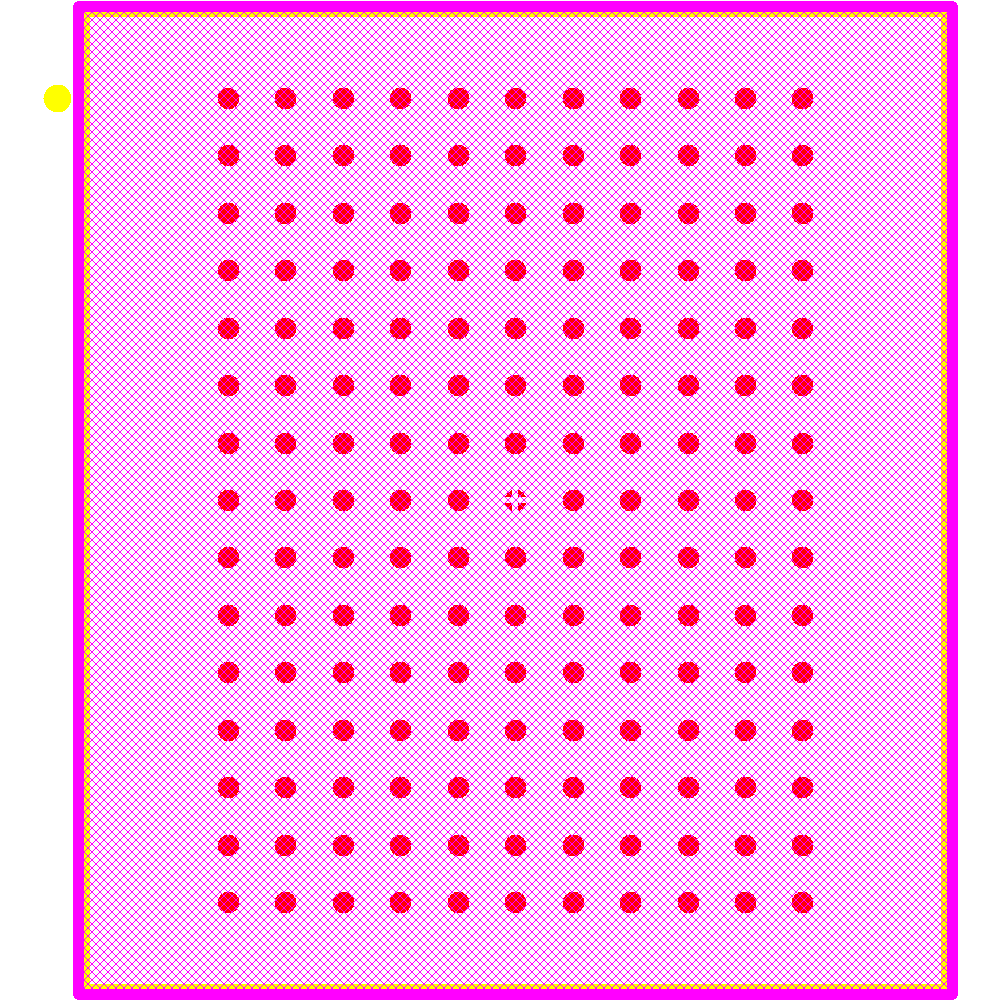

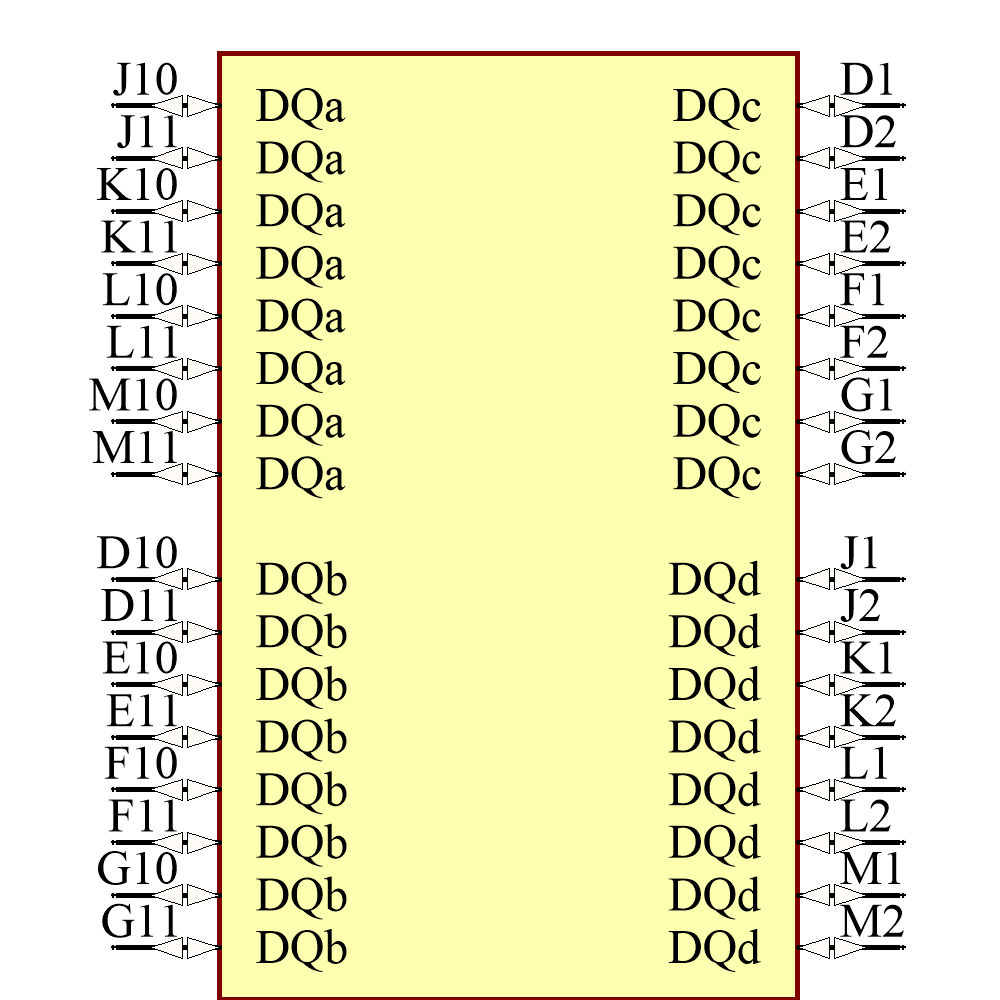

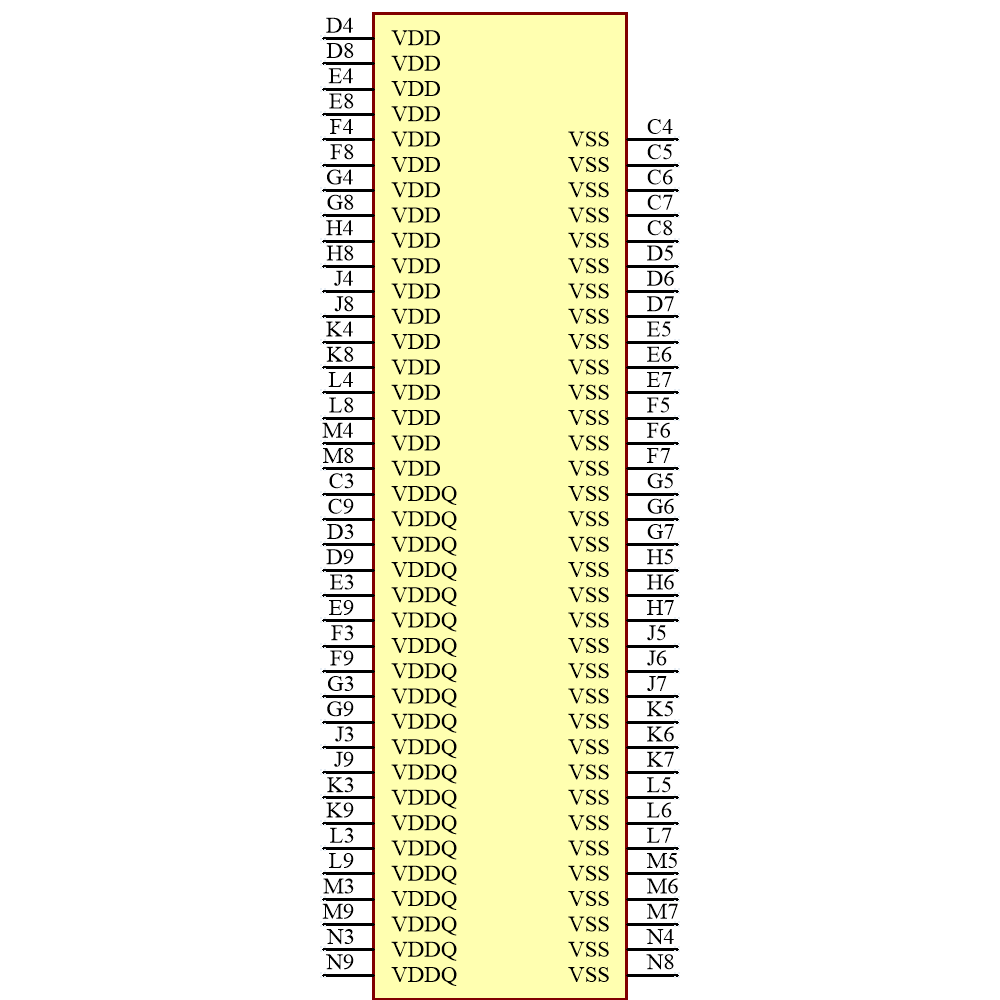

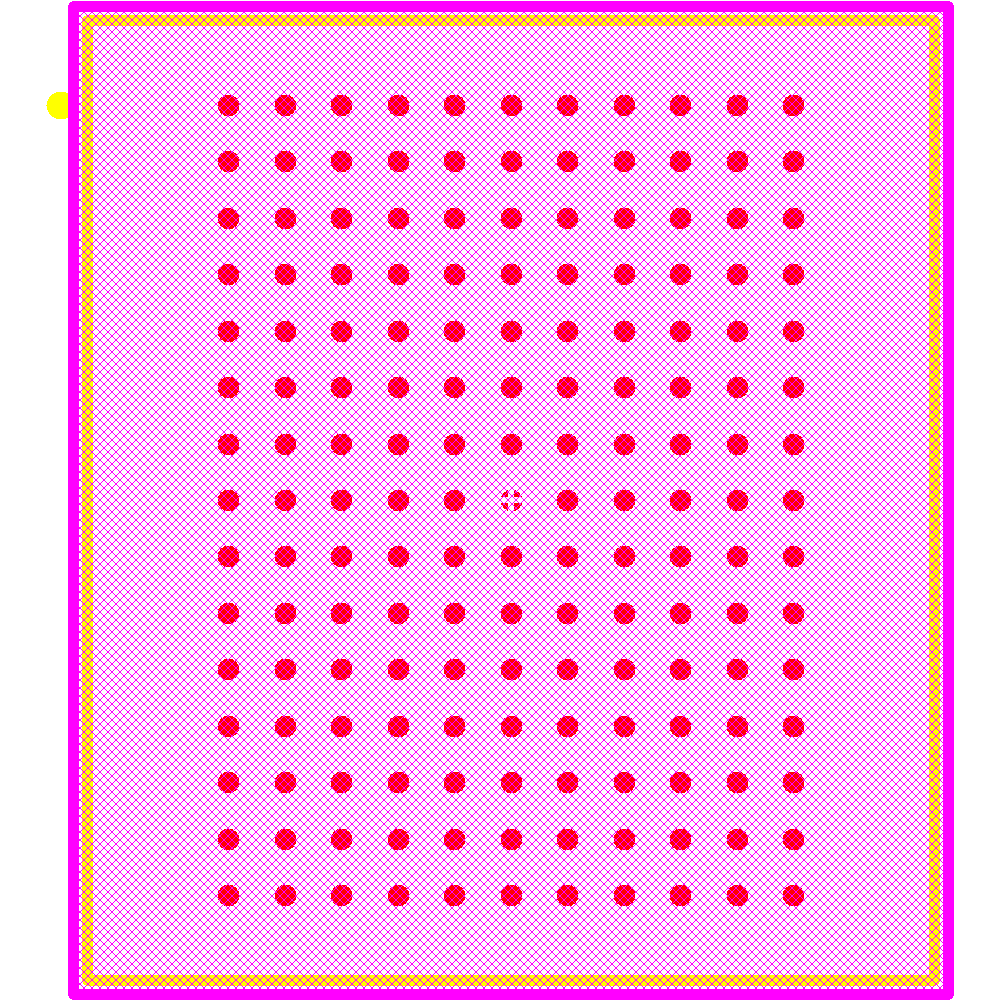

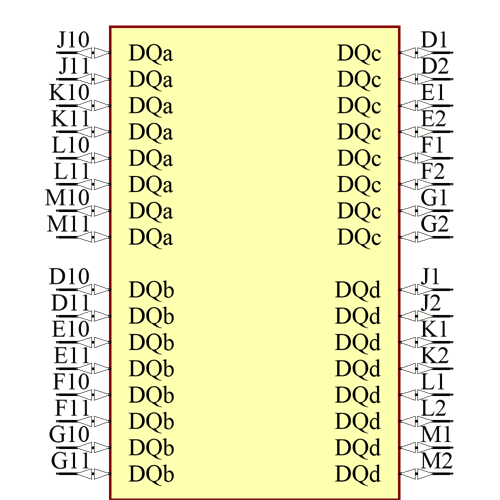

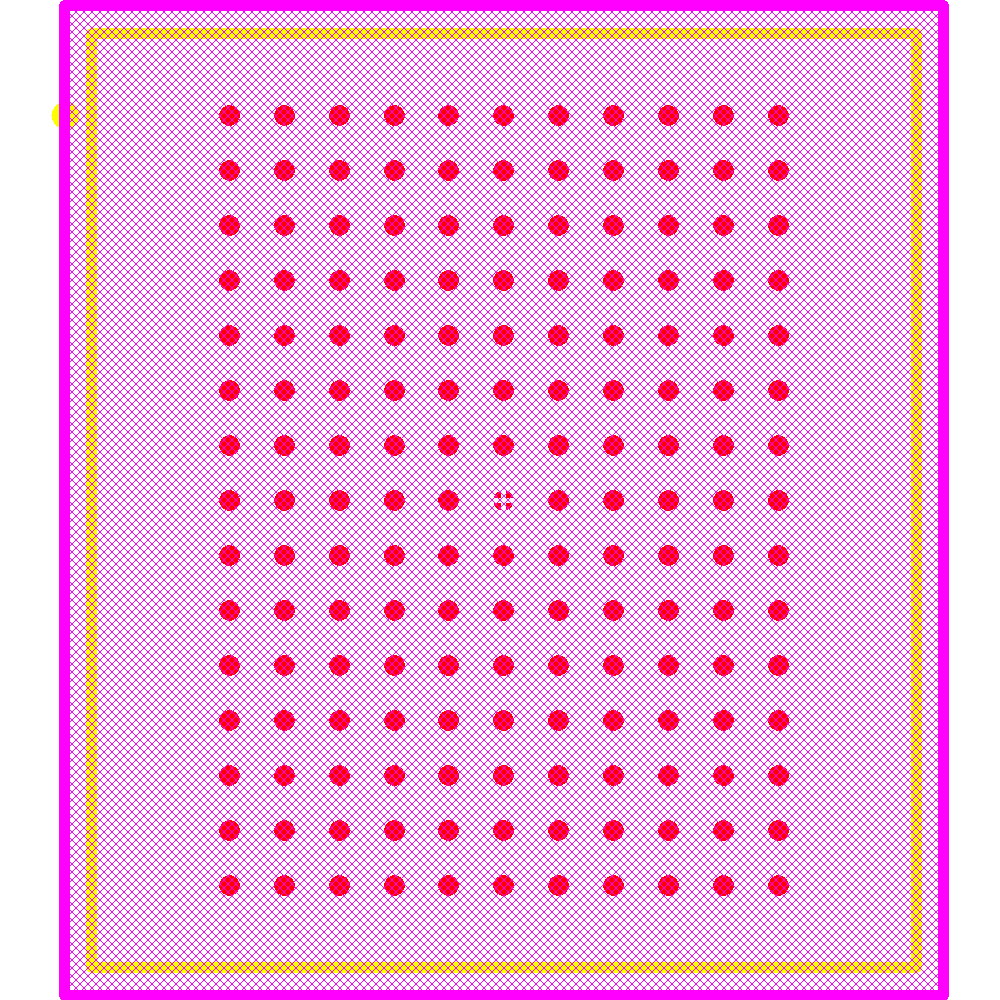

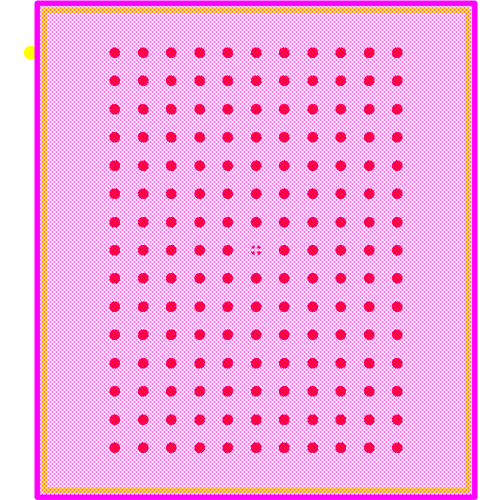

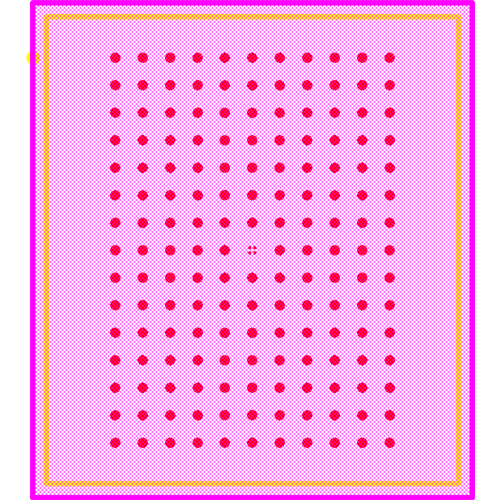

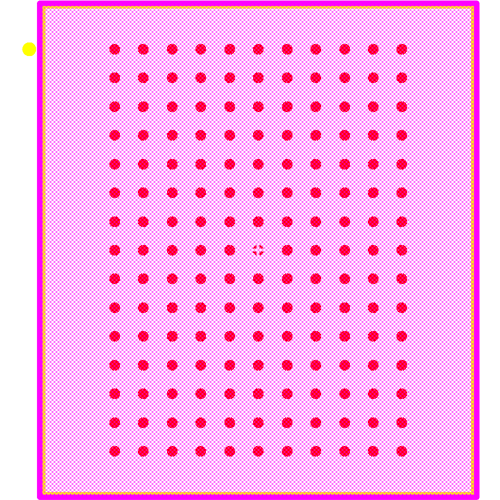

Images
