ISO7420FEDR - Texas Instruments
TEXAS INSTRUMENTS ISO7420FEDR Digital Isolator, 2 Channel, 11 ns, 3.3 V, 5 V, SOIC, 8 Pins
Technical Details
| Case/Package | SOIC |
| Channel Type | Unidirectional |
| Data Rate | 50Mbps |
| Isolated Power | No |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 3.3V |
| Number of Channels | 2 |
| Number of Pins | 8 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Propagation Delay | 11ns |
| Pulse Width Distortion (PWD) | 3ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 9mA |
| Turn-On Delay Time | 7ns |
| Type | General Purpose |
Compliance
RoHS : Compliant
Radiation Hardening : No

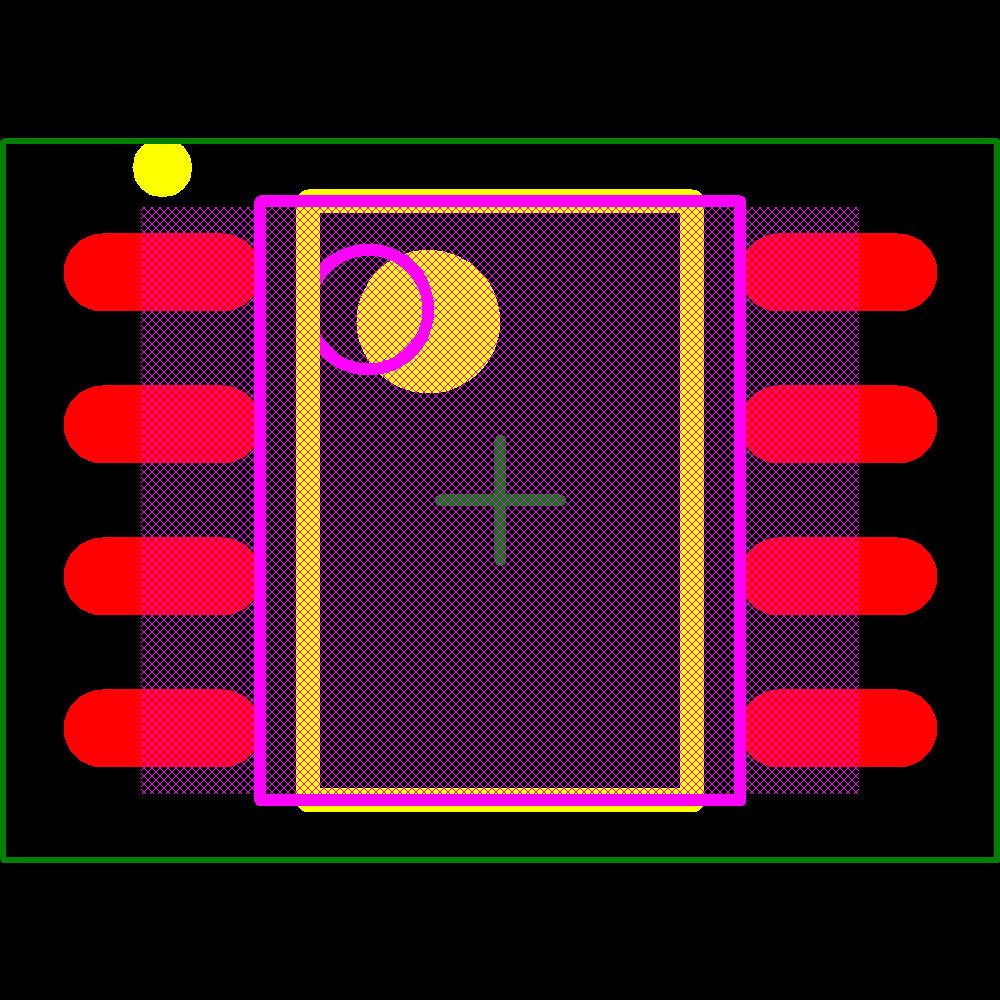

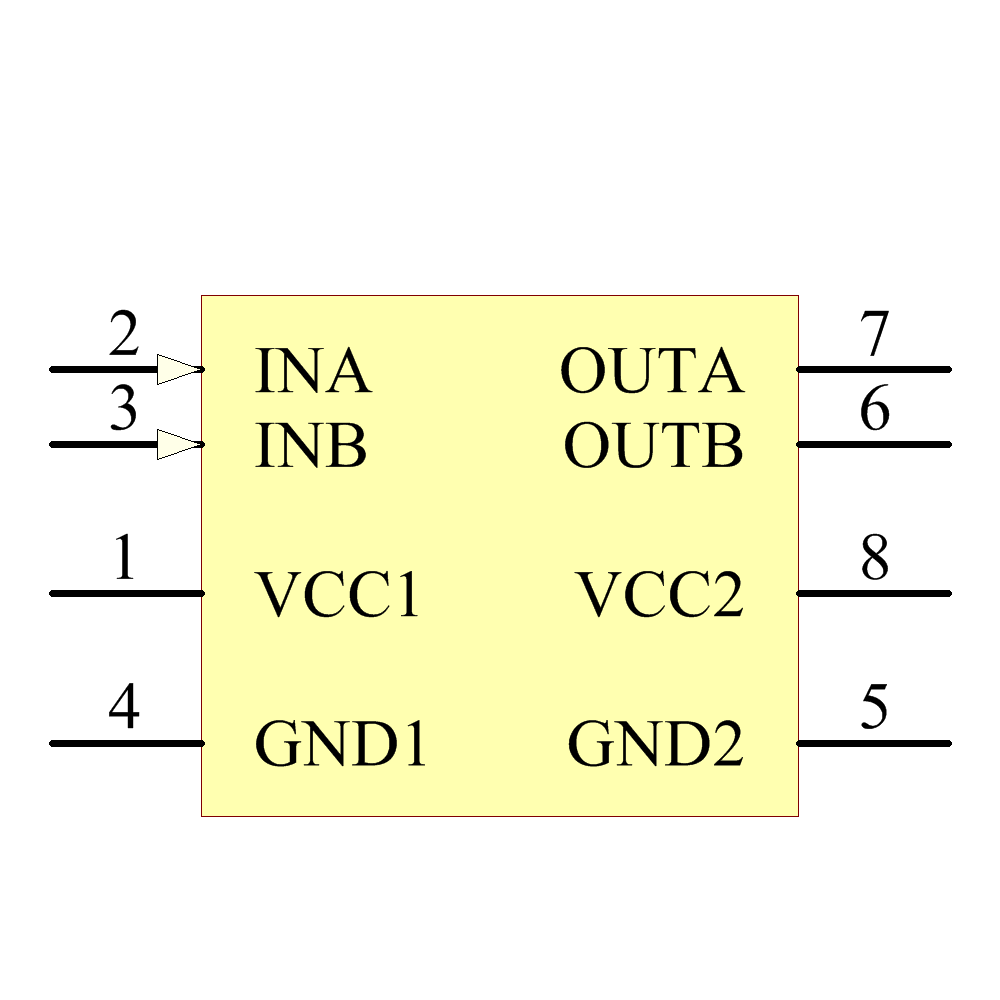

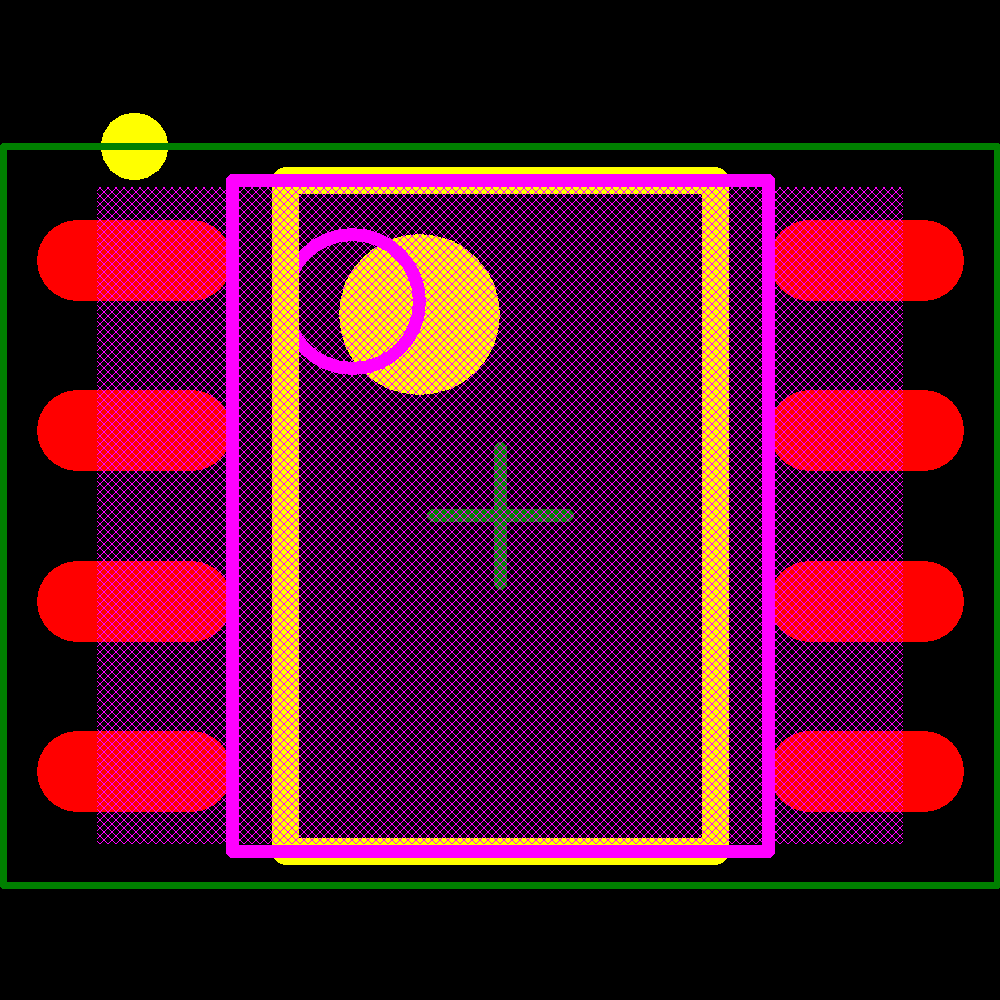

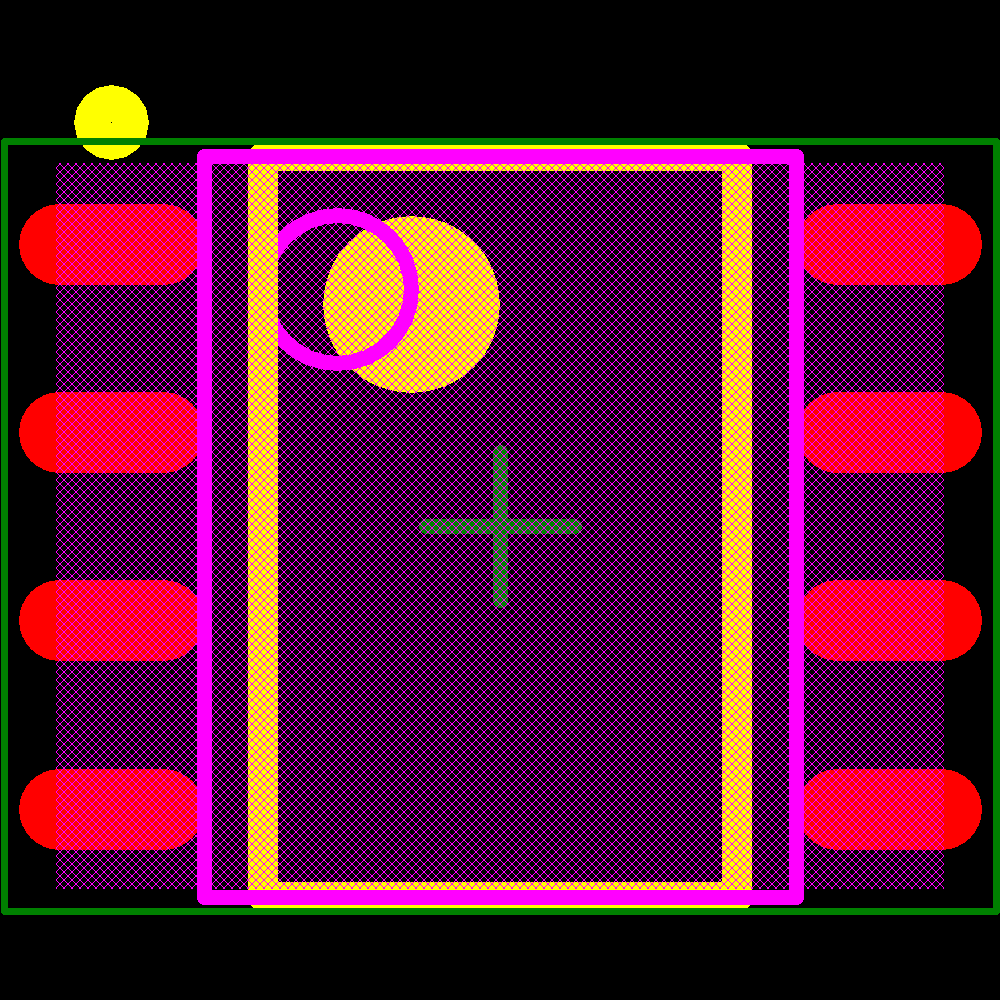

Images
Mouser
Newark
Element14
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Volume Production | ||
| Texas Instruments | Volume Production | ||
| STMicroelectronics | Volume Production | ||
| STMicroelectronics | Volume Production | ||
| STMicroelectronics | End of Life | ||
| ON Semiconductor / Fairchild | Obsolete | ||
| Texas Instruments | Volume Production | ||
| Rohm | Volume Production | ||
| Recom | Volume Production | ||
| Texas Instruments | Obsolete |
