IS64WV12816DBLL-12CTLA3-TR - ISSI
SRAM Chip Async Single 2.5V/3.3V 2M-bit 128K x 16 12ns Automotive 44-Pin TSOP-II T/R
Technical Details
| Access Time | 12ns |
| Address Bus Width | 17b |
| Case/Package | TSOP |
| China RoHS | Compliant |
| Density | 2Mb |
| Height - Seated (Max) | 1.2mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 18.41mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Max Supply Current | 75mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 256kB |
| Memory Type | RAM, SRAM - Asynchronous |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.4V |
| Nominal Supply Current | 60mA |
| Number of Circuits | 1 |
| Number of Pins | 44 |
| Number of Ports | 1 |
| Number of Terminals | 44 |
| Number of Words | 128000 |
| Operating Supply Voltage | 3V |
| Packaging | Tape & Reel |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542320040 |
| Sync/Async | Asynchronous |
| Temperature Grade | Automotive |
| Terminal Pitch | 800µm |
| Width | 10.16mm |
| Word Size | 16b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

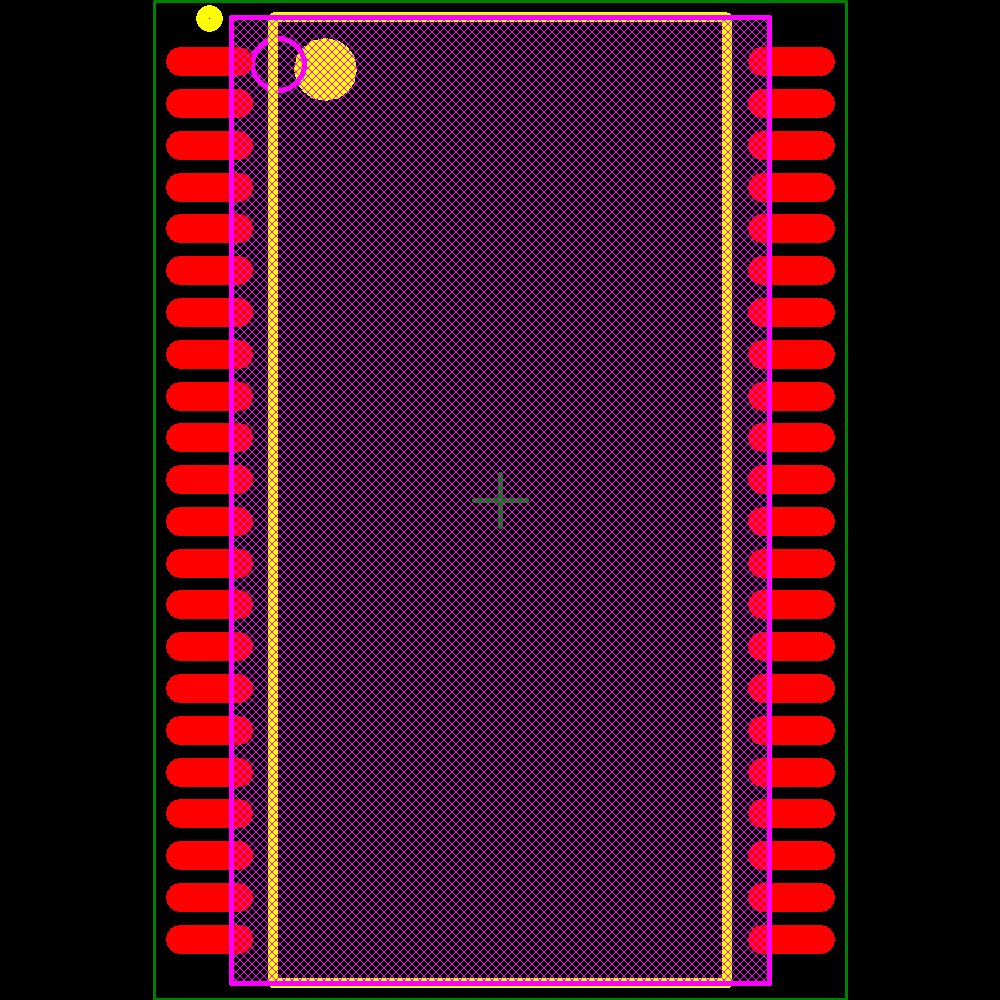

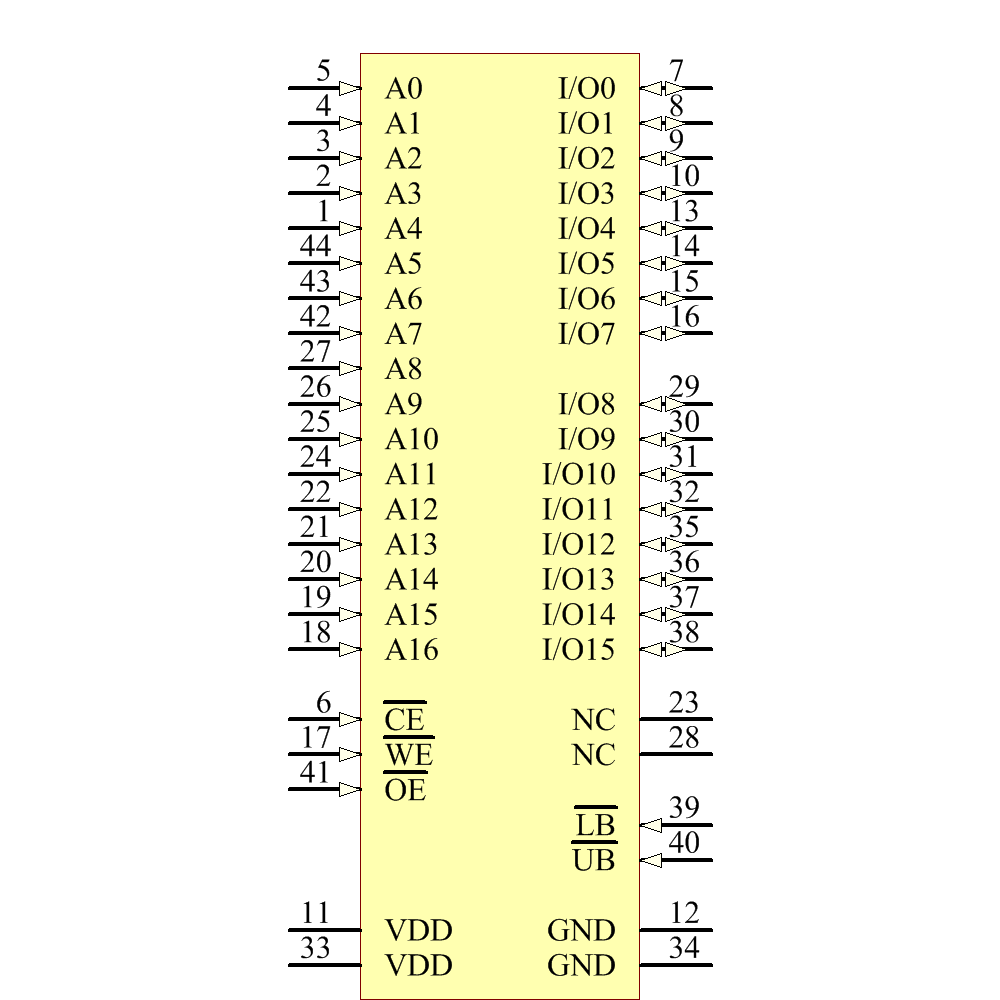

Images
