06035C561KAT2A - KYOCERA AVX
0603 560 pF 50 V ±10 % Tolerance X7R Surface Mount Multilayer Ceramic Capacitor
Technical Details
| Capacitance | 560pF |
| Case/Package | 0603 |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Depth | 810µm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 2.5% |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 860µm |
| Harmonized Tariff Schedule (HTS) Code | 8532.24.00.20 |
| Introduction Date | 1996-08-01 |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8532240020 |
| Termination | SMD/SMT |
| Thickness | 889µm |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Voltage Rating (DC) | 50V |
| Width | 810µm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images

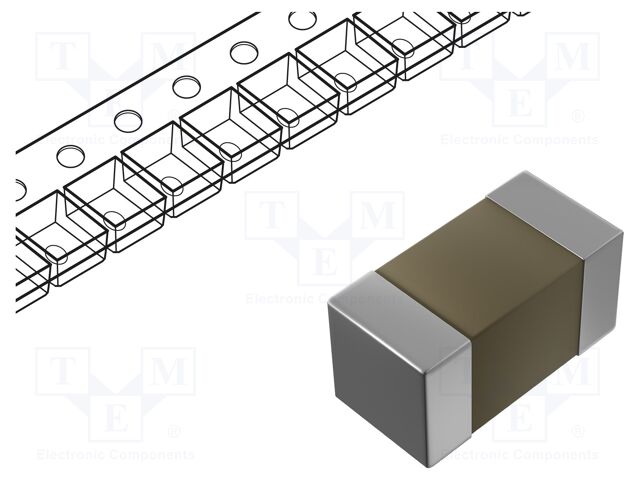

TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| KYOCERA AVX | Obsolete | ||
| KYOCERA AVX | Production | ||
| KYOCERA AVX | Obsolete | ||
| KYOCERA AVX | Production | ||
| KYOCERA AVX | Production | ||
| KYOCERA AVX | Production | ||
| KYOCERA AVX | Production | ||
| Samsung Electro-Mechanics | Obsolete | ||
| Knowles | Obsolete | ||
| Vishay | Production |
