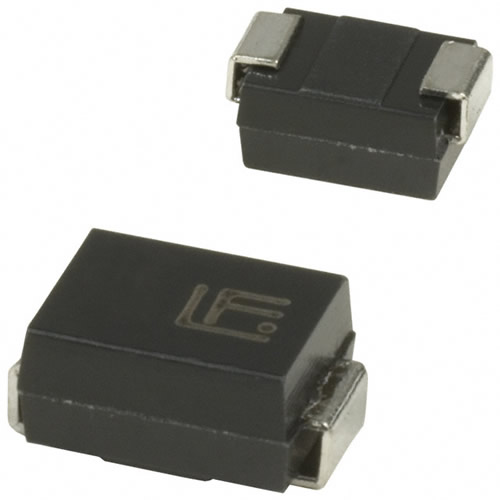

SMBJ6.0 - Littelfuse
Trans Voltage Suppressor Diode, 600W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA
Technical Details
| Breakdown Voltage | 7.41V |
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Clamping Voltage | 11.4V |
| Composition | Zener |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 2.44mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1996-01-01 |
| Lead Free | Lead Free |
| Leakage Current | 5µA |
| Length | 5.59mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 7.37V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1.5W |
| Max Reverse Leakage Current | 800µA |
| Max Surge Current | 6.2A |
| Min Breakdown Voltage | 6.67V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 60V |
| Peak Pulse Current | 58.3A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 600W |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 66.7V |
| Reverse Standoff Voltage | 6V |
| Reverse Voltage | 6V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 10mA |
| Voltage Rating (DC) | 6V |
| Width | 3.94mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Central Semiconductor | Unknown | ||
| Diodes Inc. | Obsolete | ||
| Vishay | Production | ||
| onsemi | Obsolete | ||
| Diotec | Production | ||
| Vishay | Obsolete | ||
| EIC Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Bourns | Production |
