LMV431BIMF/NOPB - TI National Semiconductor

0.5%, low-voltage (1.24-V) adjustable precision shunt regulator 3-SOT-23 -40 to 85

Technical Details

Case/Package SOT-23
Cathode Current 80uA
Height 0.93mm
Lead Free Lead Free
Length 2.92mm
Max Input Voltage 35V
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Max Output Current 15mA
Max Output Voltage 30V
Min Output Voltage 1.24V
Max Power Dissipation 280mW
Mount Surface Mount
Number of Outputs 1
Number of Pins 3
Output Current 15mA
Output Type Adjustable
Output Voltage 30V
Package Quantity 1000
Packaging Tape and Reel
Radiation Hardening No
Reach SVHC Compliant No
Reference Type Shunt, Adjustable
Reference Voltage 30V
RoHS Compliant Yes
Temperature Coefficient 129ppm/°C
Thickness 1mm
Tolerance 0.5%
Width 1.3mm

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

TI National Semiconductor LMV431BIMF/NOPB | Texas Instruments

Texas Instruments

TI National Semiconductor LMV431BIMF/NOPB | Distrelec

Distrelec

TI National Semiconductor LMV431BIMF/NOPB | Arrow Electronics

Arrow Electronics

TI National Semiconductor LMV431BIMF/NOPB | Verical

Verical

TI National Semiconductor LMV431BIMF/NOPB | Element14

Element14

TI National Semiconductor LMV431BIMF/NOPB | Farnell

Farnell

Lifecycle Status Indicator

   Volume Production
 Loading indicators

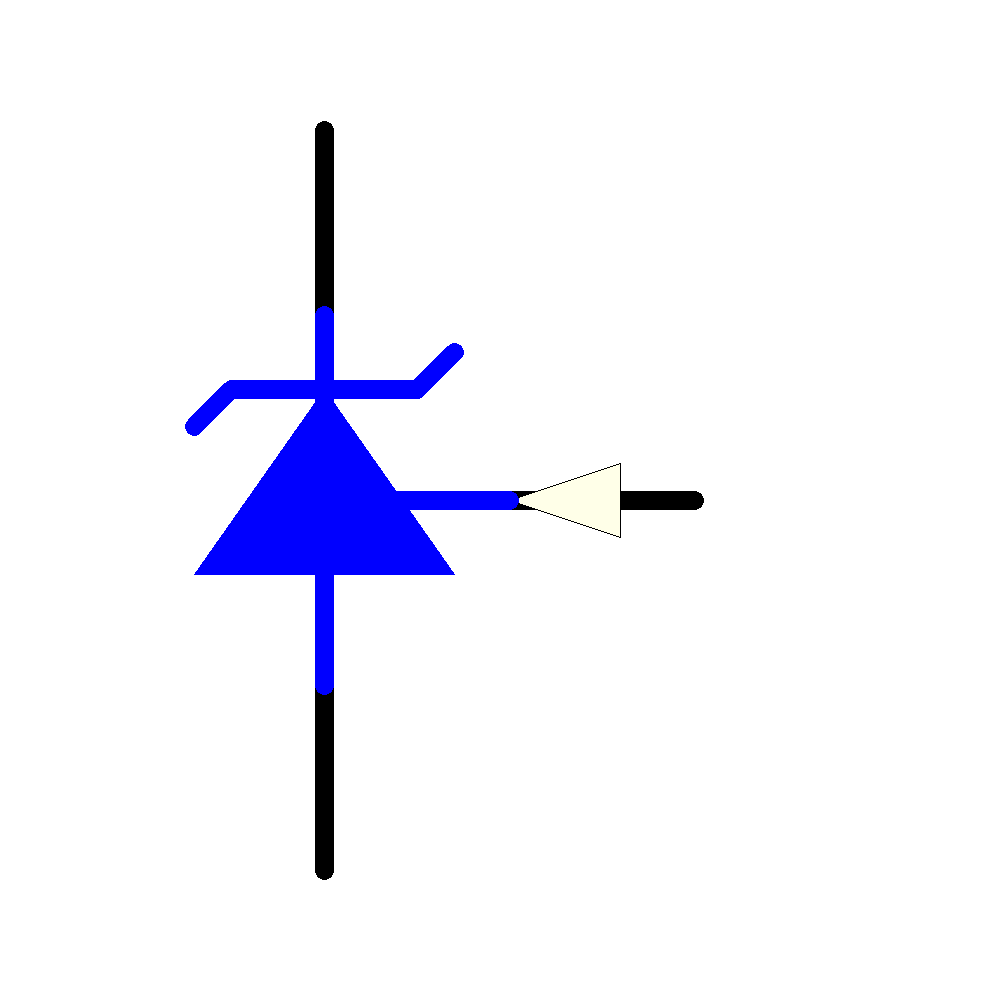

Symbol

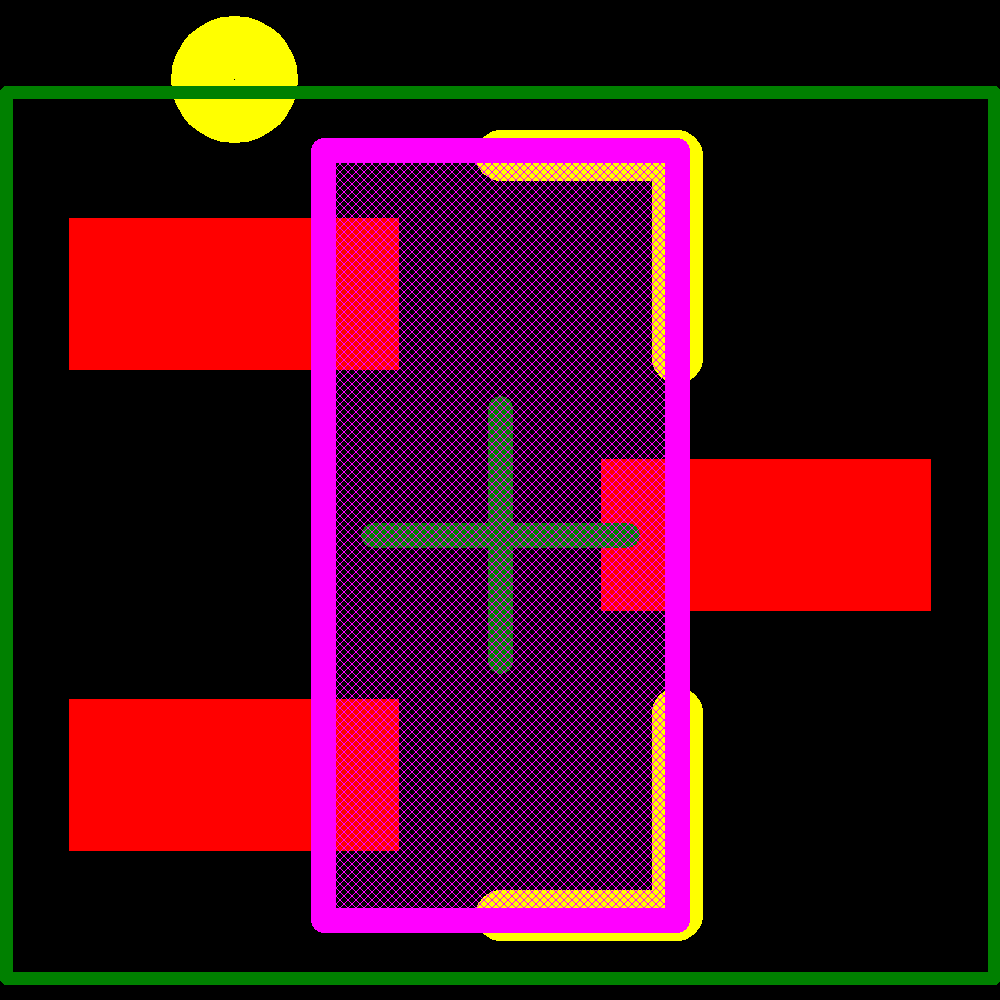

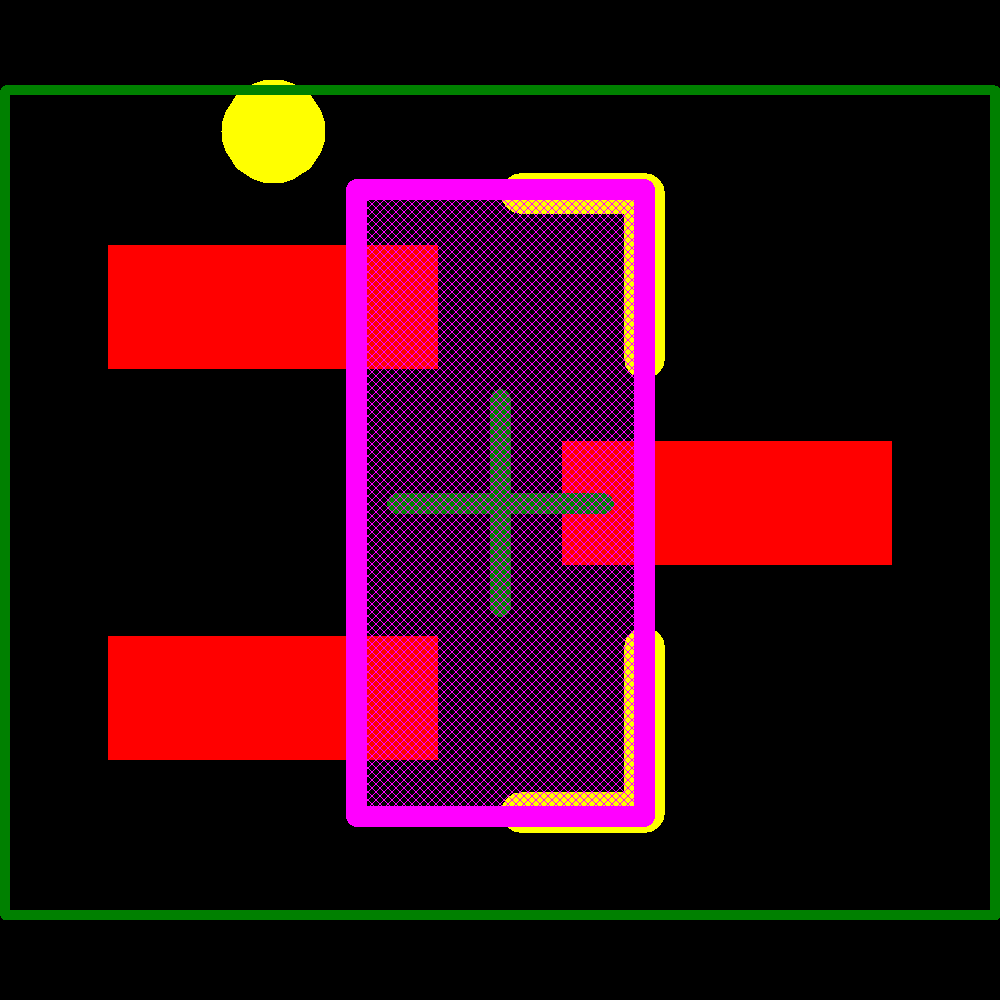

Footprint
