PIC16F676T-E/ST - Microchip

MCU 8-bit PIC16 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 14-Pin TSSOP T/R - Tape and Reel

Projected EOL Date	2034-10-10
Access Time	20µs
Case/Package	TSSOP
Core Architecture	PIC
Country of Assembly	Malaysia, Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Malaysia, Philippines, Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	EAR99
Frequency	20MHz
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	RS-232, USB
Introduction Date	2002-10-10
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	20MHz
Max Operating Temperature	125°C
Max Power Dissipation	800mW
Max Supply Voltage	5.5V
Memory Size	1.8kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	2V
Mount	Surface Mount
Number of Pins	14
Number of Programmable I/O	12
Number of Timers/Counters	2
Packaging	Tape & Reel (TR)
Radiation Hardening	No
RAM Size	64B
RoHS	Compliant
Watchdog Timer	Yes

RoHS : Unconfirmed

Radiation Hardening : No

Microchip PIC16F676T-E/ST | Microchip

Microchip

Production

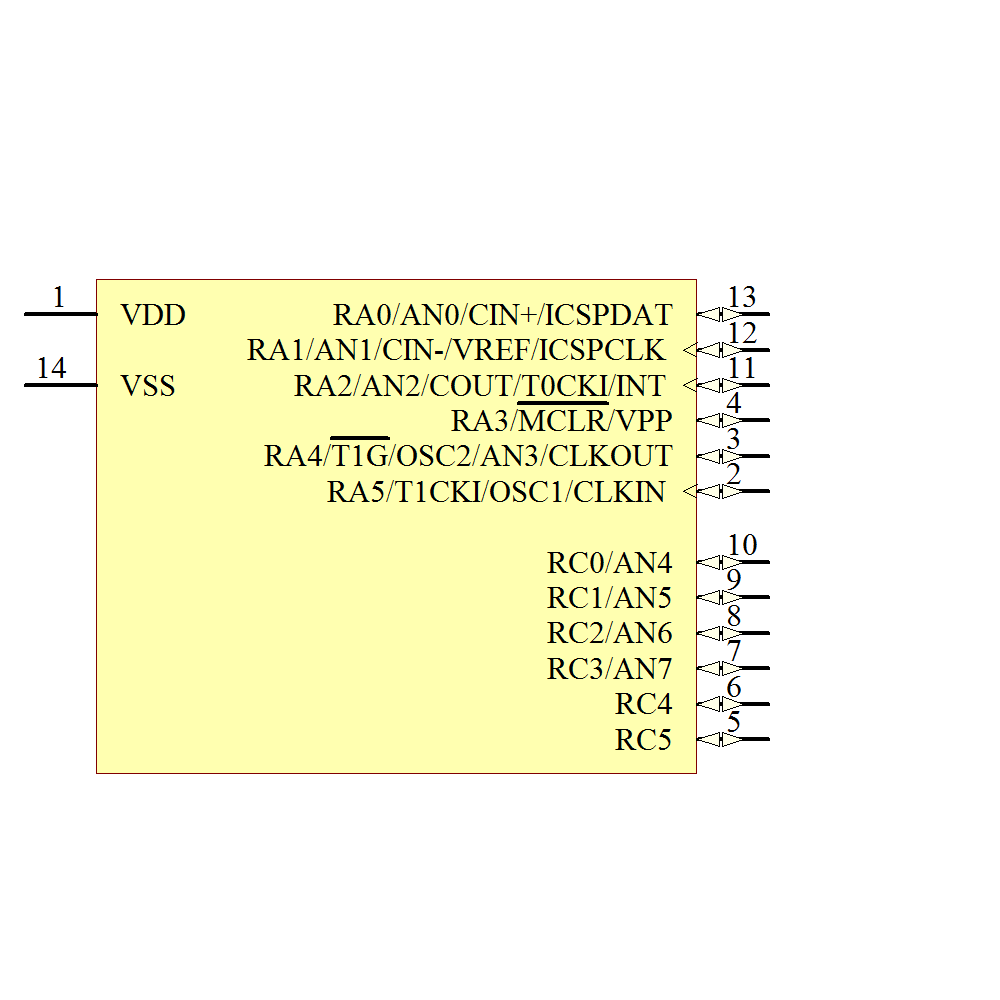

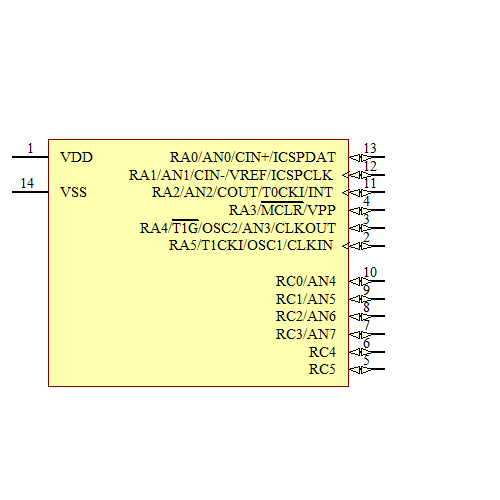

Symbol

‹ ›

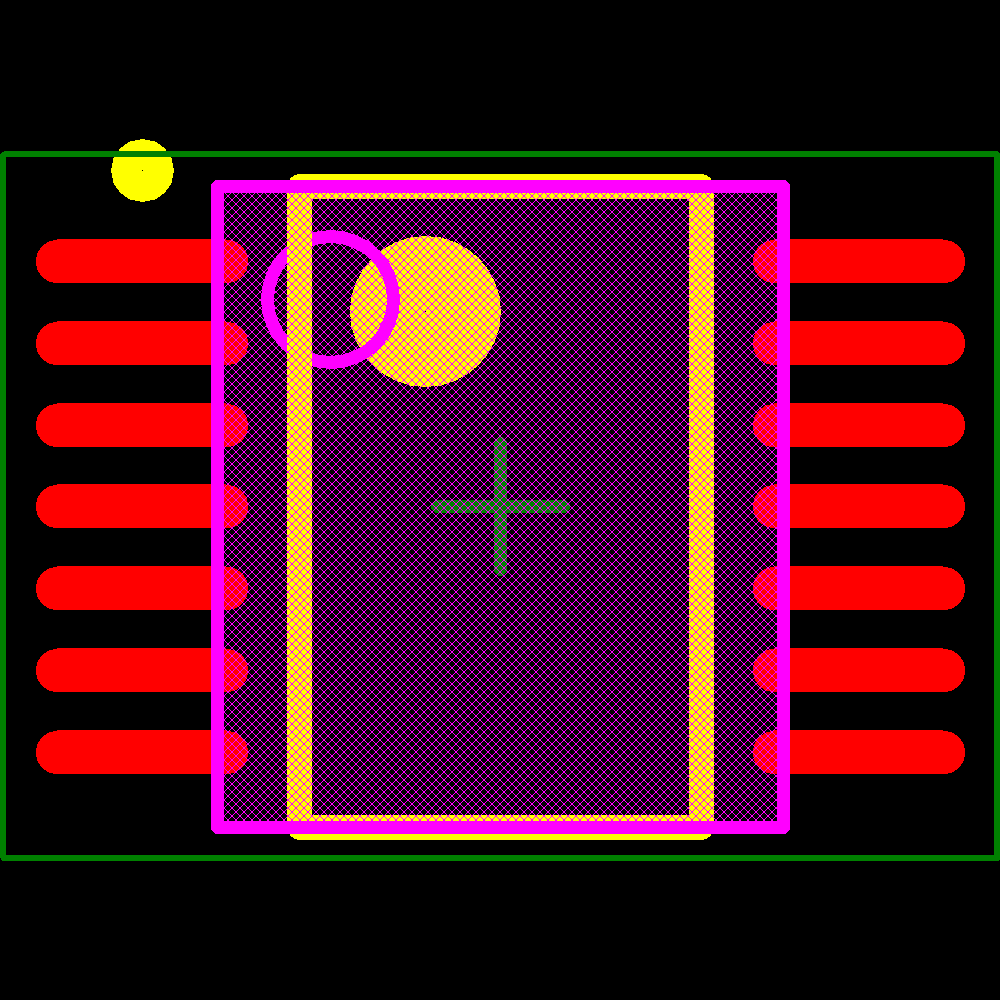

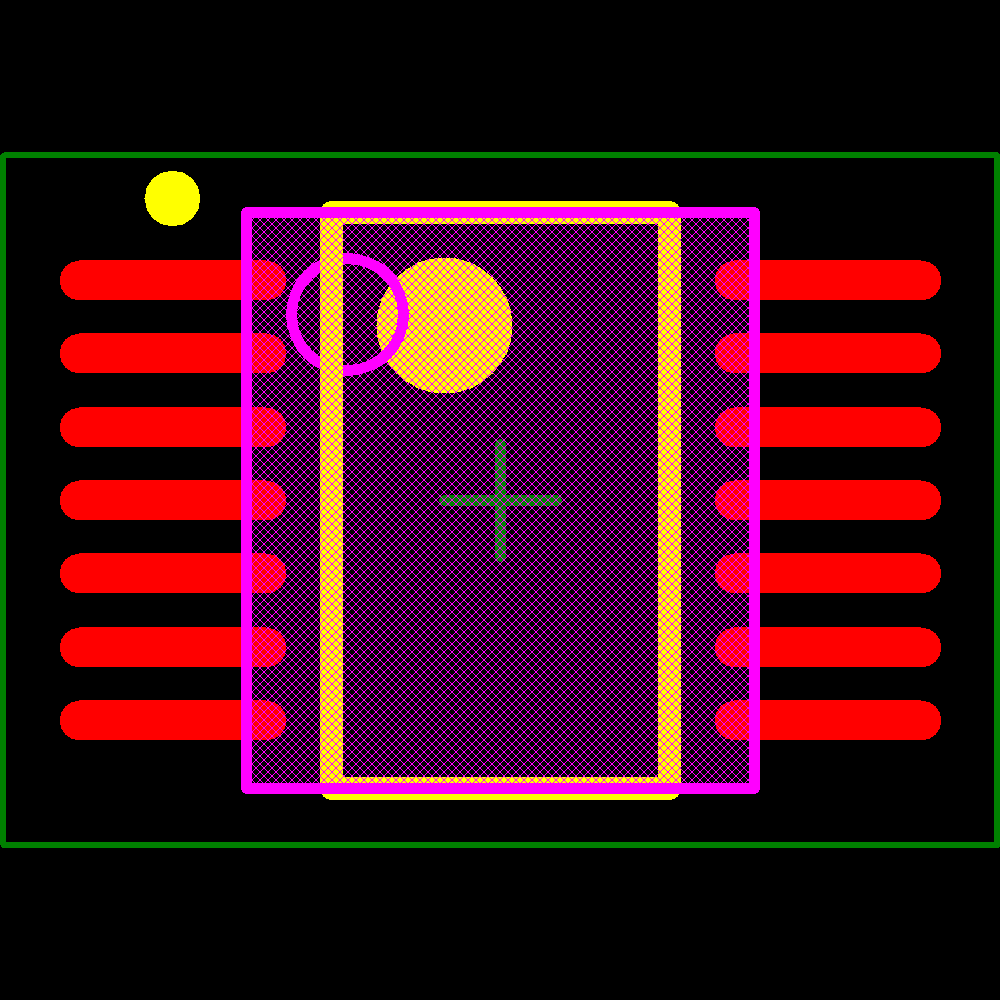

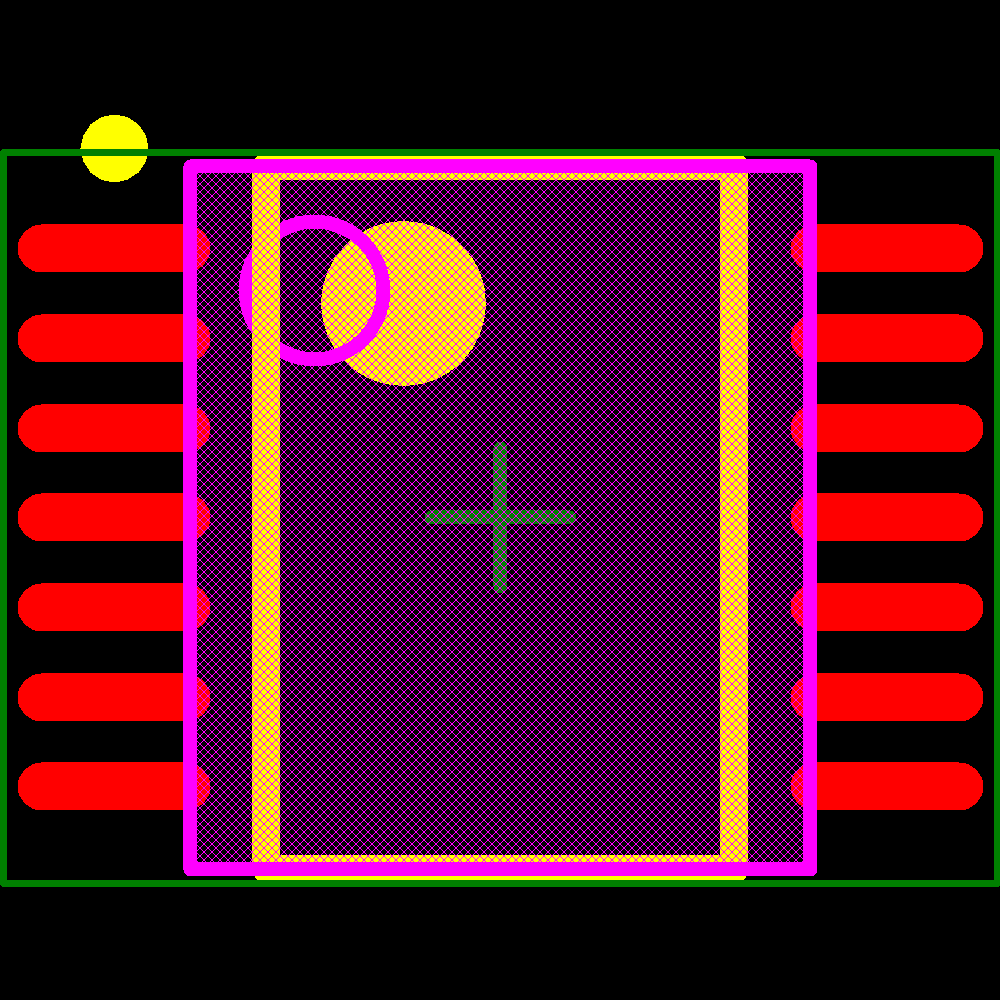

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Microchip	PIC16F676-E/ST	Production
Microchip	PIC16F676T-I/ST	Production
Microchip	PIC16F676-I/ST	Production
Microchip	PIC16F676-I/STVAO	Production
Microchip	PIC16F676-I/SL	Production
Microchip	PIC16F676-E/P	Production
Microchip	PIC16F676T-E/SL	Production
Microchip	PIC16F676-I/P	Production
Microchip	PIC16F676-E/SL	Production
Microchip	PIC16F676T-I/SLG	Unknown
