Optoelectronics > Optocouplers

MOCD217M - ON Semiconductor / Fairchild

OPTOISO 2.5KV 2CH TRANS 8SOIC

Technical Details

Case/Package	SOIC
Collector Emitter Breakdown Voltage	30V
Collector Emitter Saturation Voltage	400mV
Collector Emitter Voltage (VCEO)	400mV
Collector-emitter Voltage-Max	400mV
Current Transfer Ratio	130%
Forward Current	60mA
Forward Voltage	1.3V
Height	3.43mm
Input Current	10mA
Input Type	DC
Isolation Voltage	2.5kV
Isolation Voltage-Max	2.5kV
Lead Free	Lead Free
Length	5.13mm
Max Collector Current	150mA
Max Input Current	60mA
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Max Output Voltage	30V
Max Power Dissipation	250mW
Mount	Surface Mount
Number of Channels	2
Number of Circuits	2
Number of Elements	2
Number of Pins	8
Output Current per Channel	150mA
Output Voltage	30V
Package Quantity	50
Packaging	Box
Power Dissipation	250mW
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	6V
Reverse Voltage	6V
Reverse Voltage (DC)	6V
Rise Time	7.5us
RoHS Compliant	Yes
Test Voltage	3kV
Turn-Off Delay Time	5.7us
Turn-On Delay Time	7.5us
Voltage Rating (DC)	30V
Weight	0.252g
Width	4.16mm

Compliance

RoHS : Compliant

Radiation Hardening : No

Images

ON Semiconductor / Fairchild MOCD217M | Arrow Electronics

Arrow Electronics

ON Semiconductor / Fairchild MOCD217M | Rs

Rs

ON Semiconductor / Fairchild MOCD217M | Distrelec

Distrelec

ON Semiconductor / Fairchild MOCD217M | Element14

Element14

Datasheets

Element14

MOCD217M datasheet (pdf, 3 MB)

MOCD217M datasheet (pdf, 3 MB)

Avnet

MOCD217M datasheet (pdf, 242.2 KB)

Digikey

MOCD217M datasheet (pdf, 242.2 KB)

Lifecycle Status Indicator

Volume Production

Loading indicators

Symbol

MOCD217M Symbol - ON Semiconductor / Fairchild

Footprint

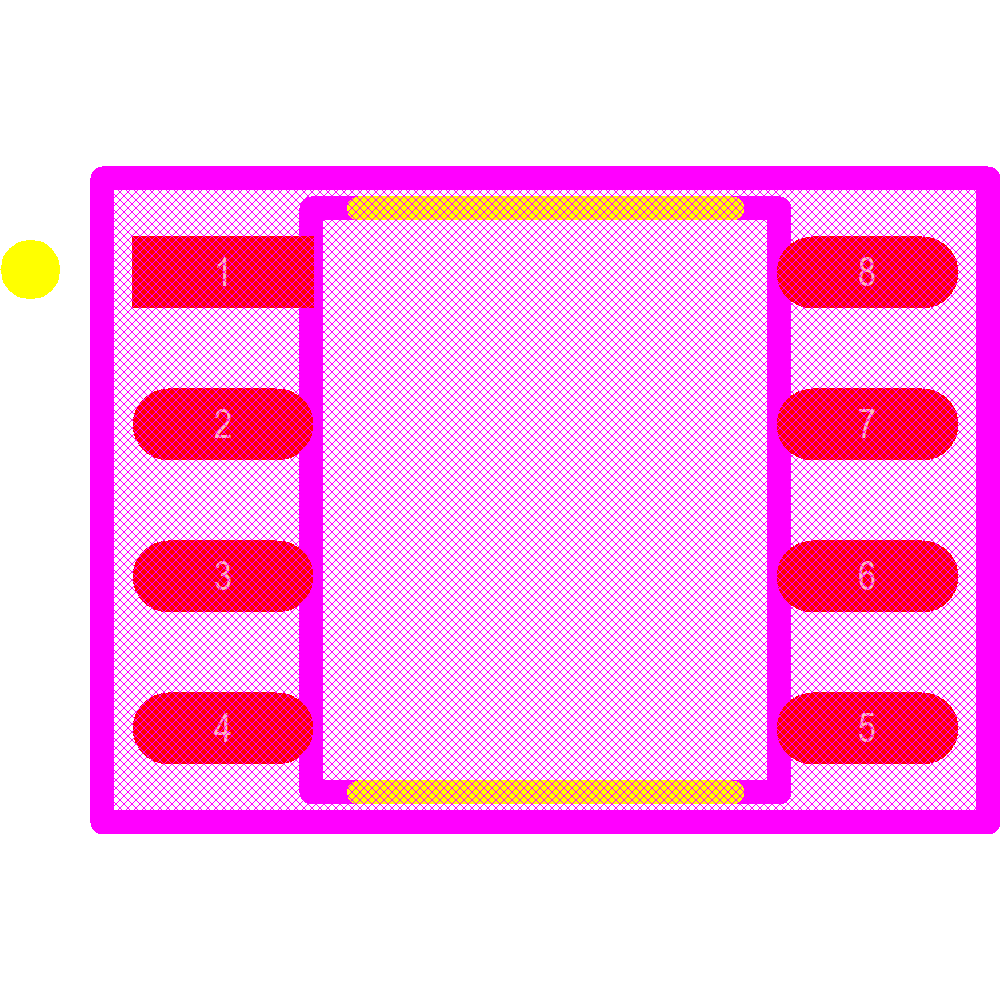

MOCD217M Footprint - ON Semiconductor / Fairchild

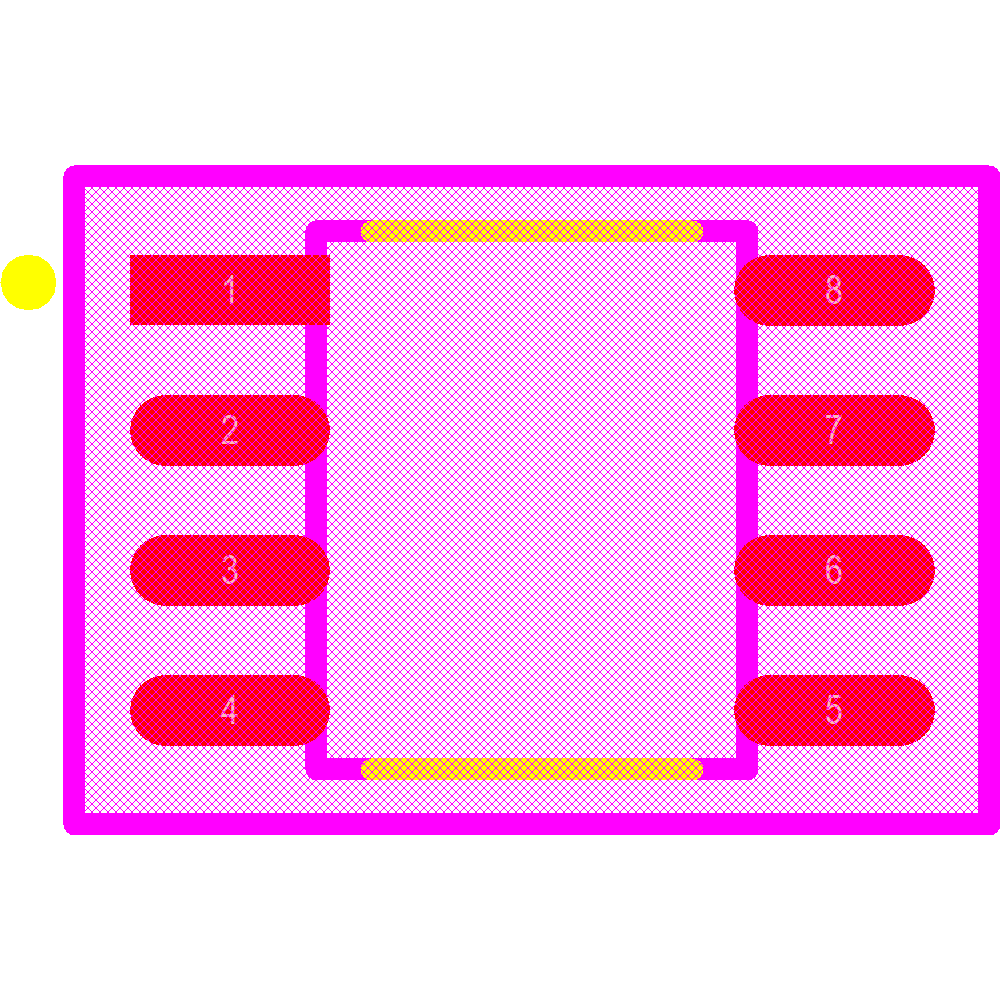

MOCD217M Footprint - ON Semiconductor / Fairchild

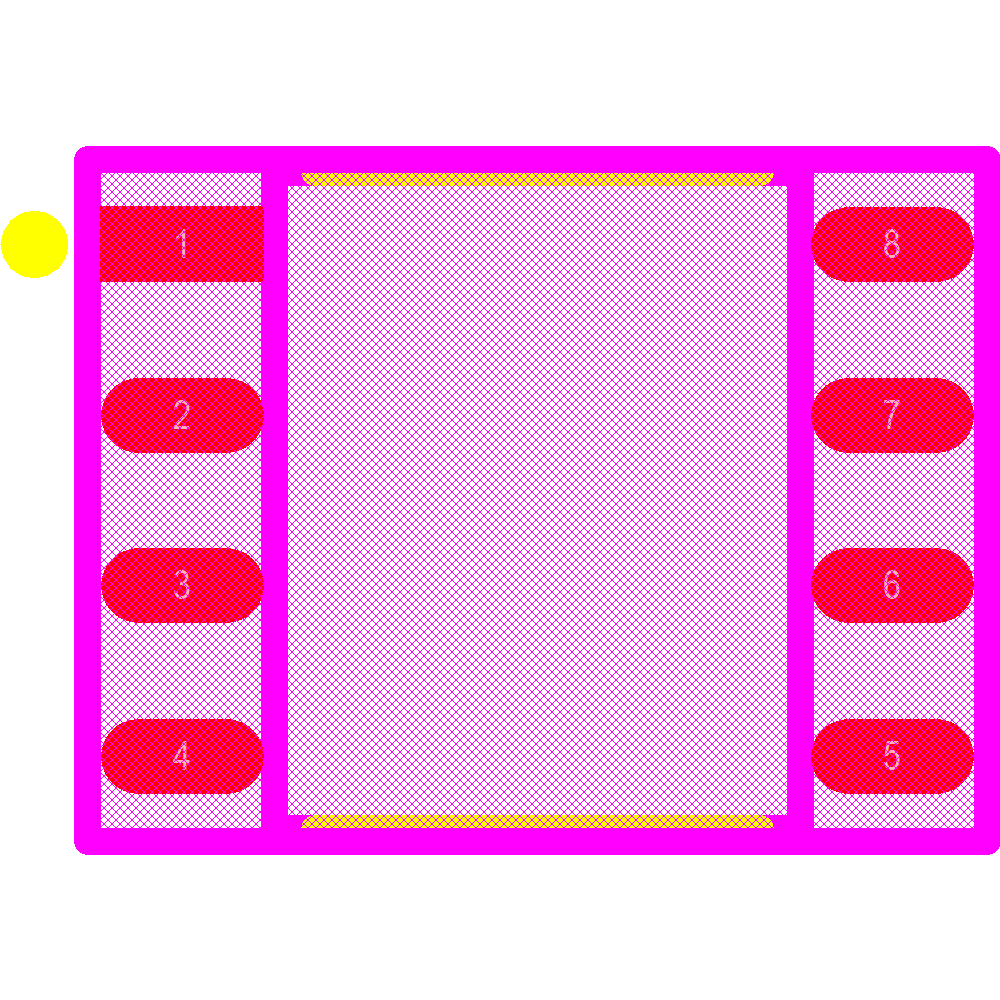

MOCD217M Footprint - ON Semiconductor / Fairchild

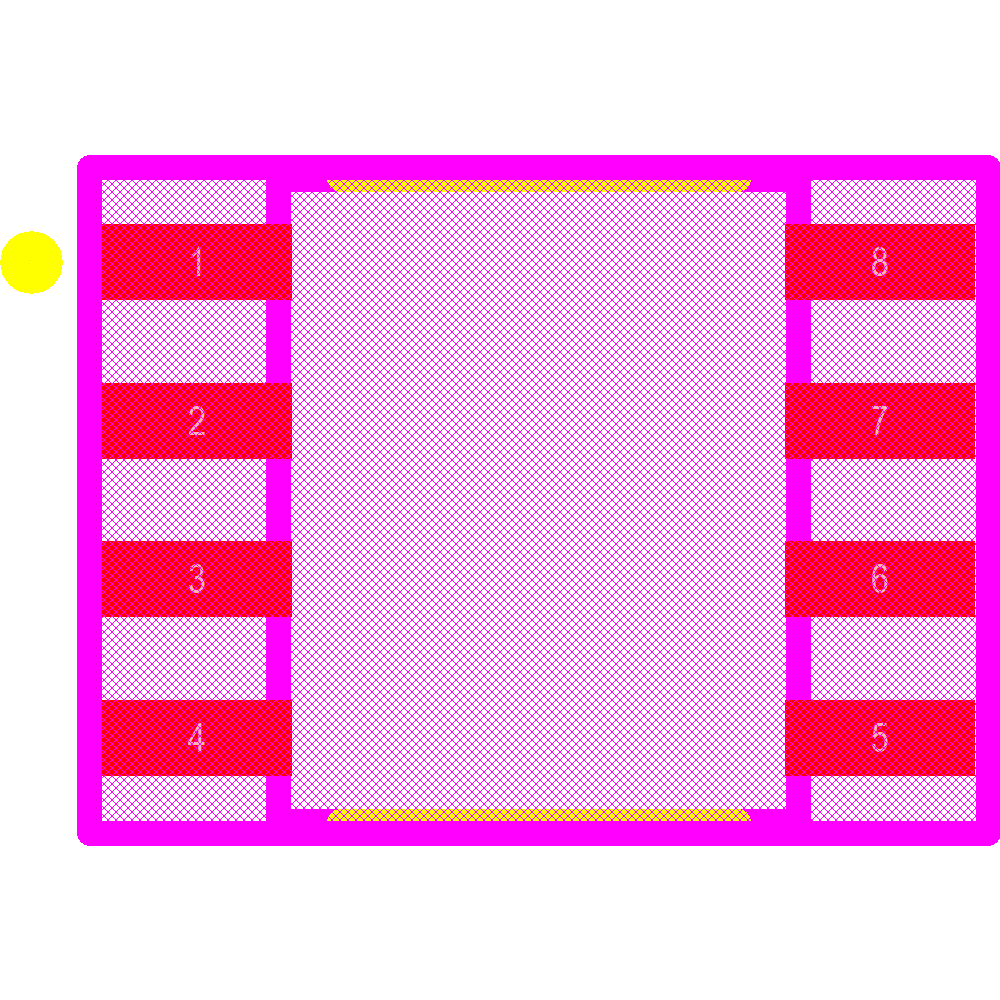

MOCD217M Footprint - ON Semiconductor / Fairchild

‹ ›
