DLW5BTM102SQ2L - Murata

Common Mode Chokes Dual 1kOhm 100MHz 2A 0.034Ohm DCR SMD T/R

Technical Details

Case/Package	2020
Composition	Wirewound
Core Material	Ferrite
Country of Origin	Japan
Current Rating	2A
DC Current	2A
DC Resistance (DCR)	24mΩ
Depth	5.3mm
Export Control Classification Number (ECCN) Code	EAR99
Height	2.35mm
Harmonized Tariff Schedule (HTS) Code	8504.50.80.00
Impedance	1kΩ
Insulation Resistance	10MΩ
Introduction Date	2012-06-21
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Max DC Current	2A
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Number of Circuits	2
Number of Terminals	4
Packaging	Tape and Reel
REACH SVHC	Yes
Resistance	1kΩ
RMS Current (Irms)	2A
RoHS	Compliant
Schedule B	8504500000, 8504500000\|8504500000\|8504500000\|8504500000\|8504500000
Series Resistance	34mΩ
Termination	SMD/SMT
Test Frequency	100MHz
Voltage Rating	50V
Width	5mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Murata DLW5BTM102SQ2L | RS

RS

Datasheets

Lifecycle Status Indicator

Production

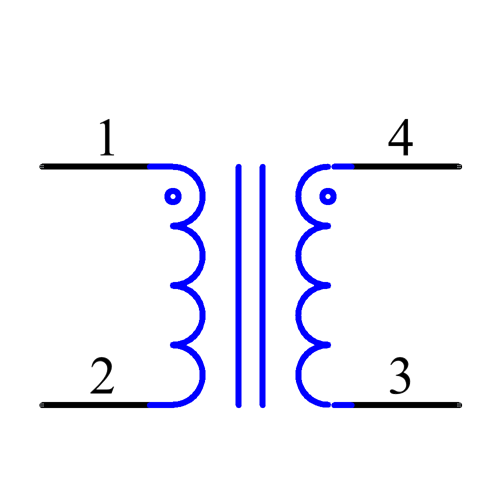

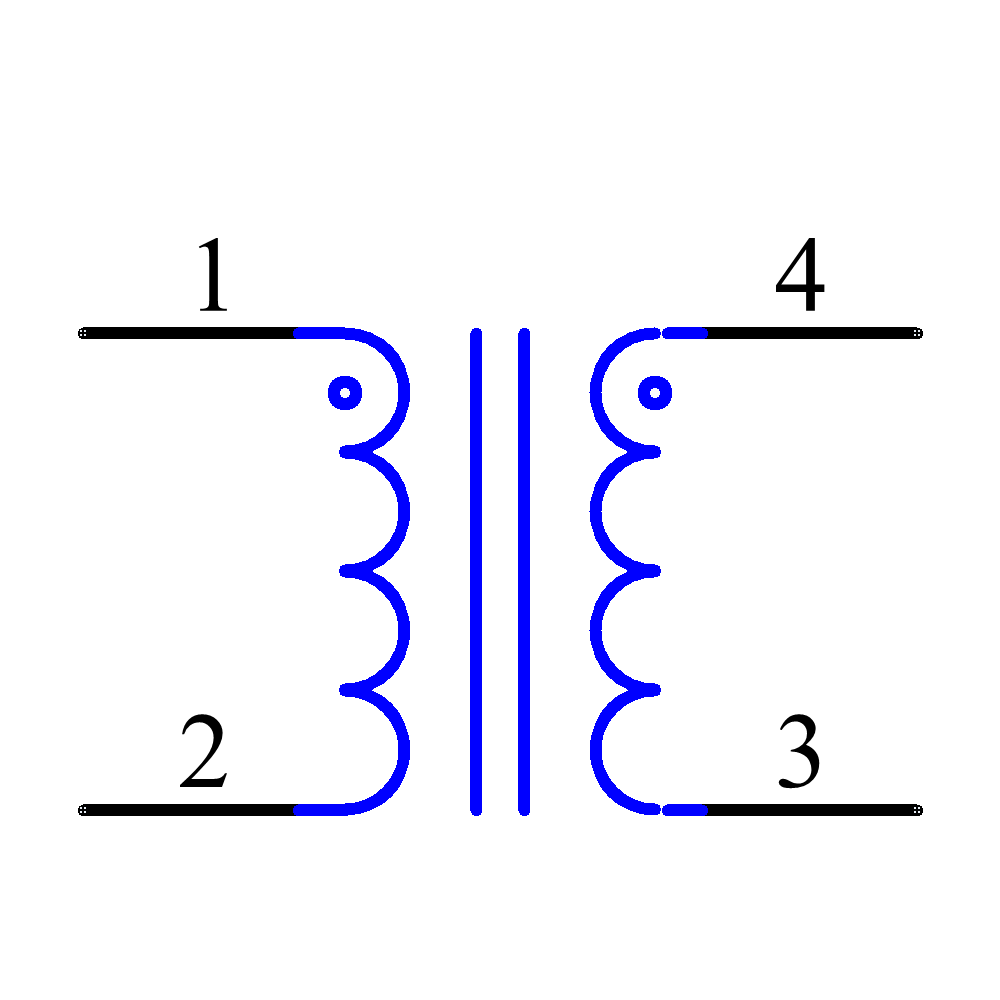

Symbol

DLW5BTM102SQ2L Symbol - Murata

DLW5BTM102SQ2L Symbol - Murata

DLW5BTM102SQ2L Symbol - Murata

DLW5BTM102SQ2L Symbol - Murata

‹ ›

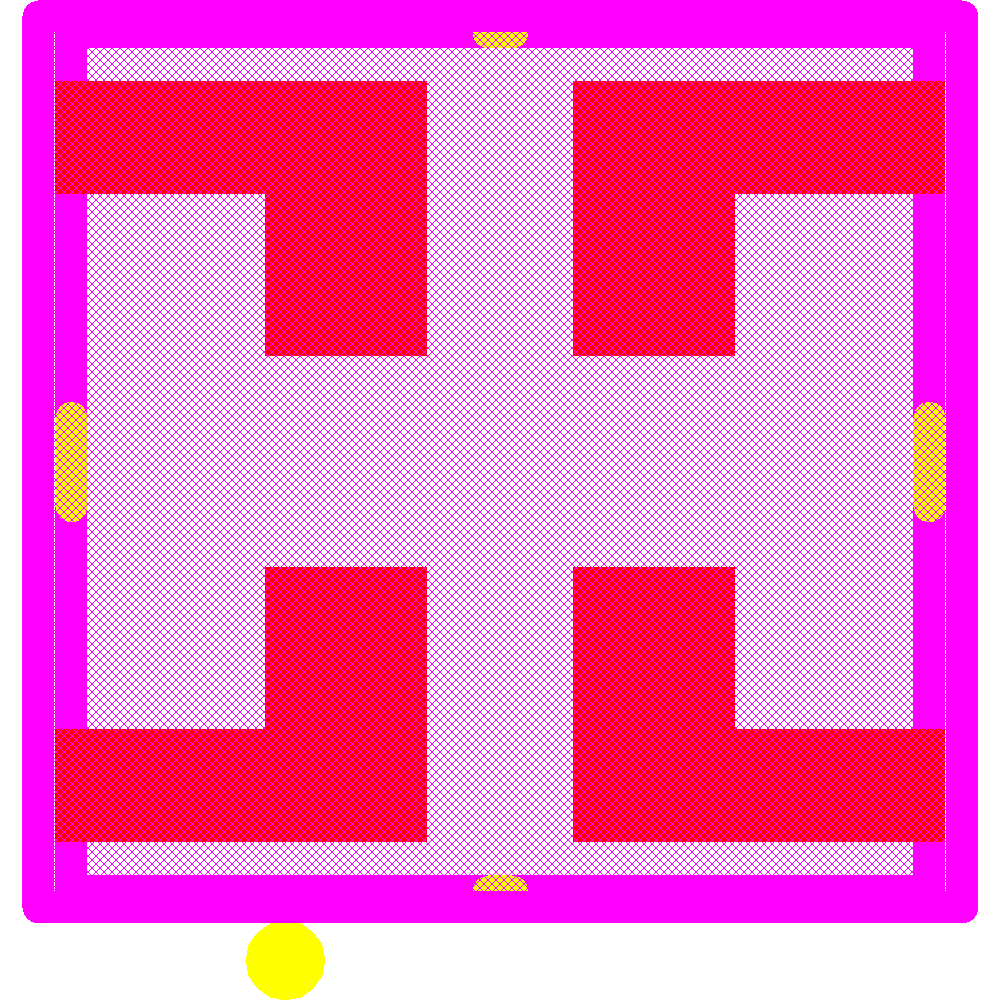

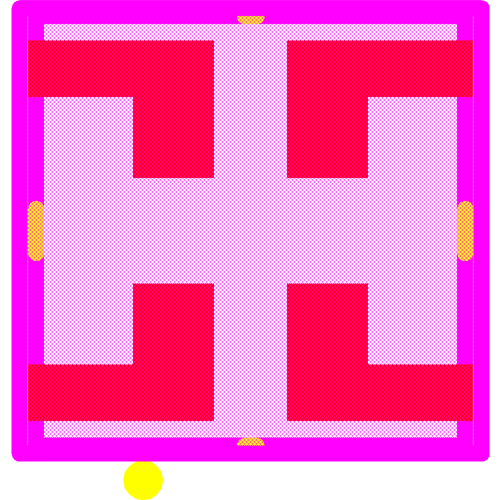

Footprint
