ON Semiconductor / Fairchild - NC7SZ04M5X

IC INVERTER 1CH 1-INP SOT23-5

 Datasheets

Technical Details

Case/Package SOT-23
High Level Output Current -32mA
Lead Free Lead Free
Logic Function Inverter
Low Level Output Current 32mA
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Max Supply Voltage 5.5V
Min Supply Voltage 1.65V
Mount Surface Mount
Number of Circuits 1
Number of Elements 1
Number of Functions 1
Number of Inputs 1
Number of Pins 5
Output Current 32mA
Package Quantity 3000
Packaging Tape and Reel
Propagation Delay 4.3ns
Quiescent Current 2uA
Radiation Hardening No
Reach SVHC Compliant No
RoHS Compliant Yes
Series 7SZ
Supply Voltage-Nom 5.5V
Technology CMOS
Turn-On Delay Time 12ns
Weight 0.03g

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

ON Semiconductor / Fairchild NC7SZ04M5X | Newark

Newark

ON Semiconductor / Fairchild NC7SZ04M5X | Verical

Verical

ON Semiconductor / Fairchild NC7SZ04M5X | Digi-Key

Digi-Key

ON Semiconductor / Fairchild NC7SZ04M5X | Arrow Electronics

Arrow Electronics

ON Semiconductor / Fairchild NC7SZ04M5X | Rs

Rs

Datasheets

Verical
Digi-Key
Element14
Avnet

Lifecycle Status Indicator

   Volume Production
 Loading indicators

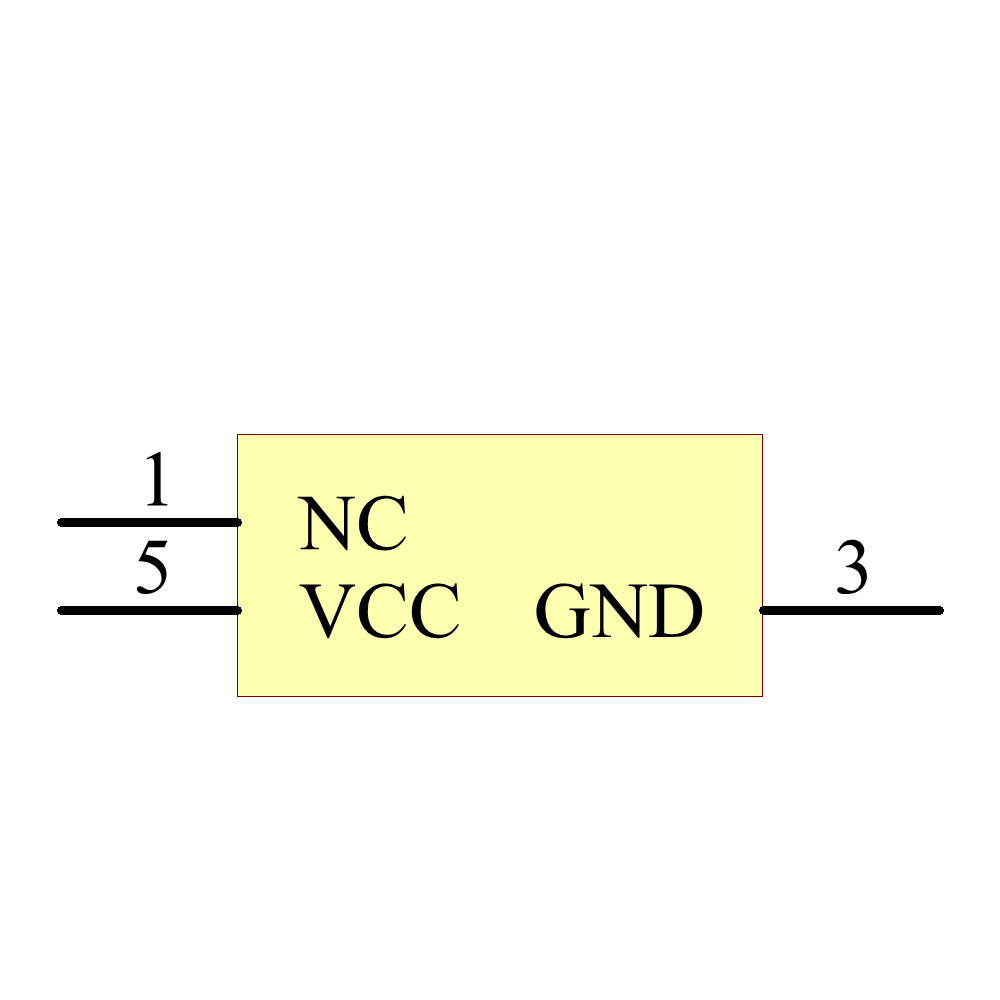

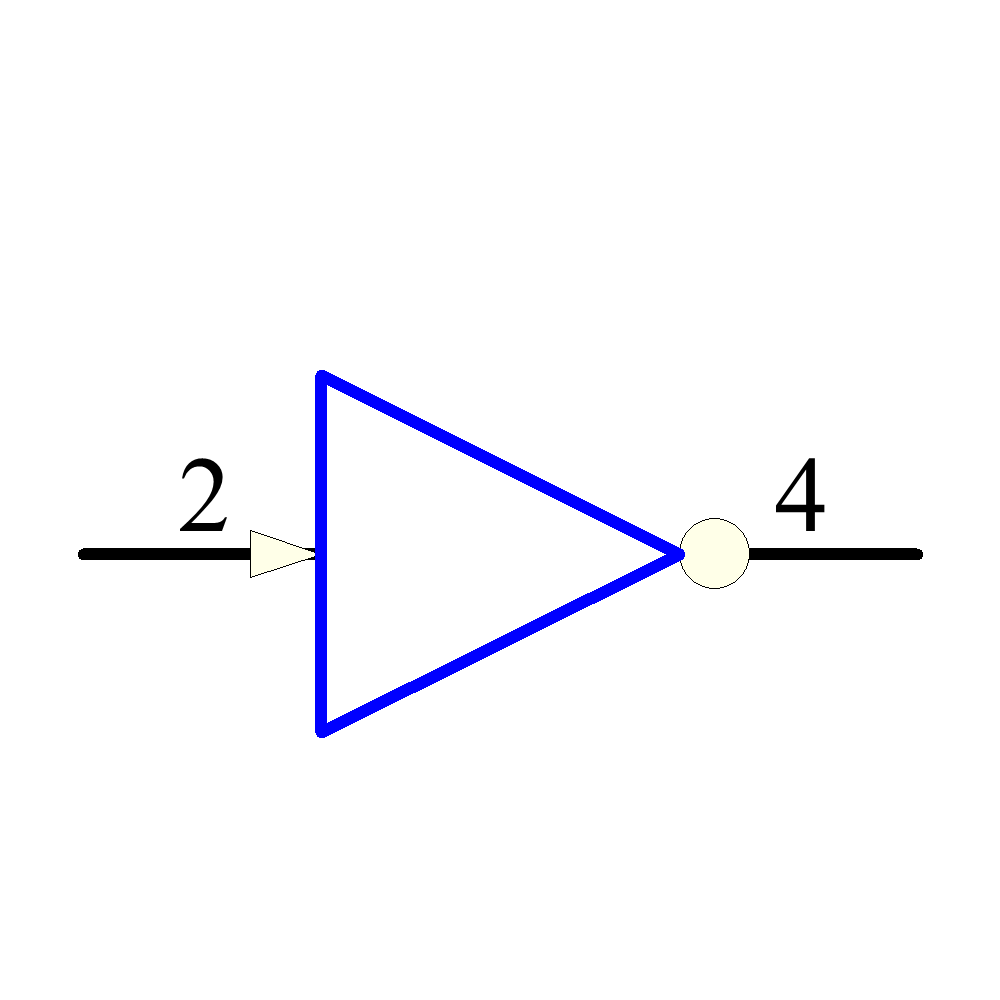

Symbol
