PCMF2USB3SZ - Nexperia
Common-mode EMI filter for differential channels with integrated ESD protection
Technical Details
| Approvals | IEC |
| Capacitance | 250fF |
| China RoHS | Compliant |
| DC Resistance (DCR) | 3Ω |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 600µm |
| Harmonized Tariff Schedule (HTS) Code | 8504.50.80.00 |
| Insertion Loss (dB) | -38dB |
| Introduction Date | 2015-10-07 |
| Length | 1.62mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Lines | 4 |
| Number of Terminals | 10 |
| Packaging | Cut Tape |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage Rating | 5V |
| Width | 1.22mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

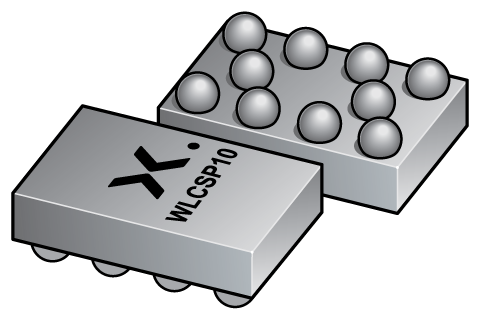

Images
