PESD5V0H1BSFYL - Nexperia

TVS DIODE 5VWM 6.3VC DSN0603-2 / ESD Suppressor Diode TVS Bi-Dir 5V 2-Pin DSN T/R

Technical Details

Ambient Temperature Range High	125°C
Breakdown Voltage	10V
Capacitance	150fF
China RoHS	Compliant
Clamping Voltage	5V
Composition	Zener
Direction	Bidirectional
Element Configuration	Single
Height	320µm
Lifecycle Status	Production
Manufacturer Lifecycle Status	RELEASED FOR SUPPLY
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	125°C
Min Breakdown Voltage	6V
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Bidirectional Channels	1
Number of Channels	1
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Operating Supply Voltage	5V
Peak Pulse Current	7A
Peak Pulse Power	35W
Peak Reverse Current	50nA
Polarity	Bidirectional
Power Line Protection	No
REACH SVHC	Yes
Reverse Standoff Voltage	5V
RoHS	Compliant
Schedule B	8536300000, 8536300000\|8536300000\|8536300000\|8536300000\|8536300000
Working Voltage	5V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

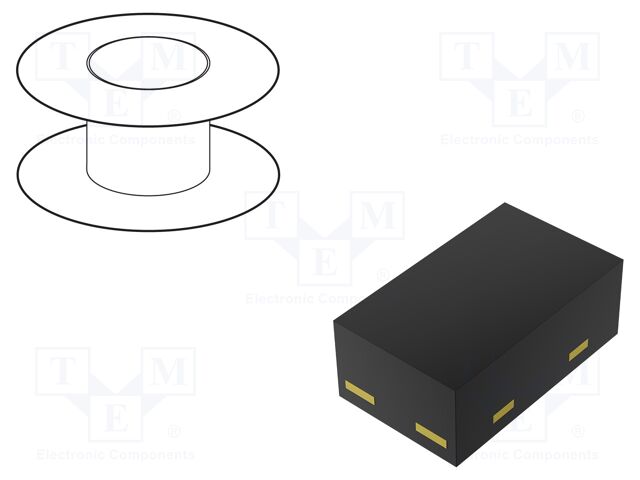

Nexperia PESD5V0H1BSFYL | TME

TME

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

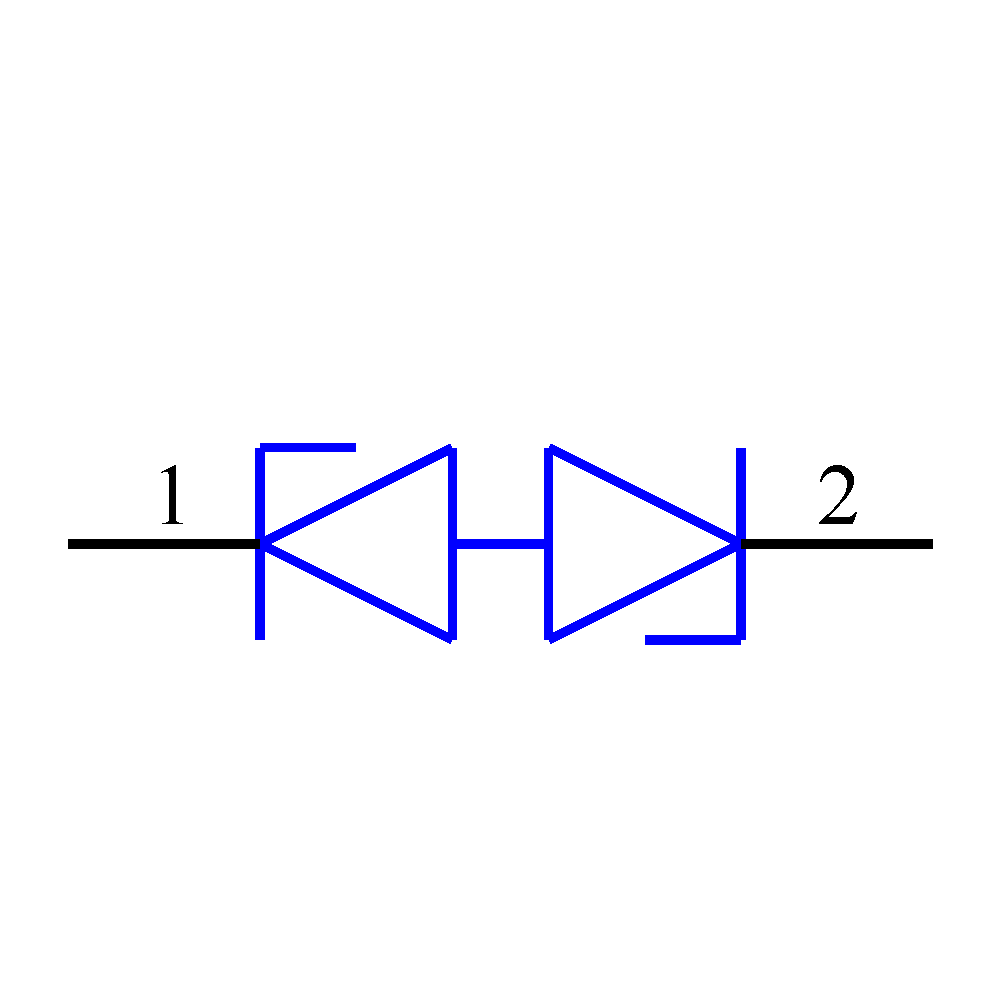

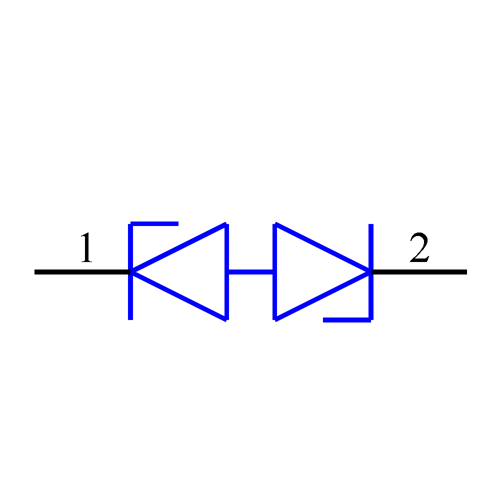

Symbol

PESD5V0H1BSFYL Symbol - Nexperia

PESD5V0H1BSFYL Symbol - Nexperia

PESD5V0H1BSFYL Symbol - Nexperia

PESD5V0H1BSFYL Symbol - Nexperia

‹ ›

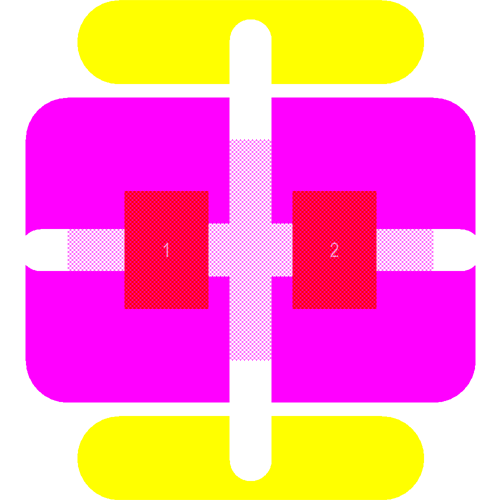

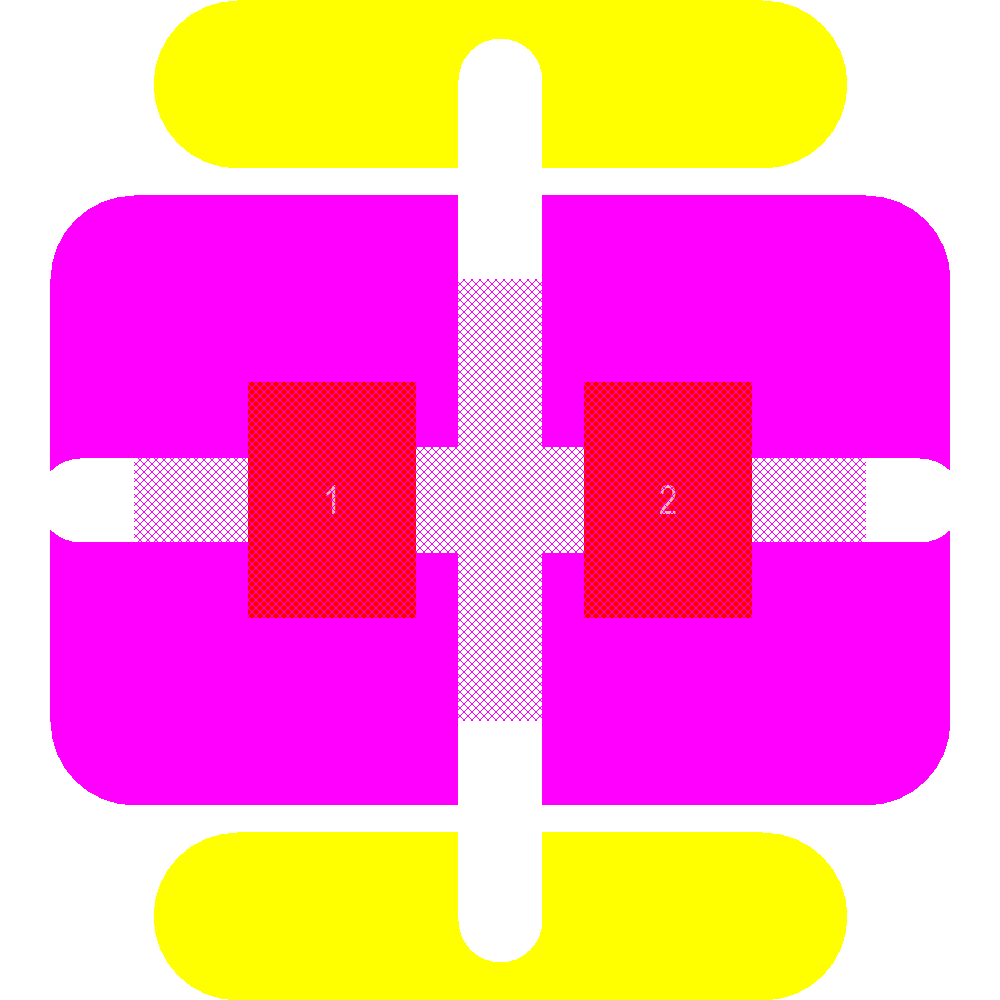

Footprint
