NUP4114UPXV6T1G - onsemi
NUP4114 Series 10 V 8 A Surface Mount Transient Voltage Suppressor - SOT-563
Technical Details
| Breakdown Voltage | 6.5V |
| Capacitance | 1pF |
| Case/Package | SOT-563-6 |
| China RoHS | Compliant |
| Clamping Voltage | 10V |
| Contact Plating | Tin |
| Depth | 1.2mm |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 550µm |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 1A |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -40°C |
| Number of Bidirectional Channels | 4 |
| Number of Elements | 1 |
| Number of Lines | 4 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Operating Supply Voltage | 5.5V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 8A |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 1.2mm |
| Working Voltage | 5.5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

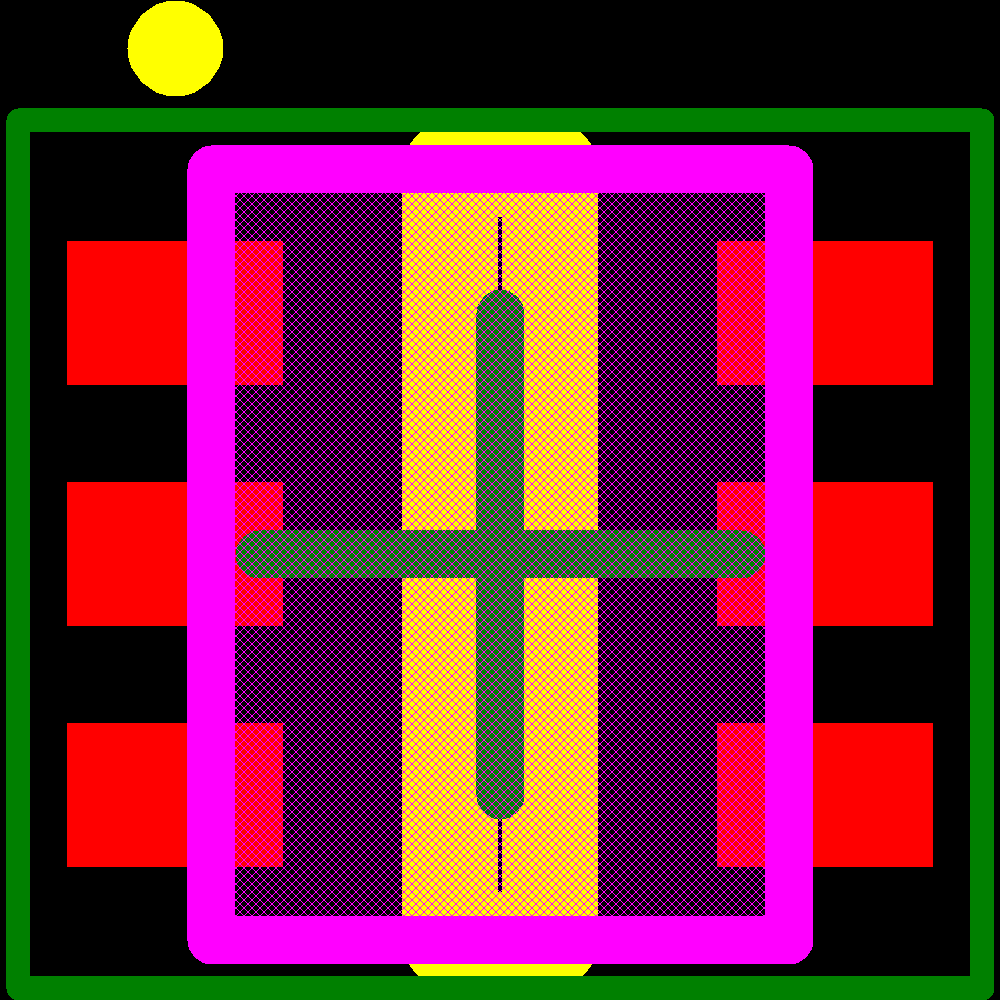

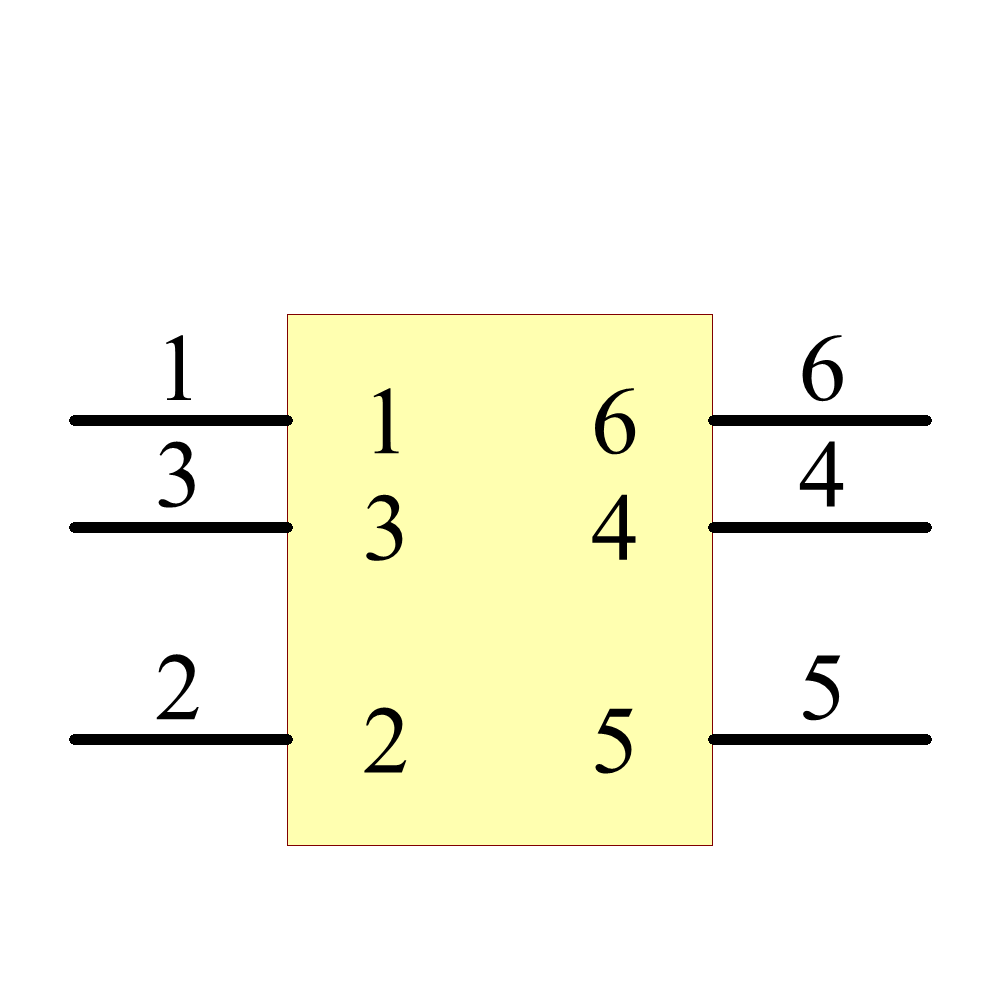

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Bourns | Obsolete | ||
| Semtech | Production | ||
| Semtech | Production | ||
| onsemi | Production | ||
| onsemi | EOL | ||
| Bourns | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| onsemi | Obsolete |
