BC857BLT3G - onsemi
BC Series PNP 300 mW 45V 100mA Surface Mount General Purpose Transistor - SOT-23
Technical Details
| Case/Package | SOT-23-3 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | -650mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Country of Origin | Mainland China |
| Current Rating | -100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 100MHz |
| Gain Bandwidth Product | 100MHz |
| hFE Min | 220 |
| Introduction Date | 1996-01-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 100MHz |
| Voltage Rating (DC) | -45V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

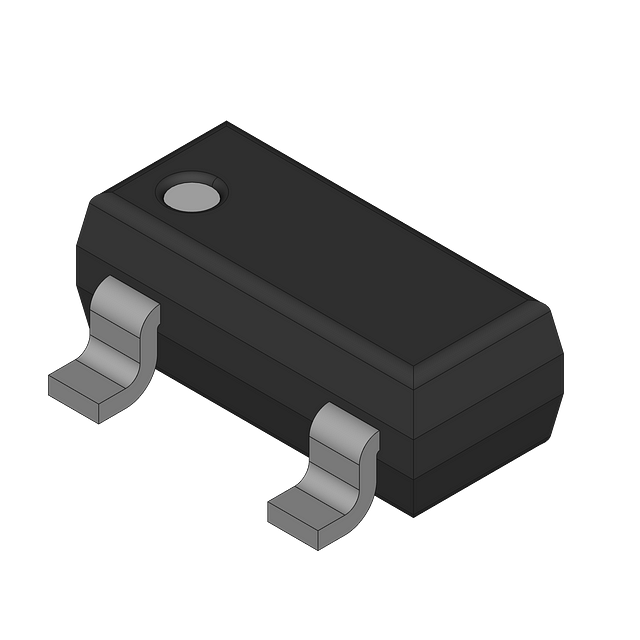

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Nexperia | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| STMicroelectronics | Obsolete | ||
| MCC | Production | ||
| CDIL | Unknown | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production |
