EXB-2HV102JV - Panasonic
Resistor Thick Film Array 1K Ohm 5% 1/4W 200ppm/C ISOL 16-Pin 1506(8 X 0402) Convex SMD Punched Carrier T/R
Technical Details
| Case/Package | 0602 |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Circuit Type | Isolated |
| Composition | Thick Film |
| Contact Plating | Tin |
| Country of Origin | Japan |
| Depth | 1.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 450µm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.20 |
| Introduction Date | 2004-03-02 |
| Lead Free | Lead Free |
| Length | 3.8mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Contacts | 16 |
| Number of Elements | 1 |
| Number of Pins | 16 |
| Number of Resistors | 8 |
| Number of Terminals | 16 |
| Packaging | Cut Tape |
| Power Dissipation | 250mW |
| Power Per Element | 62.5mW |
| Power Rating | 250mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 1kΩ |
| RoHS | Compliant |
| Schedule B | 8533210025, 8533210025|8533210025, 8533210025|8533210025|8533210025, 8533210025|8533210025|8533210025|8533210025 |
| Part Series | Chip Resistor Array |
| Temperature Coefficient | 200ppm/°C |
| Terminal Pitch | 500µm |
| Termination | Convex |
| Thickness | 450µm |
| Tolerance | 5% |
| Voltage Rating | 25V |
| Weight | 793.786648µg |
| Width | 1.6mm |
| Working Voltage | 25V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

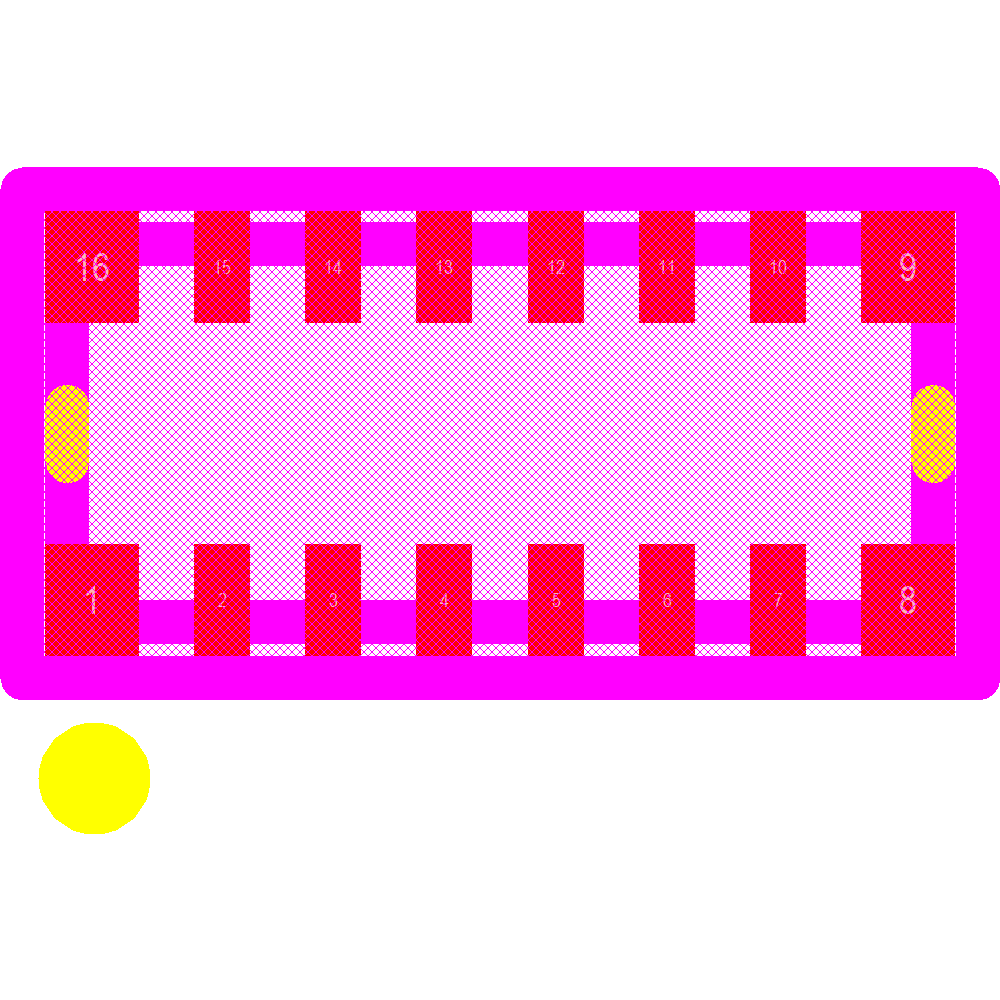

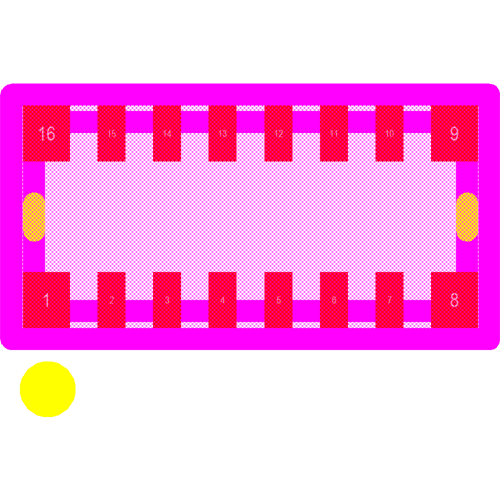

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| ROHM | Obsolete | ||
| KOA Speer | Obsolete | ||
| KOA Speer | Obsolete | ||
| CTS Components | Production | ||
| CTS Components | Obsolete | ||
| ROHM | Obsolete | ||
| CTS Components | Production | ||
| Stackpole Electronics | Obsolete | ||
| Stackpole Electronics | Obsolete |
