Power Products  >  Power Supply Modules

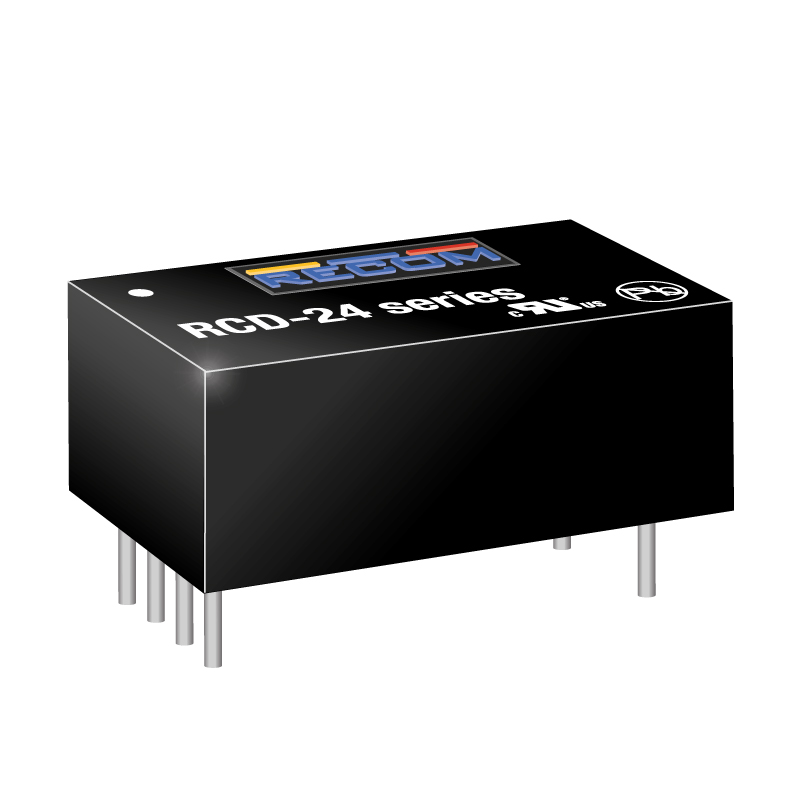

Recom Power - RCD-24-0.70

RCD-24-0.70 - Recom Power

0.7A LED-Driver 'LIGHTLINE' DIP reg; V. In: 4.5-36; V. Out: 2-35; mA. Out: 0-700

 Datasheets

Technical Details

Approvals EN, UL
Case/Package DIP
Country of Origin Mainland China, Taiwan
Current - Output 1 700mA
Current Rating 700mA
Dimming Analog, PWM
Export Control Classification Number (ECCN) Code EAR99
Efficiency 96%
Features SCP
Height 8.5mm
Height - Seated (Max) 9mm
Introduction Date 2008-05-28
Lead Free Lead Free
Length 22.1mm
Lifecycle Status NRND
Max Input Voltage 36V
Max Operating Temperature 71°C
Max Output Current 700mA
Max Output Power 24.5W
Max Output Voltage 35V
Max Power Dissipation 25W
Max Supply Voltage 36V
Max Supply Voltage (DC) 36V
Min Input Voltage 4.5V
Min Operating Temperature -40°C
Min Output Voltage 2V
Min Supply Voltage 4.5V
Min Supply Voltage (DC) 4.5V
Mount PCB, Through Hole
Nominal Input Voltage 24V
Number of Circuits 1
Number of Outputs 1
Number of Pins 6
Number of Terminals 6
Output Current 700mA
Output Voltage 2V
Power Dissipation 800mW
REACH SVHC Yes
RoHS Compliant
Schedule B 8504409580
Terminal Pitch 2.54mm
Voltage - Output 1 35V
Weight 4.5g
Width 12.6mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

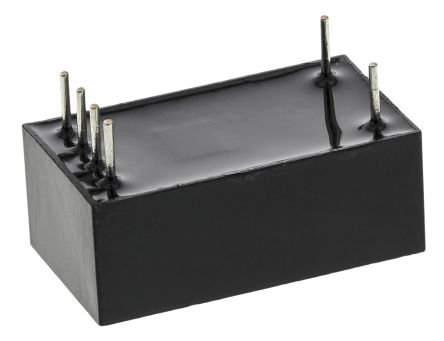

Recom Power RCD-24-0.70 | RS

RS

Datasheets

 Sager Electronics
 Chip One Stop
 Master Electronics

Lifecycle Status Indicator

   NRND

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Recom Power
RCD-24-0.30
NRND
Recom Power
RCD-24-0.35
NRND
Recom Power
RCD-24-0.50
NRND
Recom Power
RCD-24-0.60
NRND
Recom Power
RCD-24-1.00
NRND
Recom Power
RCD-24-1.20
NRND
Recom Power
RCD-24-0.35/VREF
NRND
Recom Power
RCD-24-0.30/VREF
NRND
Recom Power
RCD-24-0.50/VREF
NRND
Recom Power
RCD-24-0.60/VREF
NRND

See more alternatives See less alternatives
