EMZ7T2R - ROHM

Bipolar (BJT) Transistor Array NPN, PNP 12V 500mA 320MHz, 260MHz 150mW Surface M

Technical Details

Collector Base Voltage (VCBO)	15V
Collector Emitter Breakdown Voltage	12V
Collector Emitter Saturation Voltage	-100mV
Collector Emitter Voltage (VCEO)	12V
Continuous Collector Current	500mA
Current Rating	500mA
Element Configuration	Dual
Emitter Base Voltage (VEBO)	6V
Gain Bandwidth Product	260MHz
Height	550µm
hFE Min	270
Lead Free	Lead Free
Lifecycle Status	Production
Max Breakdown Voltage	12V
Max Collector Current	500mA
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	150°C
Max Power Dissipation	150mW
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Elements	2
Number of Pins	6
Number of Terminals	6
Packaging	Tape and Reel
Polarity	NPN, PNP
Power Dissipation	150mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Transition Frequency	320MHz

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

ROHM EMZ7T2R | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

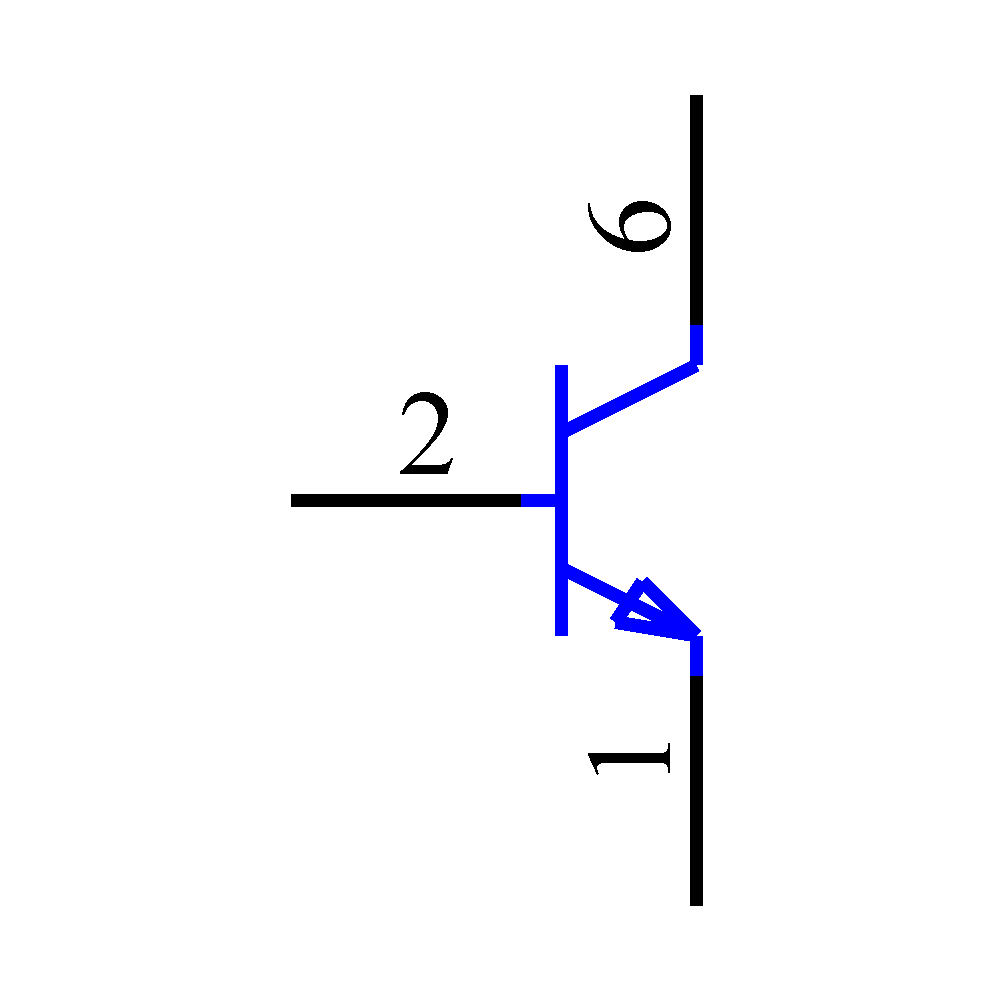

Symbol

EMZ7T2R Symbol - ROHM

EMZ7T2R Symbol - ROHM

EMZ7T2R Symbol - ROHM

EMZ7T2R Symbol - ROHM

EMZ7T2R Symbol - ROHM

EMZ7T2R Symbol - ROHM

EMZ7T2R Symbol - ROHM

EMZ7T2R Symbol - ROHM

‹ ›

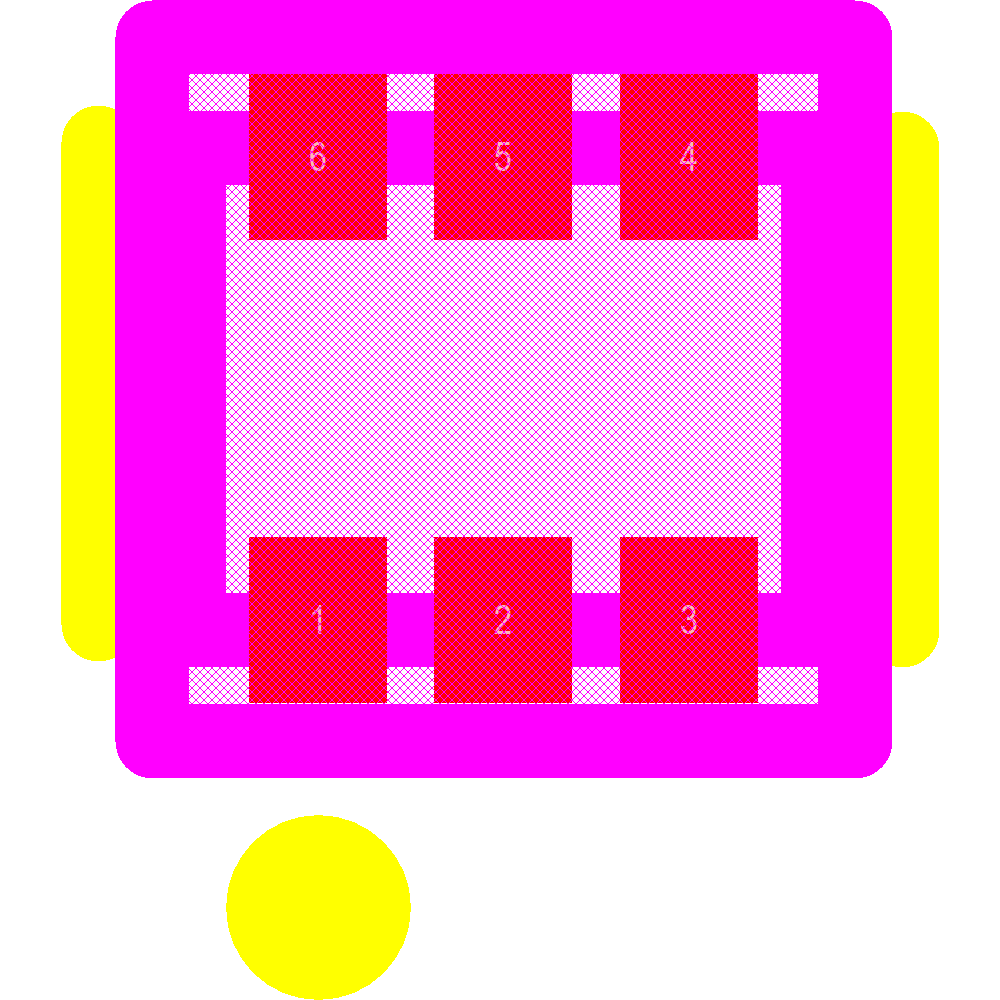

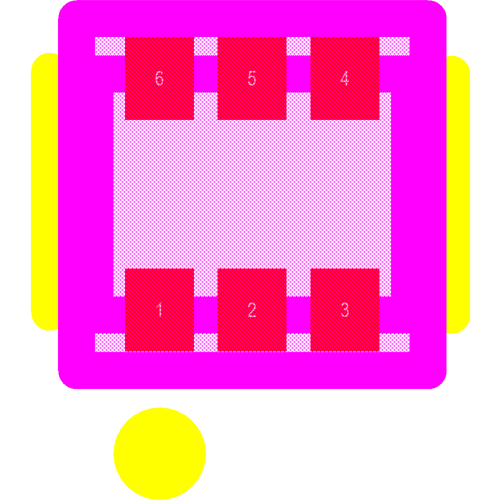

Footprint
