SD05T1G - ON Semiconductor

TVS DIODE 5V 9.8V SOD323

Technical Details

Breakdown Voltage 6.75V
Capacitance 350pF
Case/Package SOD-323-2
Clamping Voltage 14.5V
Contact Plating Tin, Matte
Depth 1.25mm
Direction Unidirectional
Element Configuration Single
ESD Protection Yes
Height 1mm
Lead Free Lead Free
Leakage Current 10uA
Length 1.7mm
Max Breakdown Voltage 7.3V
Min Breakdown Voltage 6.2V
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Max Output Current 24A
Max Power Dissipation 200mW
Max Reverse Leakage Current 10uA
Max Surge Current 24A
Number of Elements 1
Number of Pins 2
Number of Unidirectional Channels 1
Operating Supply Voltage 5V
Package Quantity 1
Packaging Tape and Reel
Peak Pulse Current 24A
Peak Pulse Power 350W
Polarity Unidirectional
Power Dissipation 350W
Power Line Protection No
Radiation Hardening No
REACH SVHC No SVHC
Resistor Type Zener
Reverse Breakdown Voltage 6.2V
Reverse Standoff Voltage 5V
RoHS Compliant Yes
Termination SMD/SMT
Test Current 1mA
Voltage Rating (DC) 5V
Width 1.35mm
Working Voltage 5V

Compliance

   RoHS : Compliant
   Radiation Hardening : No
   REACH SVHC : No SVHC

Images

ON Semiconductor SD05T1G | Digi-Key

Digi-Key

ON Semiconductor SD05T1G | Arrow Europe

Arrow Europe

ON Semiconductor SD05T1G | Verical

Verical

ON Semiconductor SD05T1G | Element14

Element14

Lifecycle Status Indicator

   Volume Production
 Loading indicators

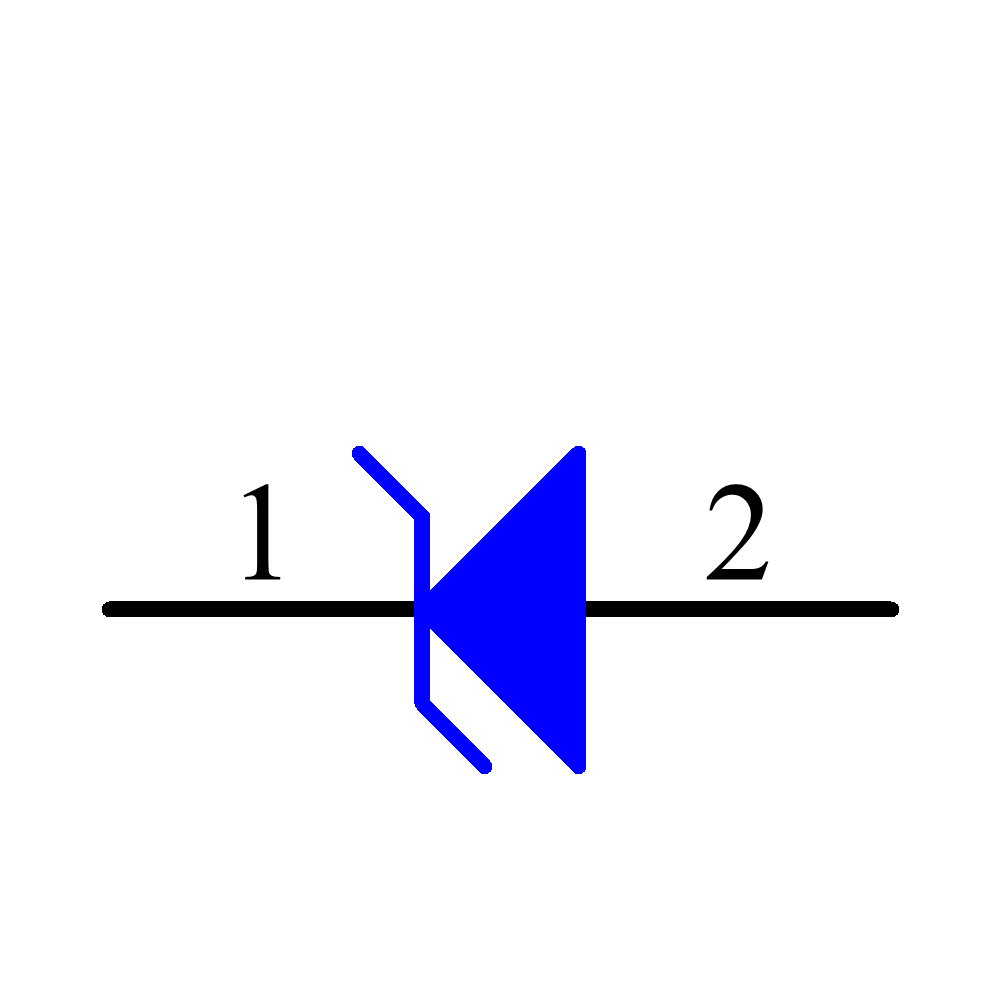

Symbol

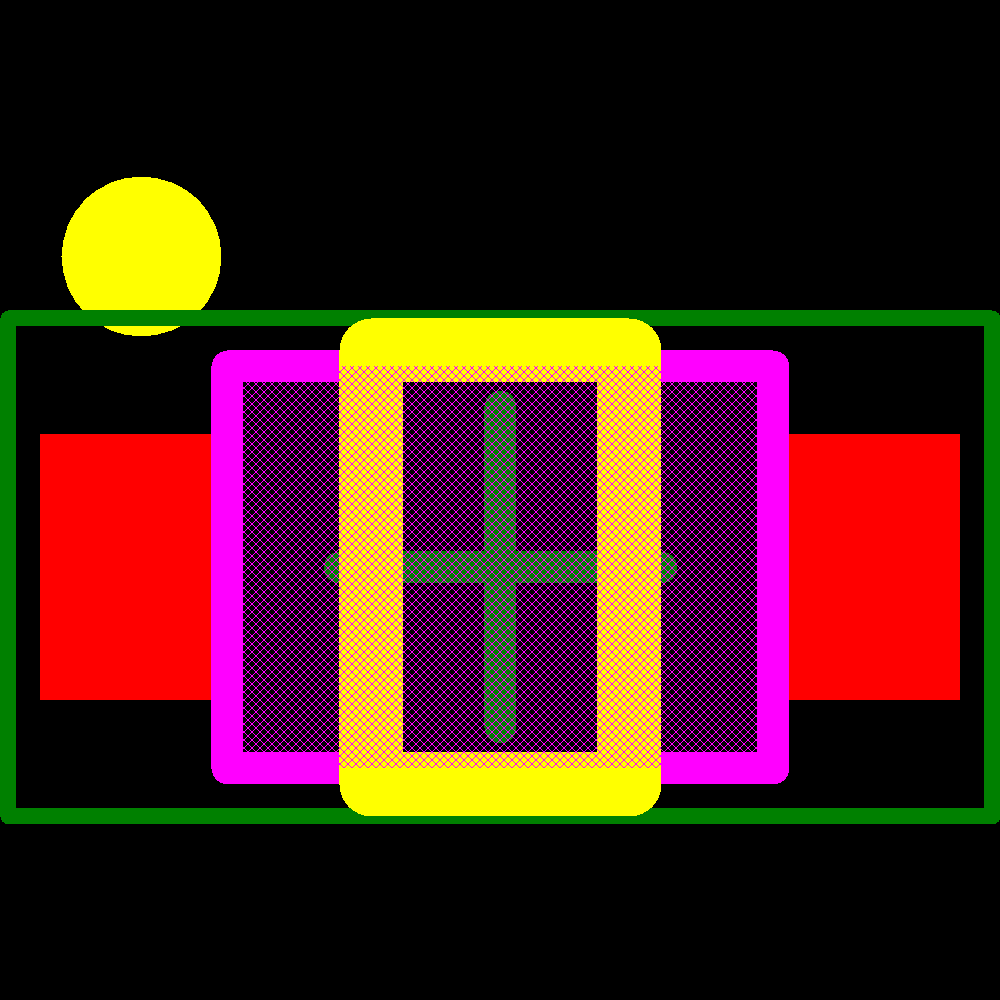

Footprint
