SM05T1G - ON Semiconductor

TVS DIODE 5V 9.8V SOT23-3

Technical Details

Breakdown Voltage 6.2V
Capacitance 225pF
Case/Package SOT-23-3
Clamping Voltage 9.8V
Composition Zener
Contact Plating Tin, Matte
Depth 1.3mm
Direction Unidirectional
Element Configuration Common Anode
ESD Protection Yes
Height 1.01mm
Lead Free Lead Free
Leakage Current 10uA
Length 2.9mm
Max Breakdown Voltage 7.3V
Min Breakdown Voltage 6.2V
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Max Power Dissipation 225mW
Max Reverse Leakage Current 10uA
Max Surge Current 17A
Number of Channels 2
Number of Elements 2
Number of Pins 3
Number of Unidirectional Channels 2
Operating Supply Voltage 5V
Package Quantity 1
Packaging Tape and Reel
Peak Pulse Current 17A
Peak Pulse Power 300W
Polarity Unidirectional
Power Dissipation 300W
Power Line Protection No
Radiation Hardening No
REACH SVHC No SVHC
Reverse Breakdown Voltage 6.2V
Reverse Standoff Voltage 5V
Termination SMD/SMT
Test Current 1mA
Voltage Rating (DC) 5V
Width 1.4mm
Working Voltage 5V

Compliance

   RoHS : Compliant
   Radiation Hardening : No
   REACH SVHC : No SVHC

Images

ON Semiconductor SM05T1G | Digi-Key

Digi-Key

ON Semiconductor SM05T1G | Element14

Element14

ON Semiconductor SM05T1G | Arrow Europe

Arrow Europe

ON Semiconductor SM05T1G | IIIC

IIIC

Lifecycle Status Indicator

   Volume Production
 Loading indicators

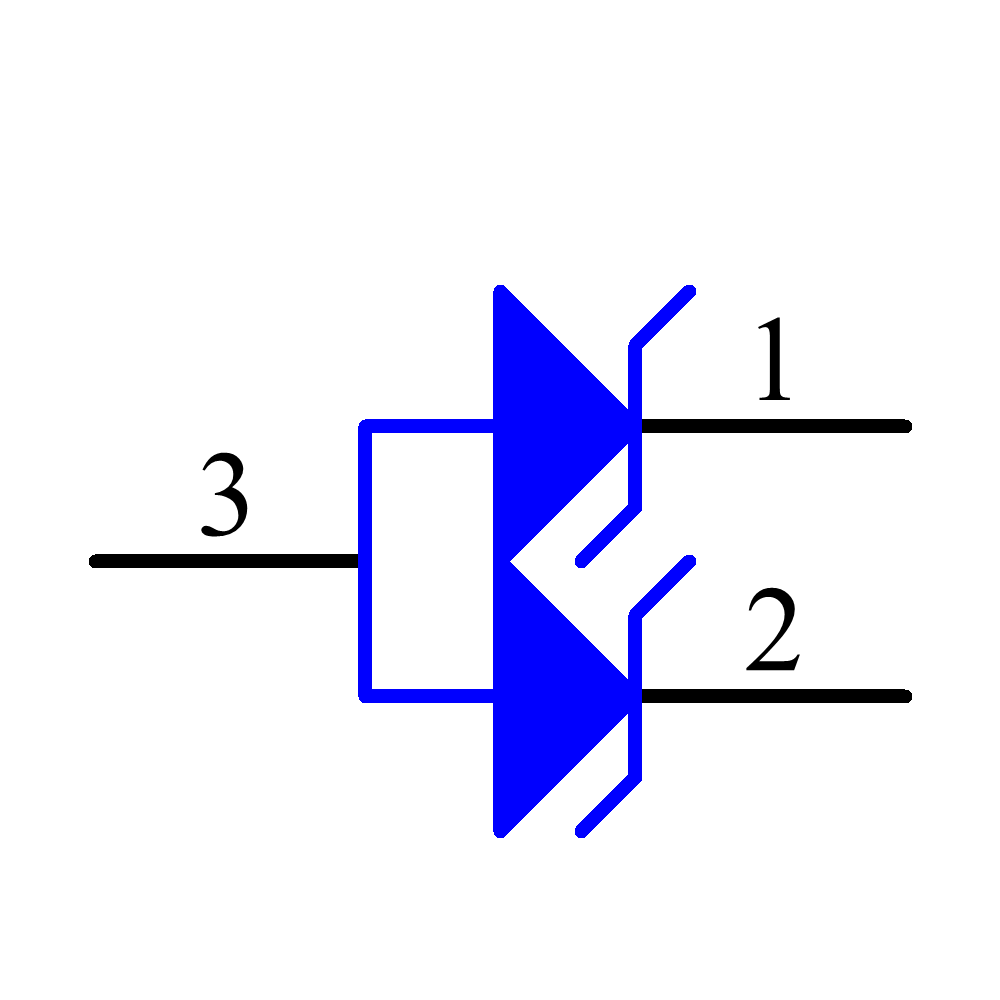

Symbol

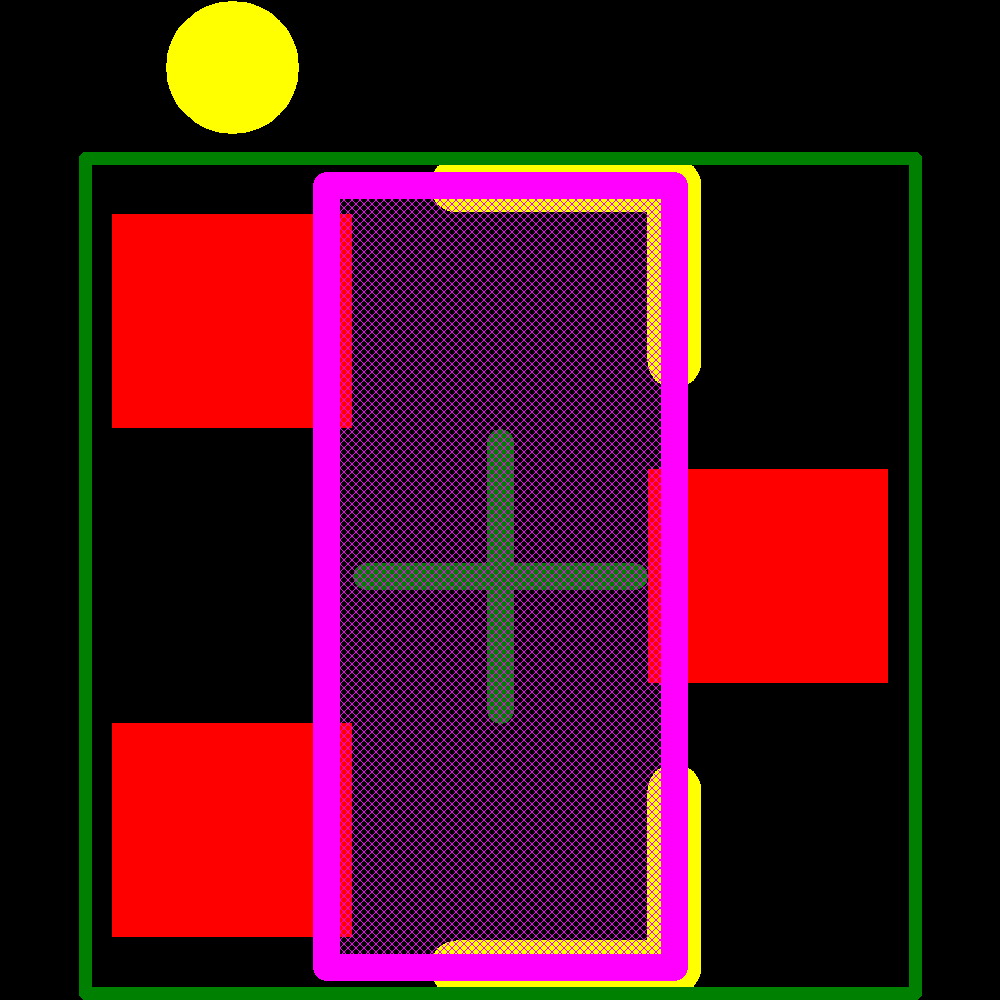

Footprint
