Integrated Circuits (ICs)  >  Logic ICs  >  Logic Gates

Texas Instruments - SN74HC08DR

SN74HC08DR - Texas Instruments

IC GATE AND 4CH 2-INP 14SOIC

 Datasheet at TI.com

Technical Details

Case/Package SOIC
High Level Output Current -5.2mA
Lead Free Lead Free
Logic Function AND GATE
Low Level Output Current 5.2mA
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Max Supply Voltage 6V
Min Supply Voltage 2V
Mount Surface Mount
Number of Bits 4
Number of Circuits 4
Number of Elements 4
Number of Gates 4
Number of Input Lines 2
Number of Inputs 2
Number of Output Lines 1
Number of Outputs 1
Number of Pins 14
Operating Supply Voltage 5V
Output Current 25mA
Packaging Tape and Reel
Propagation Delay 17ns
Quiescent Current 2uA
Radiation Hardening No
Reach SVHC Compliant No
RoHS Compliant Yes
Series 74HC
Technology CMOS
Turn-On Delay Time 28ns
Weight 0.004318oz

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

Texas Instruments SN74HC08DR | Mouser

Mouser

Texas Instruments SN74HC08DR | Verical

Verical

Texas Instruments SN74HC08DR | Element14

Element14

Texas Instruments SN74HC08DR | Digi-Key

Digi-Key

Texas Instruments SN74HC08DR | Farnell

Farnell

Texas Instruments SN74HC08DR | Distrelec

Distrelec

Texas Instruments SN74HC08DR | Rs

Rs

Datasheets

Texas Instruments
Element14
Verical

Lifecycle Status Indicator

   Volume Production
 Loading indicators
Symbol

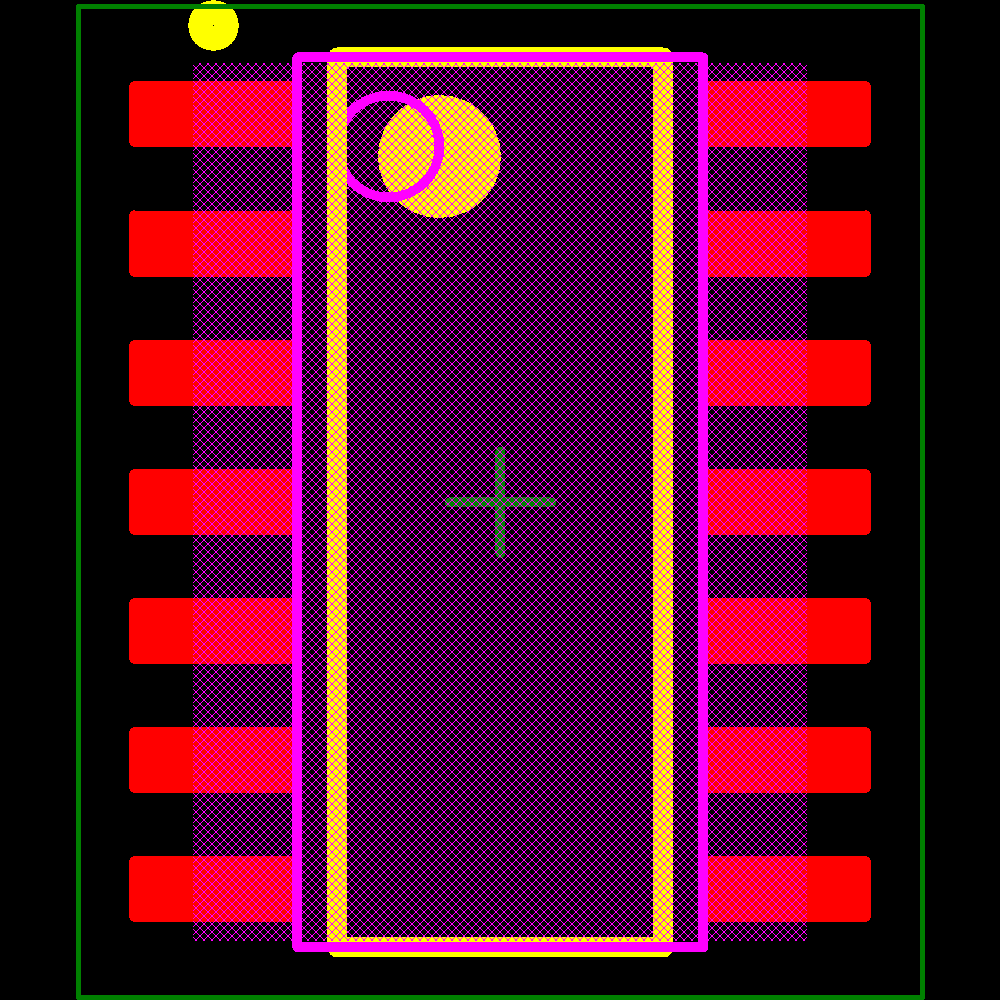

Footprint
