ECMF02-4CMX8 - STMicroelectronics

ECMF02 Series 1 mA 4 Ohm USB 2.0 ESD Protection Common Mode Filter - UQFN-8

Technical Details

Approvals	IEC, UL
Attenuation Value	-27dB
Bandwidth	6GHz
Case/Package	QFN
China RoHS	Compliant
Country of Origin	Mainland China
DC Resistance (DCR)	4Ω
Depth	1.25mm
Export Control Classification Number (ECCN) Code	EAR99
Height	600µm
Harmonized Tariff Schedule (HTS) Code	8504.50.80.00
Impedance	50Ω
Introduction Date	2012-09-19
Lead Free	Lead Free
Length	2.55mm
Lifecycle Status	Obsolete
Max Junction Temperature (Tj)	125°C
Max Operating Temperature	125°C
Min Breakdown Voltage	6V
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Channels	4
Number of Circuits	2
Number of Lines	4
Number of Pins	8
Number of Terminals	8
Packaging	Tape and Reel
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8504500000, 8504500000\|8504500000\|8504500000\|8504500000\|8504500000
Series Resistance	3Ω
Termination	Flat
Width	1.25mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

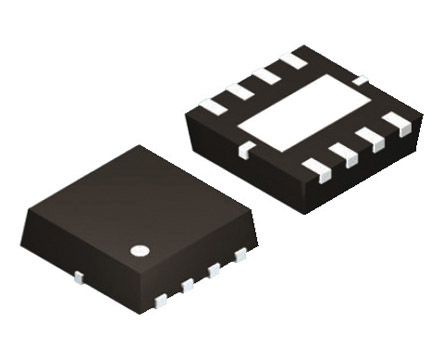

STMicroelectronics ECMF02-4CMX8 | RS

RS

Datasheets

Lifecycle Status Indicator

Obsolete

Symbol

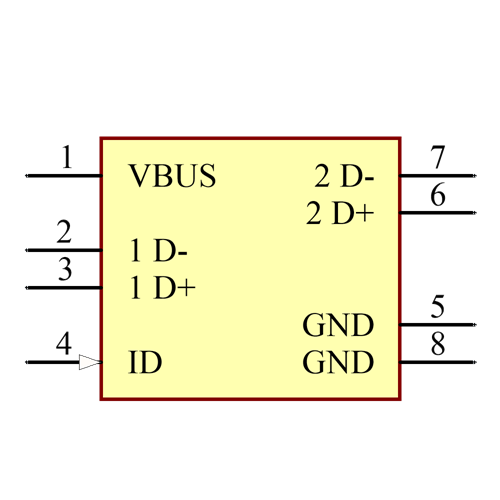

ECMF02-4CMX8 Symbol - STMicroelectronics

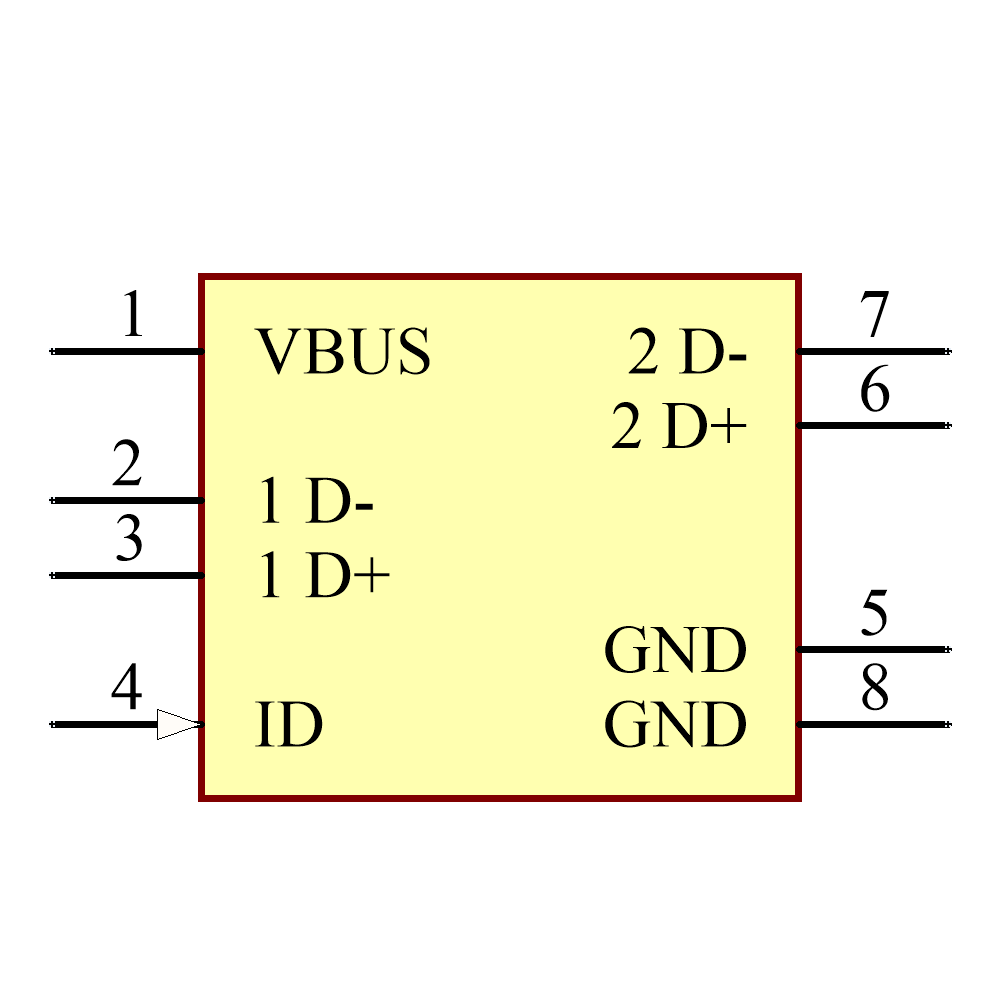

ECMF02-4CMX8 Symbol - STMicroelectronics

ECMF02-4CMX8 Symbol - STMicroelectronics

ECMF02-4CMX8 Symbol - STMicroelectronics

‹ ›

Footprint

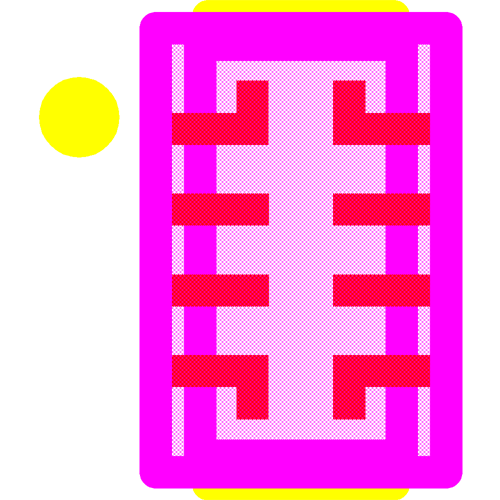

ECMF02-4CMX8 Footprint - STMicroelectronics

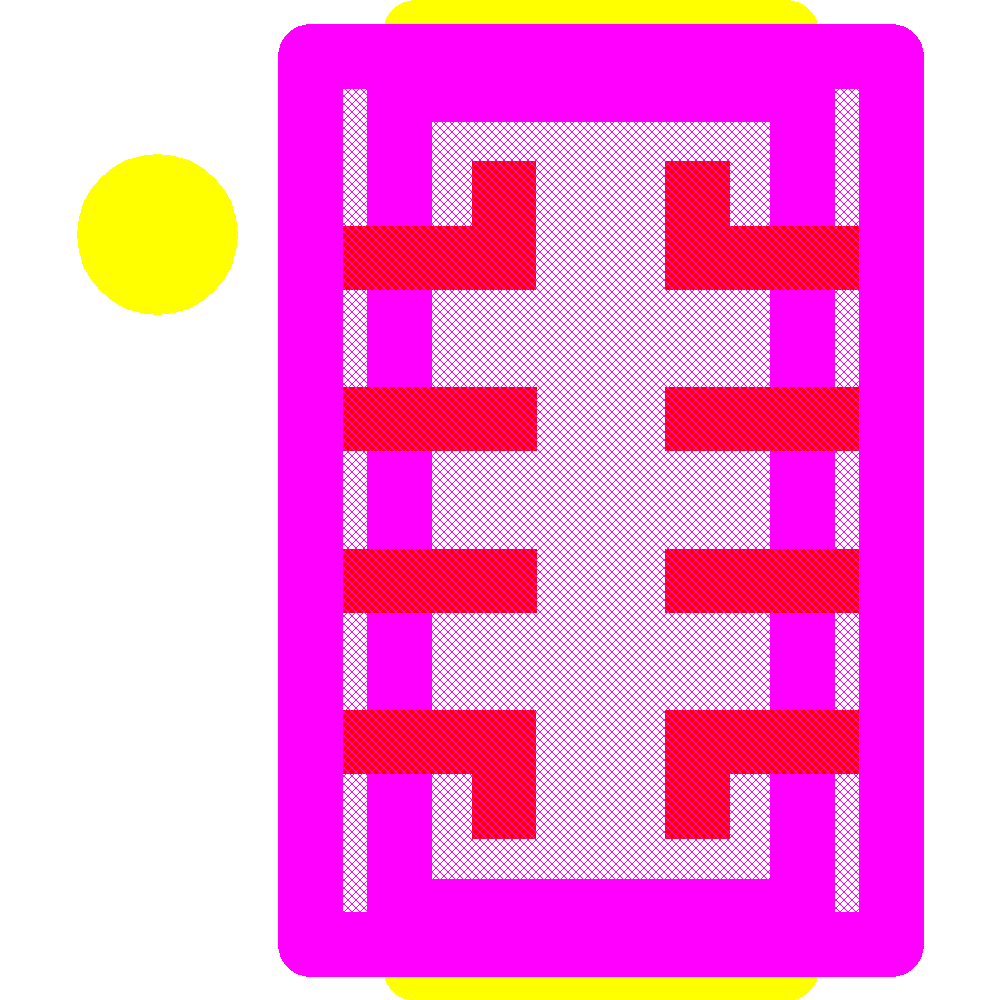

ECMF02-4CMX8 Footprint - STMicroelectronics
