P0102DA 1AA3 - STMicroelectronics
P0102DA Series 400 Vdrm 0.8 A Sensitive Silicon Controlled Rectifier - TO-92
Technical Details
| Case/Package | TO-92 |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 1.93V |
| Height | 4.4mm |
| Hold Current | 5mA |
| Harmonized Tariff Schedule (HTS) Code | 8541.30.00.80 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Leakage Current | 100µA |
| Length | 4.7mm |
| Lifecycle Status | Obsolete |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 400V |
| Max RMS Current | 800mA |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 7A |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RMS Current (Irms) | 800mA |
| RoHS | Compliant |
| Schedule B | 8541300080, 8541300080|8541300080|8541300080|8541300080|8541300080 |
| Voltage Rating (DC) | 400V |
| Weight | 453.59237mg |
| Width | 3.7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

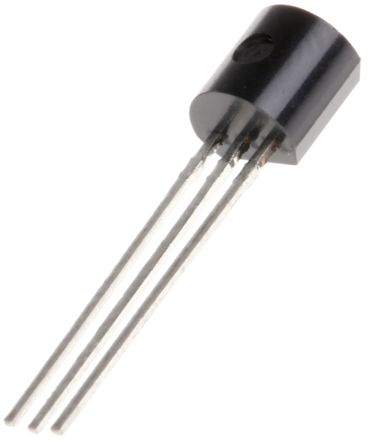

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Production | ||
| onsemi | Obsolete | ||
| Central Semiconductor | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete |
