TDK - ACM2520-102-2P-T002

ACM2520-102-2P-T002 - TDK

ACM Series 1008 1 kOhm 200 mA 900 mOhm DCR 20 V SMT Common Mode Filter

 Datasheets

Technical Details

Case/Package 1008
Coil Resistance 900mΩ
Composition Wirewound
Country of Origin Japan
Current 200mA
Current Rating 200mA
DC Current 200mA
DC Resistance (DCR) 900mΩ
Depth 2.2mm
Export Control Classification Number (ECCN) Code EAR99
Height 1.2mm
Harmonized Tariff Schedule (HTS) Code 8504.50.80.00
Impedance 1kΩ
Insulation Resistance 10MΩ
Introduction Date 2009-03-27
Lead Free Lead Free
Length 2.5mm
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max DC Current 200mA
Max Length 2.7mm
Max Operating Temperature 85°C
Max Width 2.2mm
Min Length 2.3mm
Min Operating Temperature -40°C
Min Width 1.8mm
Mount Surface Mount
Number of Circuits 2
Number of Lines 2
Number of Terminals 4
Packaging Digi-Reel®
REACH SVHC Yes
Resistance 900mΩ
RMS Current (Irms) 200mA
RoHS Compliant
Schedule B 8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|85
Series Resistance 900mΩ
Termination SMD/SMT
Test Frequency 100MHz
Voltage Rating 20V
Width 2mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

TDK ACM2520-102-2P-T002 | TTI

TTI

Datasheets

 Farnell
 Farnell
 Chip One Stop

Lifecycle Status Indicator

   Production

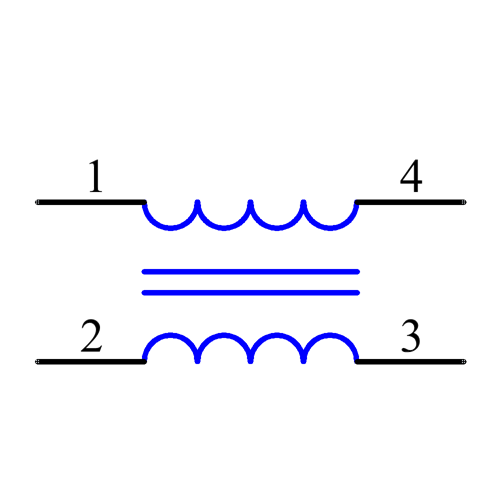

Symbol

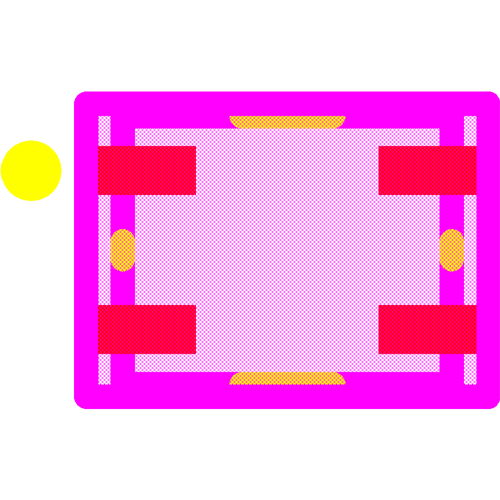

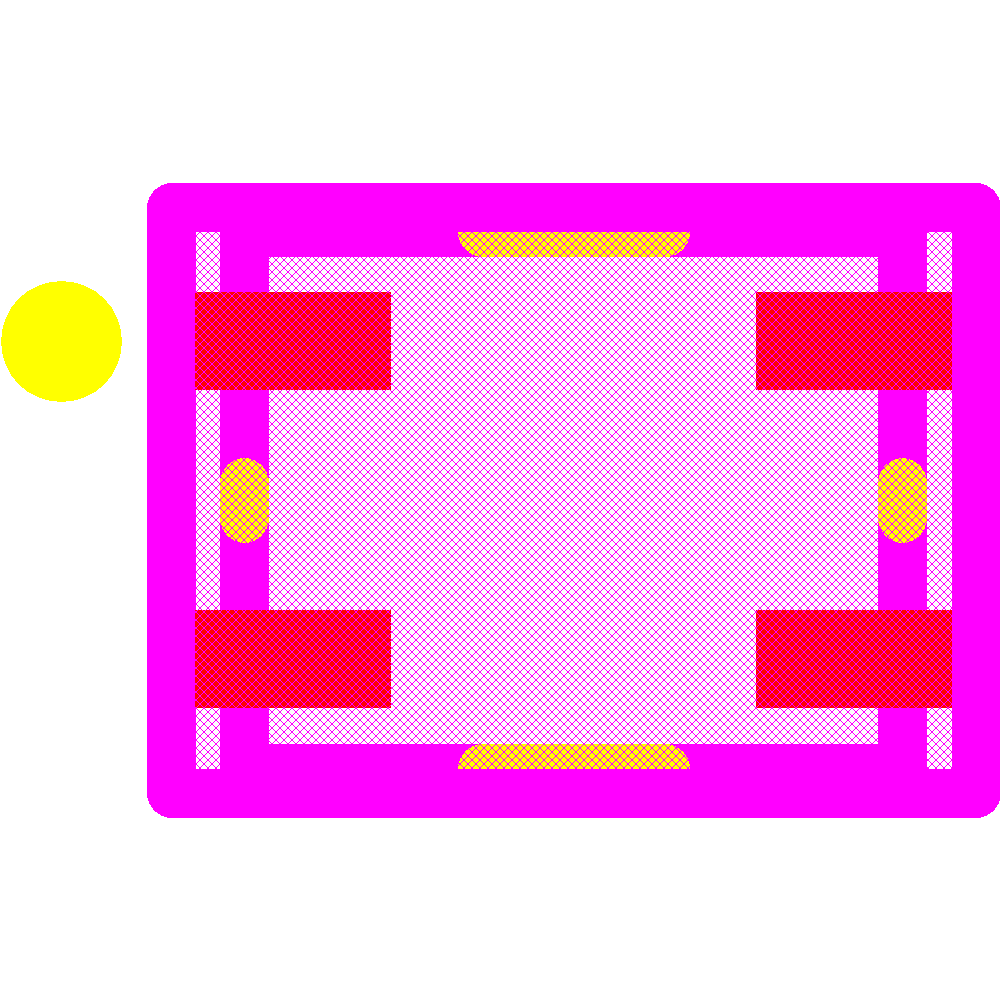

Footprint
