C1608X7R1E224K - TDK
Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% -Tol, X7R, 15% TC, 0.22uF, Surface Mount, 0603
Technical Details
| Capacitance | 220nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| China RoHS | Compliant |
| Depth | 800µm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8532.24.00.20 |
| Introduction Date | 2002-12-03 |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 25V |
| Voltage Rating (DC) | 25V |
| Width | 800µm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

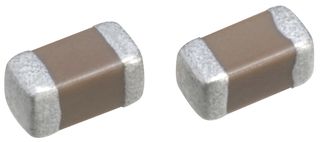

Images
