Electromechanical > Switches > Pushbutton Switches

1-1825027-7 - TE Connectivity

Pushbutton Switch, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Panel Mount

Technical Details

Actuator Length	4.24mm
Actuator Material	PBT
China RoHS	Compliant
Color	Black, White
Contact Current Rating	50mA
Contact Material	Copper
Contact Plating	Silver
Contact Resistance	100mΩ
Current Rating	50mA
Depth	10.86mm
Dielectric Material	Nylon
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	100kcycles
ELV	Compliant
Height	7.01mm
Housing Material	Nylon
Harmonized Tariff Schedule (HTS) Code	8536.50.90.31
Illumination Type	Illuminated, Non-Illuminated
Insulation Resistance	100MΩ
Introduction Date	2008-06-18
Lead Free	Lead Free
Length	7.11mm
Life (Cycles)	100kcycles
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Material	Nylon
Max Current Rating	50mA
Max Operating Temperature	85°C
Max Voltage Rating (DC)	24V
Mechanical Life	100kcycles
Min Operating Temperature	-35°C
Mount	Through Hole
Number of Positions	2
Operating Force	1.568N
Orientation	Right Angle
Packaging	Bulk
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	250µm
Termination	PC Pins, Solder
Throw Configuration	SPST
Type	Switch
Voltage Rating (DC)	24V
Width	7.11mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TE Connectivity 1-1825027-7 | Farnell

Farnell

Datasheets

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

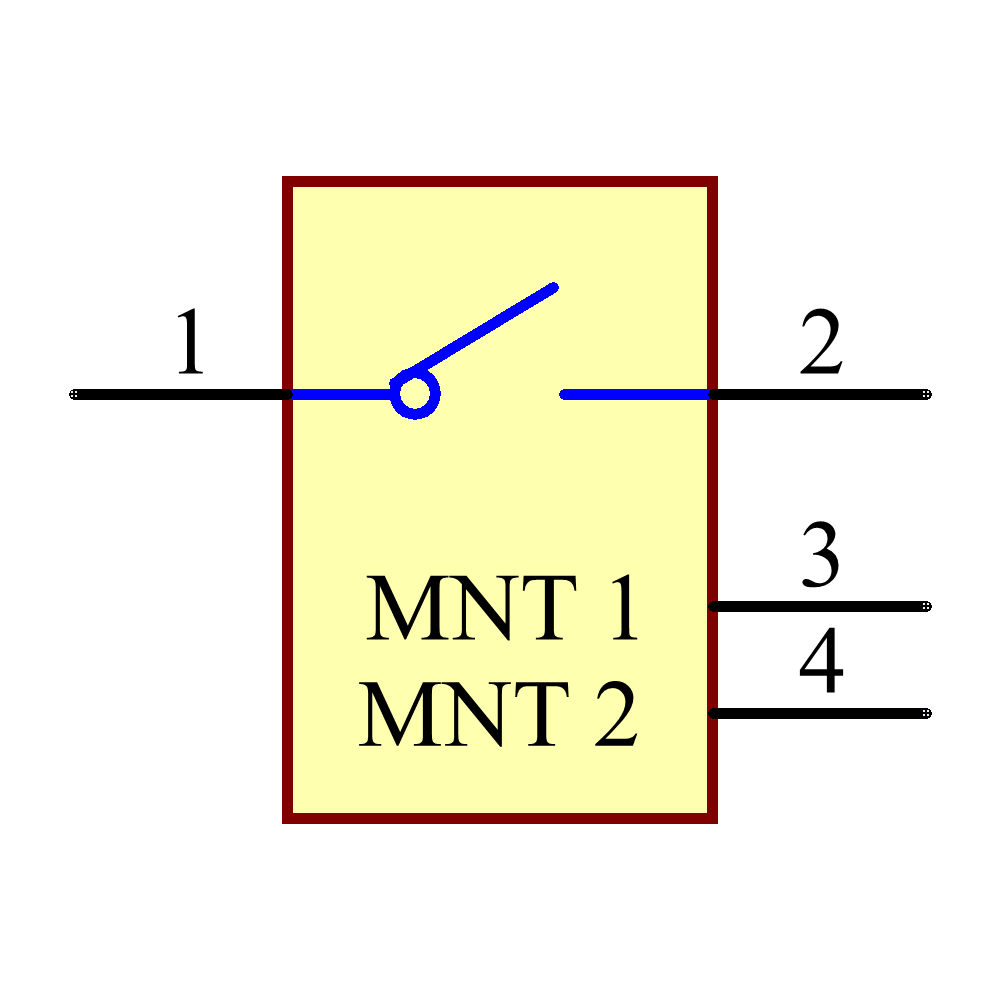

Symbol

1-1825027-7 Symbol - TE Connectivity

1-1825027-7 Symbol - TE Connectivity

1-1825027-7 Symbol - TE Connectivity

1-1825027-7 Symbol - TE Connectivity

‹ ›

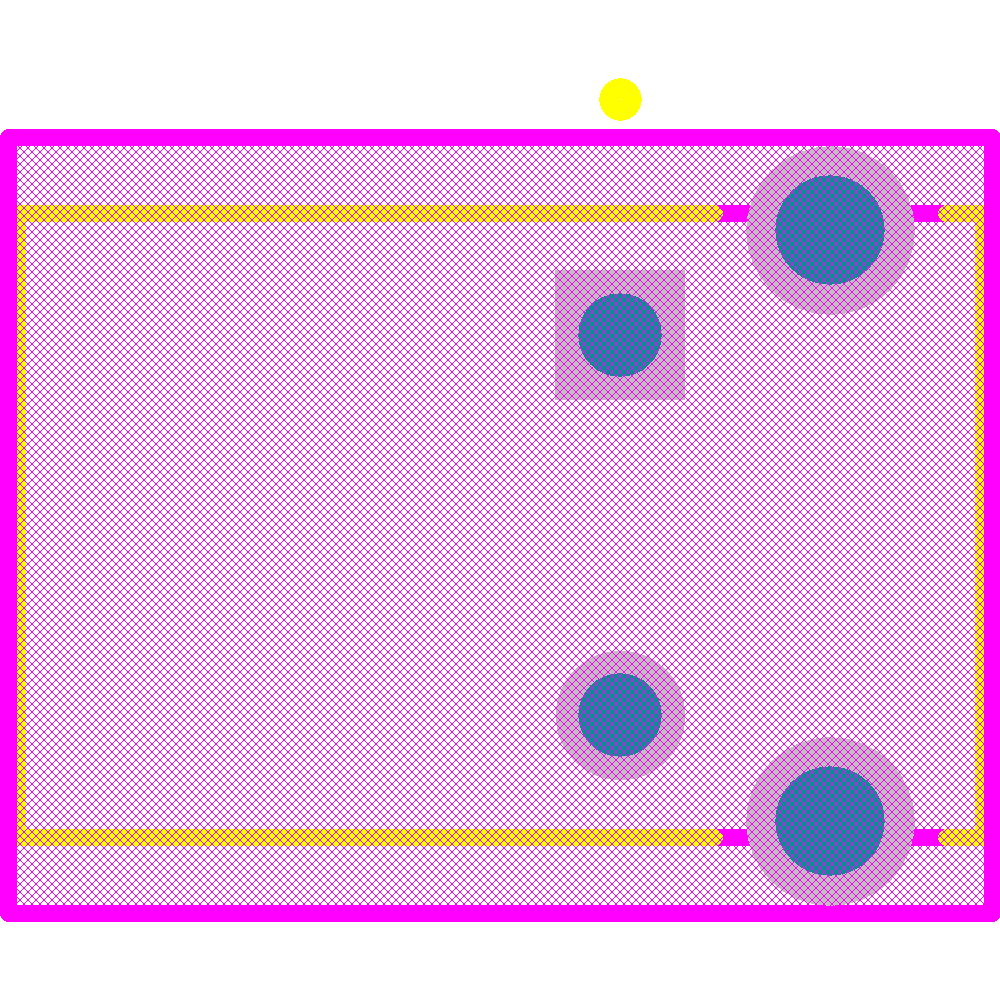

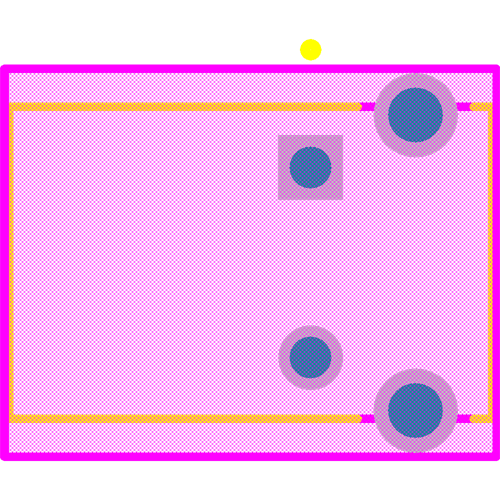

Footprint

1-1825027-7 Footprint - TE Connectivity

1-1825027-7 Footprint - TE Connectivity

1-1825027-7 Footprint - TE Connectivity

1-1825027-7 Footprint - TE Connectivity

‹ ›
