770680-4 - TE Connectivity

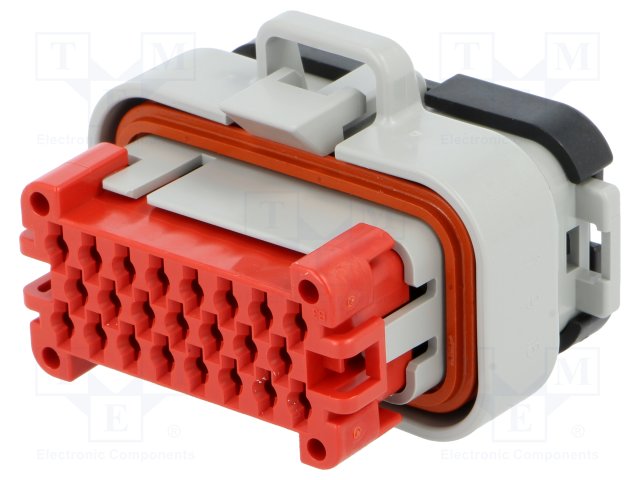

Connector Housing, AMP AMPSEAL Series, Plug, 23 Ways, 4 mm, AMP AMPSEAL Series Socket Contacts
Technical Details
| Body Material | PBT, Polybutylene |
| China RoHS | Compliant |
| Color | Grey |
| Connector Type | Plug, Socket |
| Contact Current Rating | 17A |
| Contact Gender | Female |
| Contact Material | Brass |
| Current Rating | 17A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ELV | Compliant |
| Fastening Type | Latch |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 34.5948mm |
| Housing Color | Grey |
| Housing Material | PBT |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.30 |
| Hybrid Connector | No |
| Introduction Date | 1995-07-01 |
| Lead Free | Lead Free |
| Length | 47.3964mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 250V |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 23 |
| Number of Pins | 23 |
| Number of Ports | 1 |
| Number of Positions | 23 |
| Number of Rows | 3 |
| Operating Supply Voltage | 250V |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 3.9878mm |
| Polarized | Yes |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Row Spacing | 3.9878mm |
| Schedule B | 8538907080, 8538907080|8538907080|8538907080|8538907080|8538907080 |
| Serviceable | Yes |
| Shielding | Unshielded |
| Terminal Pitch | 4mm |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 33.6mm |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
