ISO7420FEDR - Texas Instruments
Dual-channel, 2/0, 50-Mbps, default output low digital isolator 8-SOIC -40 to 125
Technical Details
| Case/Package | SOIC |
| Channel Type | Unidirectional |
| Data Rate | 50Mbps |
| Height | 1.75mm |
| Isolated Power | No |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3.3V |
| Nominal Supply Current | 9mA |
| Number of Channels | 2 |
| Number of Pins | 8 |
| Propagation Delay | 11ns |
| Pulse Width Distortion (PWD) | 3ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Thickness | 1.58mm |
| Turn-On Delay Time | 14ns |
| Type | General Purpose |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

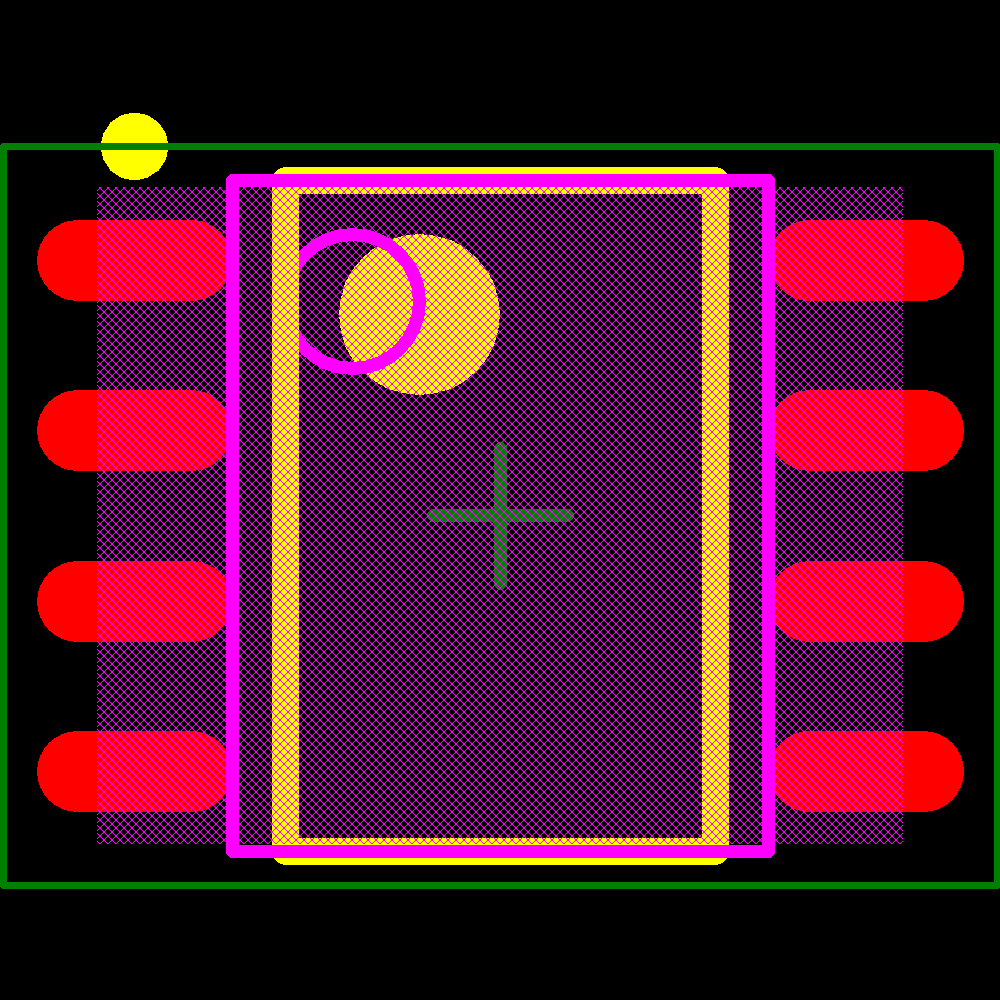

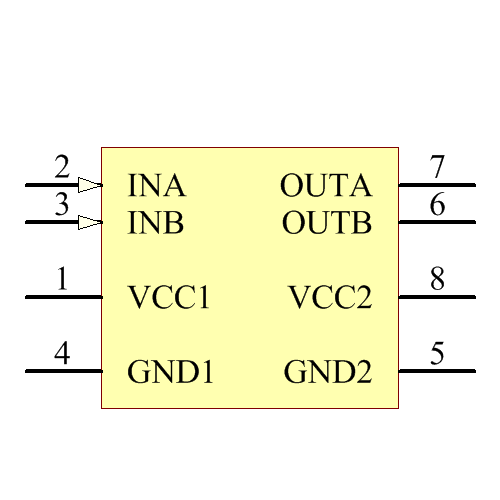

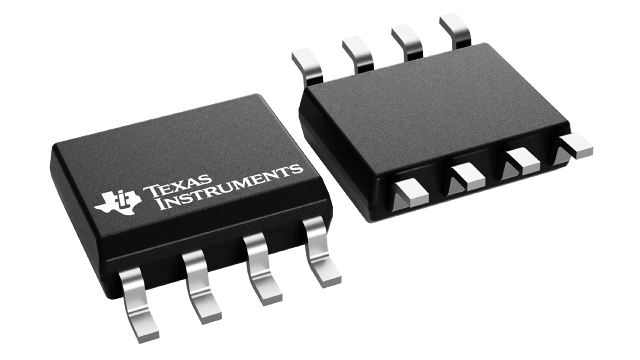

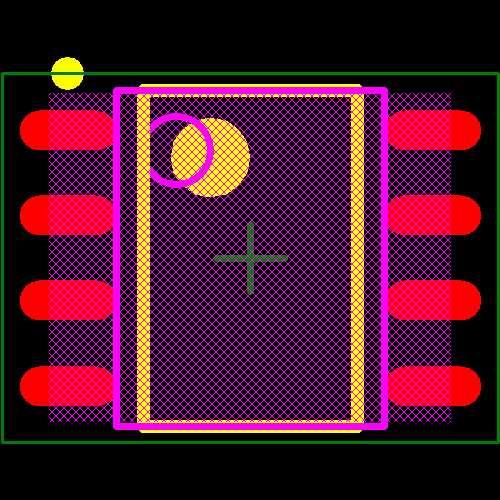

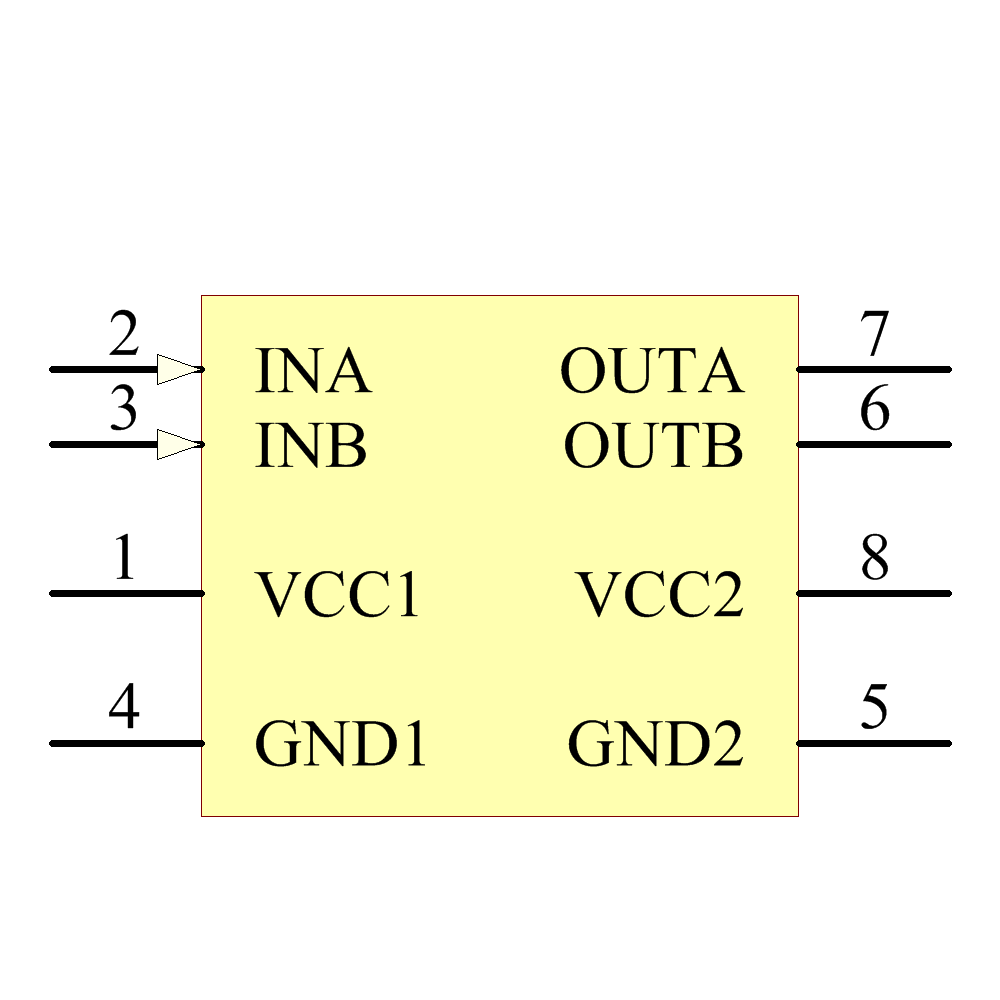

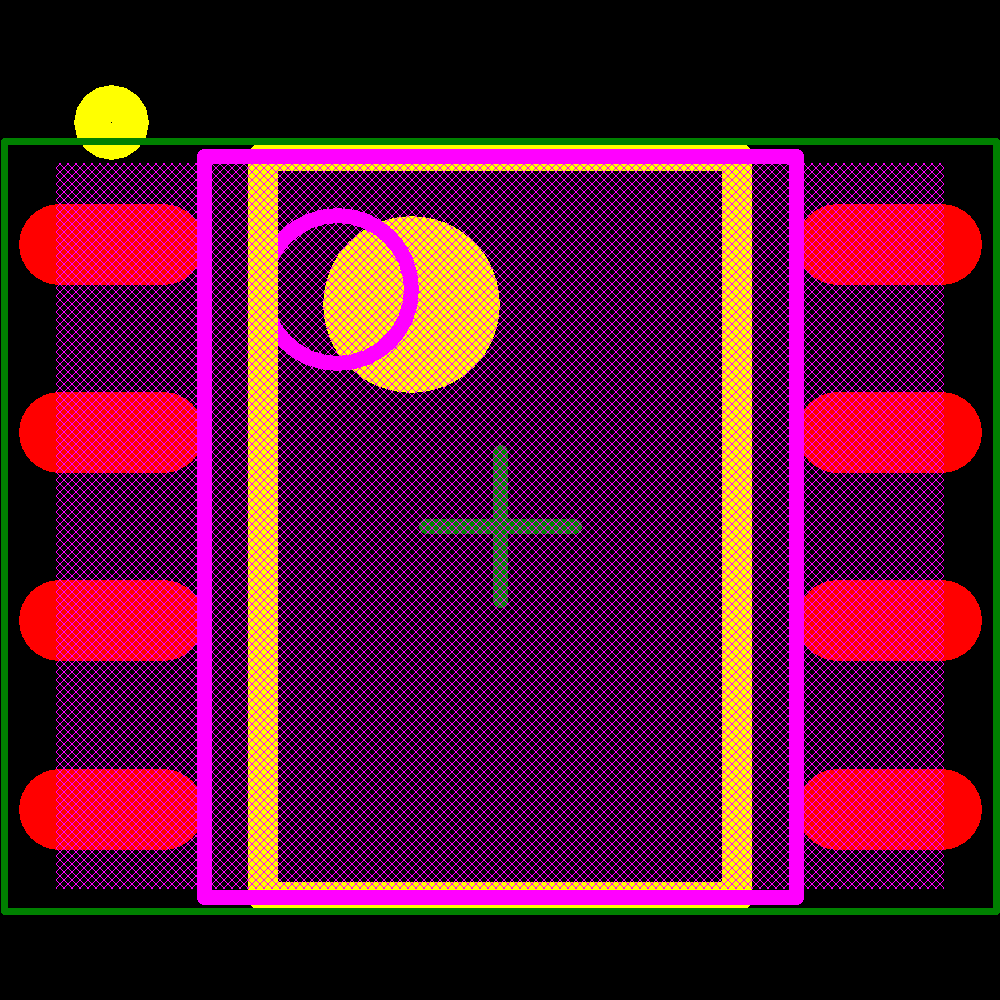

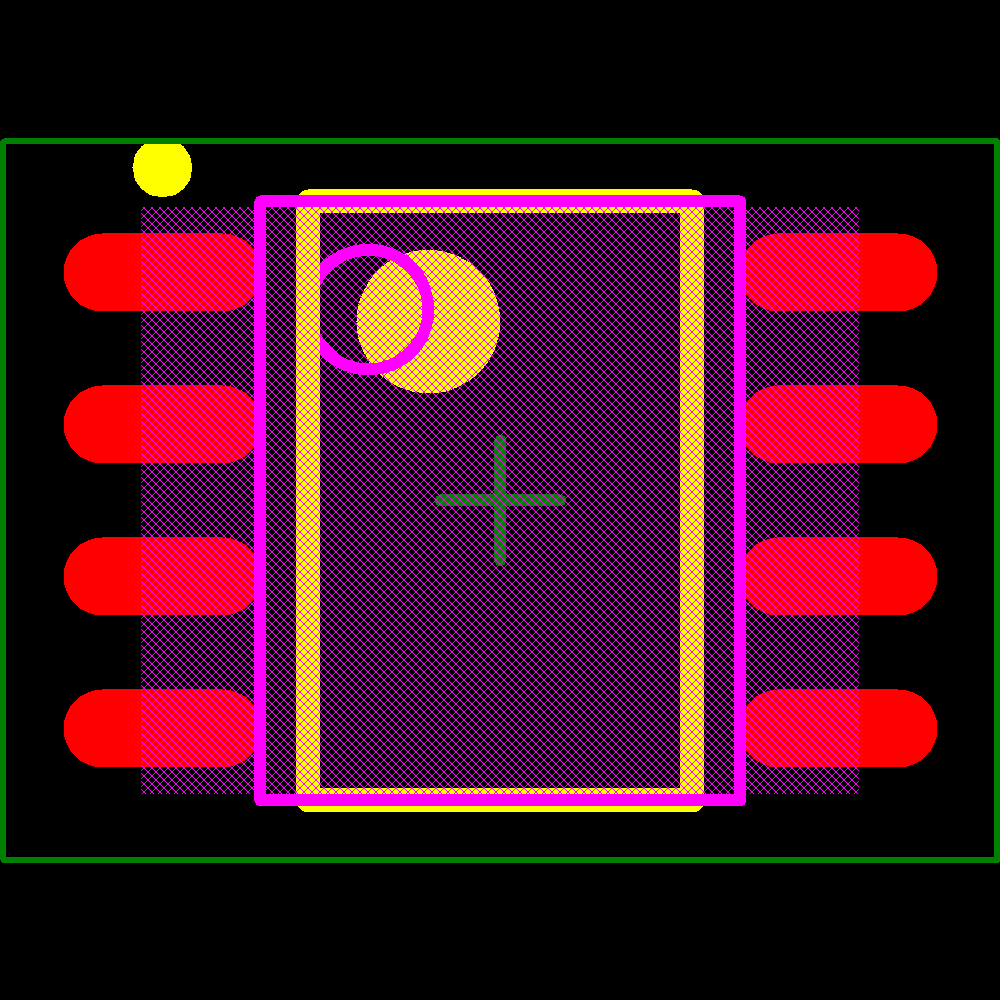

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Analog Devices | Obsolete |
