SN65LV1023ADB - Texas Instruments
TEXAS INSTRUMENTS SN65LV1023ADB SerDes, Transmitter, 60 Mbps, LVDS, LVDS, SSOP, 28 Pins
Technical Details
| Case/Package | SSOP |
| Data Rate | 660Mbps |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1.27W |
| Max Supply Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 95mA |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Elements | 1 |
| Number of Inputs | 10 |
| Number of Outputs | 1 |
| Number of Pins | 28 |
| Number of Receivers | 10 |
| Operating Supply Voltage | 3.3V |
| Power Dissipation | 1.27W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1.95mm |
| Weight | 208.397344mg |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

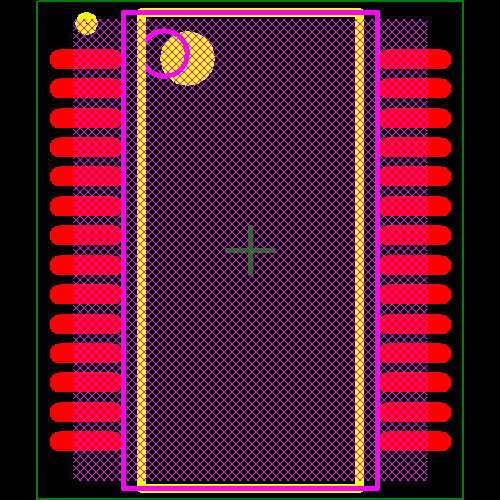

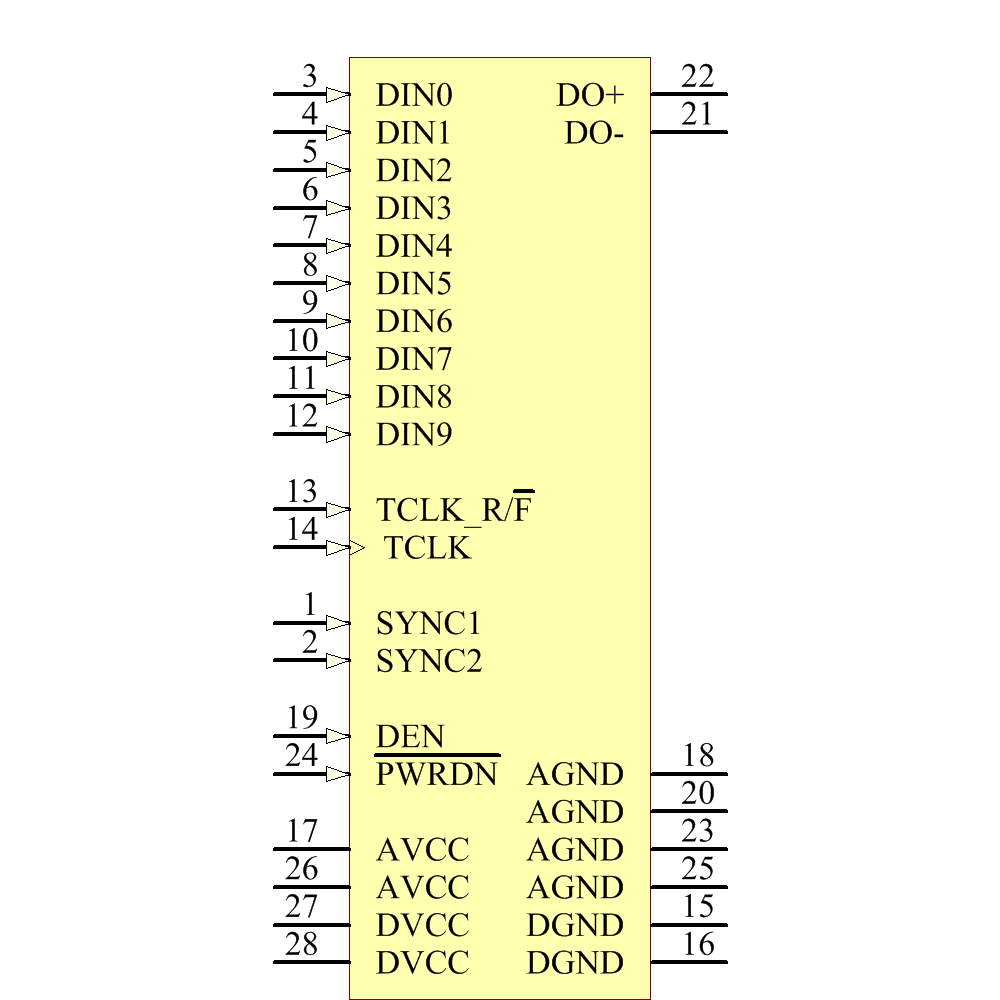

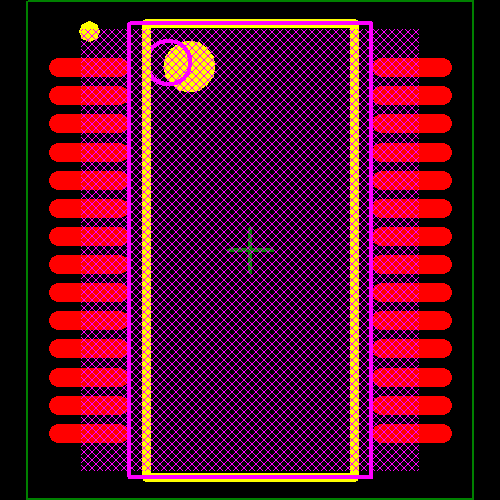

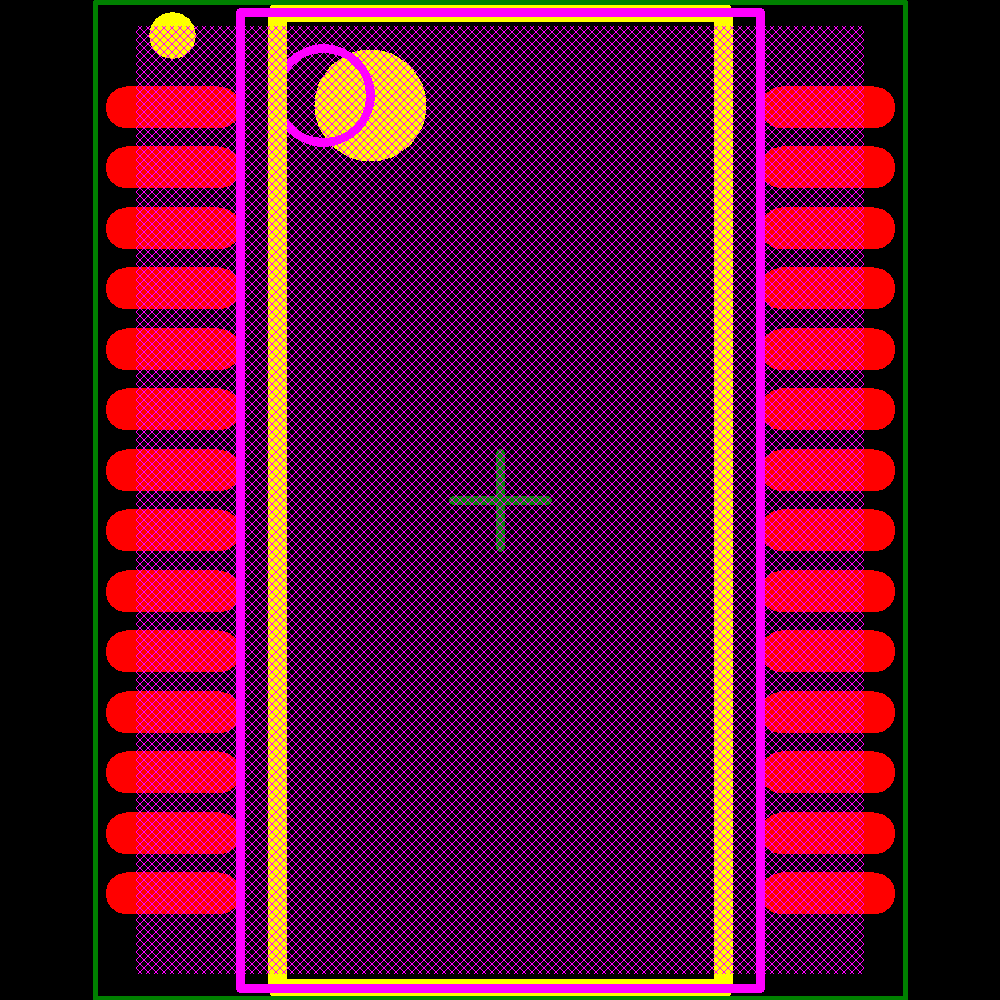

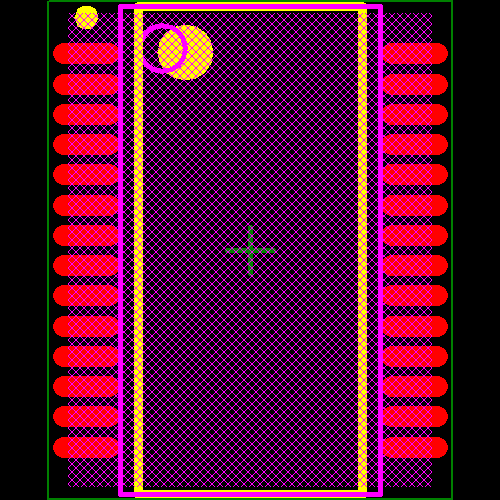

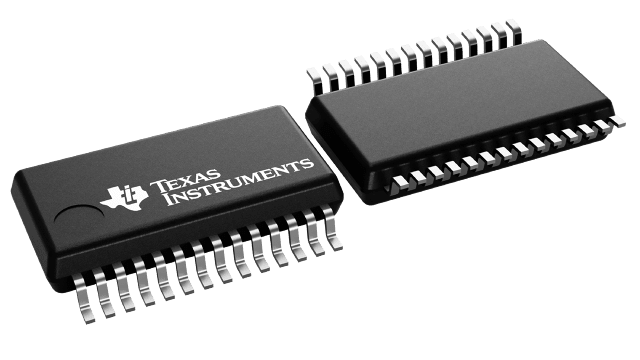

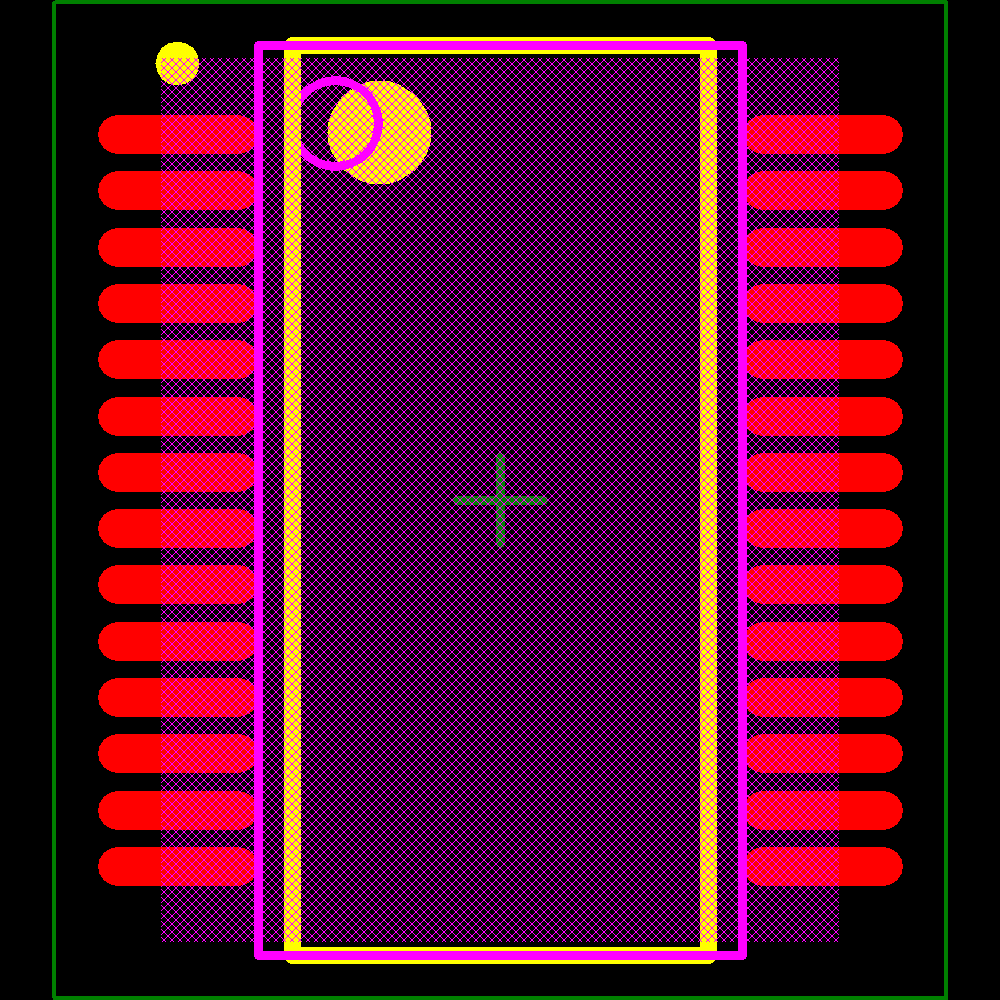

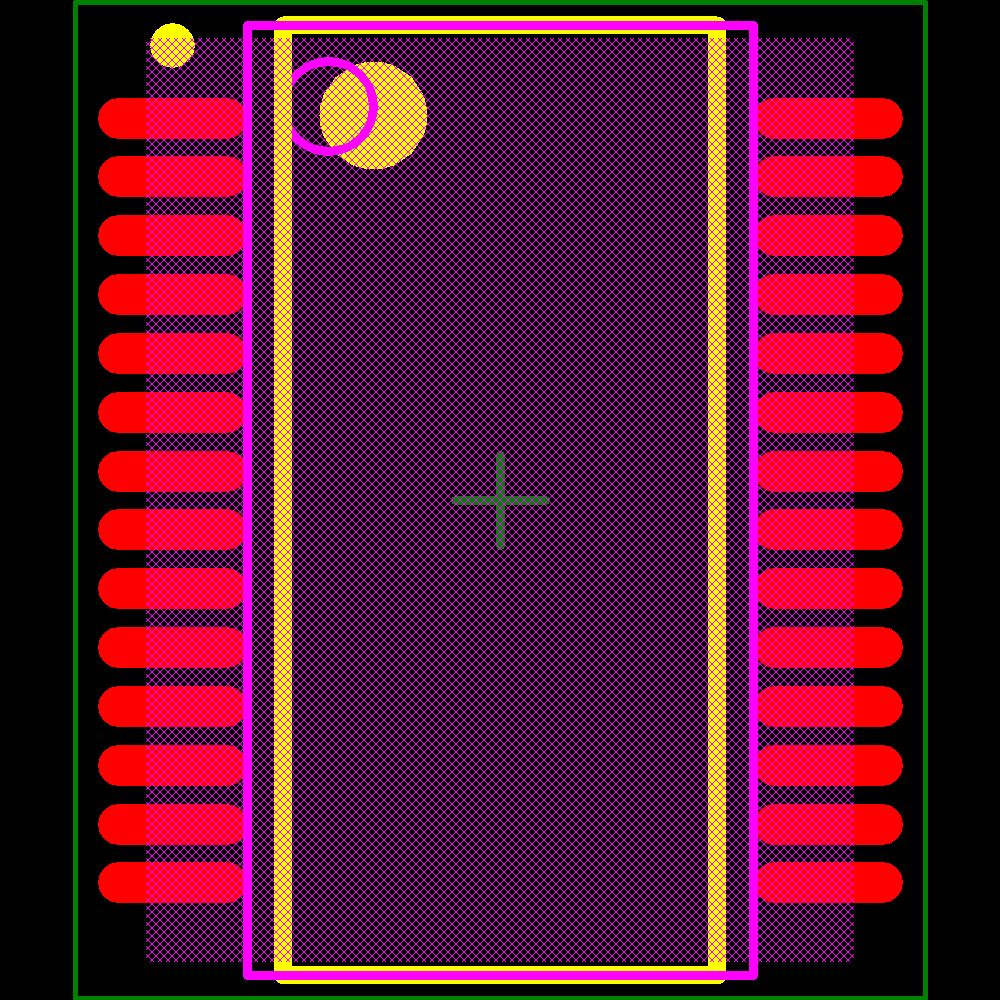

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Analog Devices | EOL | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production |
