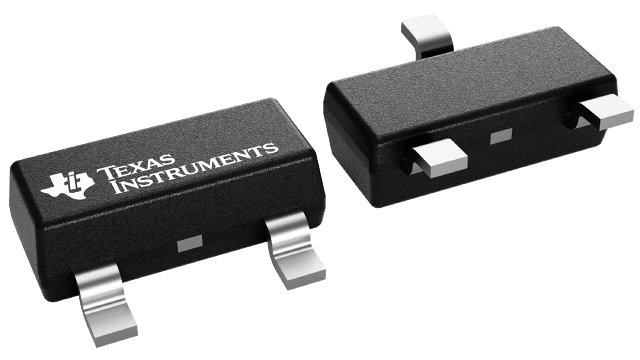

TL431BQDBZTG4 - Texas Instruments
V-Ref Adjustable 2.495V to 36V 100mA Automotive 3-Pin SOT-23 T/R
Technical Details
| Case/Package | SOT-23 |
| Cathode Current | 700µA |
| Height | 1.22mm |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 37V |
| Max Operating Temperature | 125°C |
| Max Output Current | 100mA |
| Max Output Voltage | 36V |
| Min Input Voltage | 2.495V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.495V |
| Number of Pins | 3 |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 36V |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Type | Adjustable, Shunt |
| Reference Voltage | 36V |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Temperature Coefficient | 34ppm/°C |
| Termination | SMD/SMT |
| Thickness | 1mm |
| Tolerance | 0.5% |
| Width | 1.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Production | ||
| Nexperia | Production | ||
| Diodes Inc. | NRND | ||
| Diodes Inc. | NRND | ||
| Analog Devices | Production | ||
| Texas Instruments | Production | ||
| Nexperia | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 277
|
$ | 0.96 | 0.694 | 0.651 | 0.651 | 0.502 | 0.475 | ||
| Texas Instruments |
US: 256448
|
$ | 0.995 | 0.995 | 0.995 | 0.644 | 0.322 | 0.322 | ||
