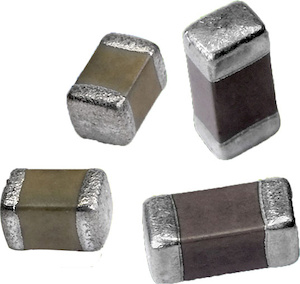

VJ0805A150JXACW1BC - Vishay
Multilayer Ceramic Capacitor, 15 pF, 50 V, ± 5%, C0G (NP0), 0805 [2012 Metric]
Technical Details
| Capacitance | 15pF |
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Country of Origin | Mainland China, Taiwan |
| Depth | 1.25mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 750µm |
| Harmonized Tariff Schedule (HTS) Code | 8532.24.00.20 |
| Introduction Date | 2005-06-27 |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Digi-Reel® |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8532240020, 8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|8532240020|85 |
| Termination | SMD/SMT |
| Thickness | 762µm |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Voltage Rating (DC) | 50V |
| Weight | 5.499807mg |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
