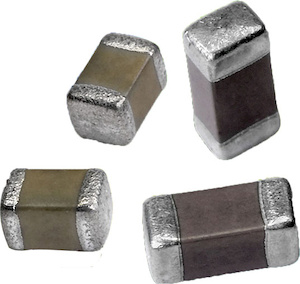

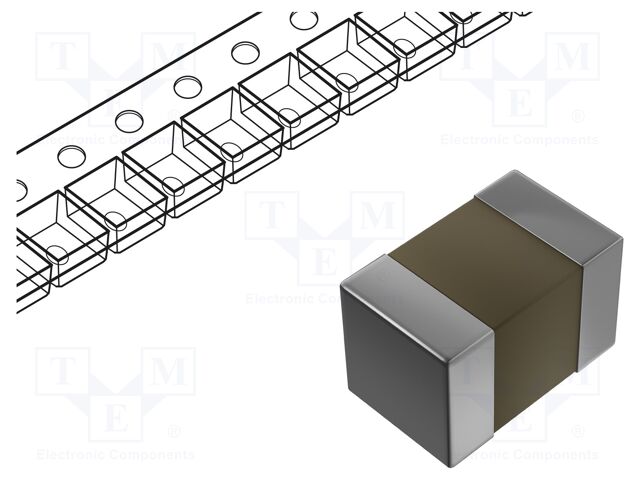

VJ0805A470FXBCW1BC - Vishay
VJ 0805 (2012Metric) Ceramic Capacitor 0.079Lx0.049W 2.00mmx1.25mm C0G NP0 ±1% 47pF
Technical Details
| Capacitance | 47pF |
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Depth | 1.25mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 750µm |
| Harmonized Tariff Schedule (HTS) Code | 8532.24.00.20 |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating (DC) | 100V |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
