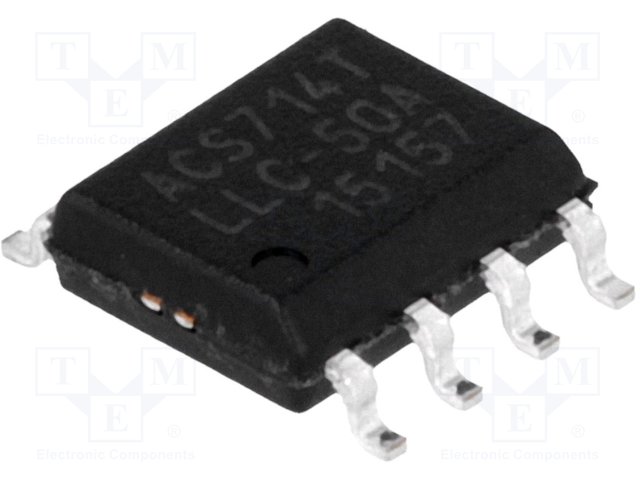

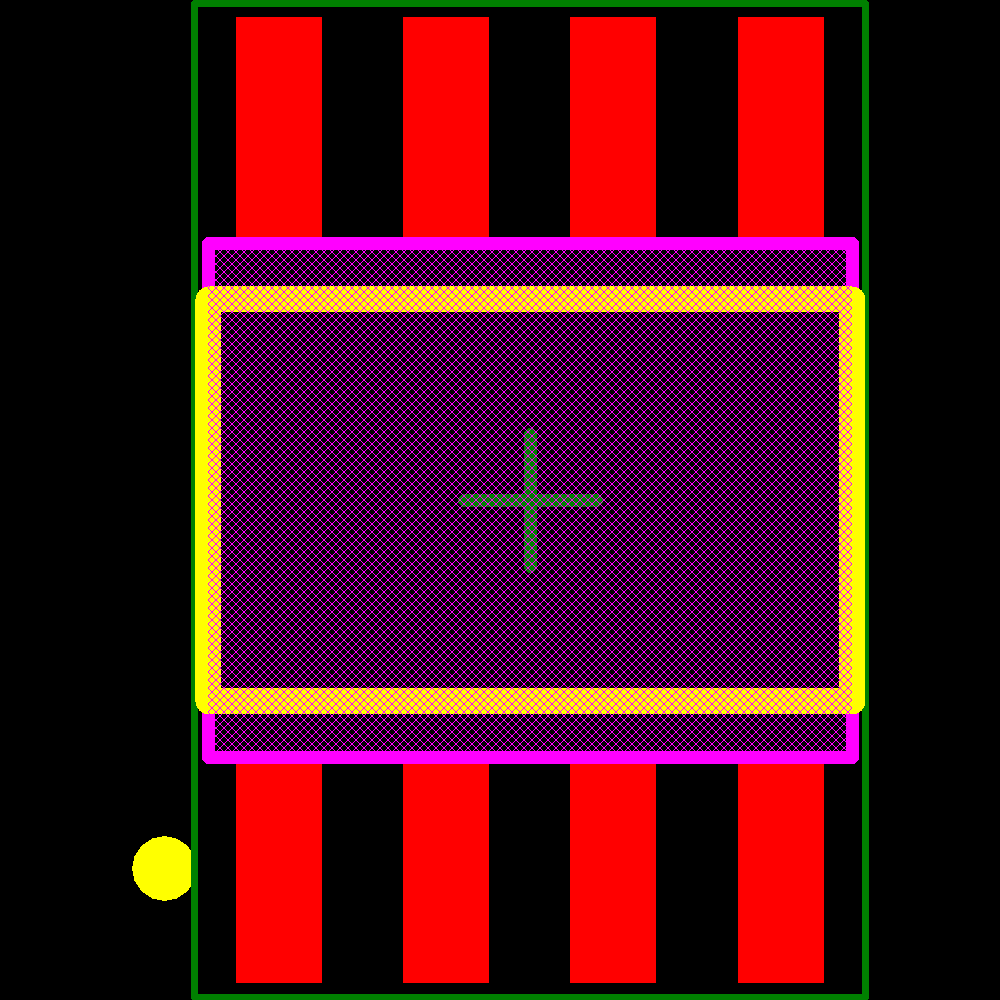

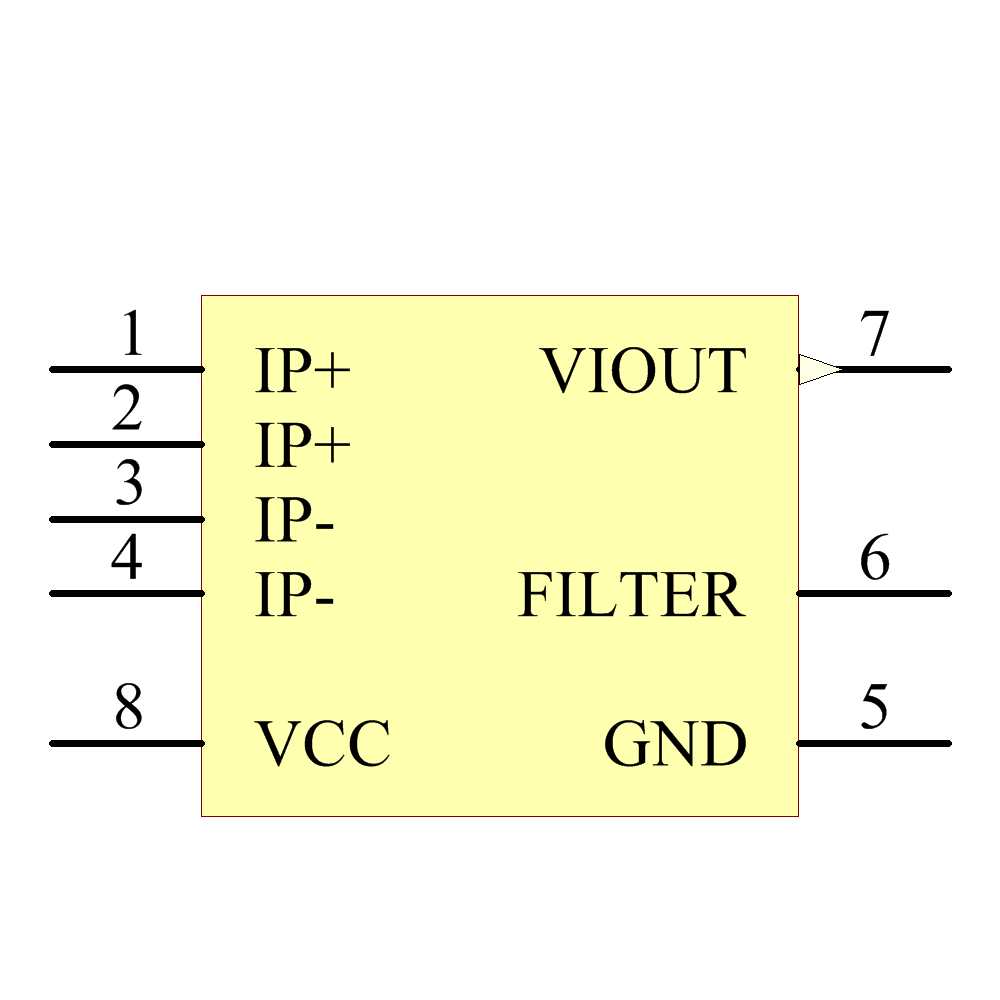

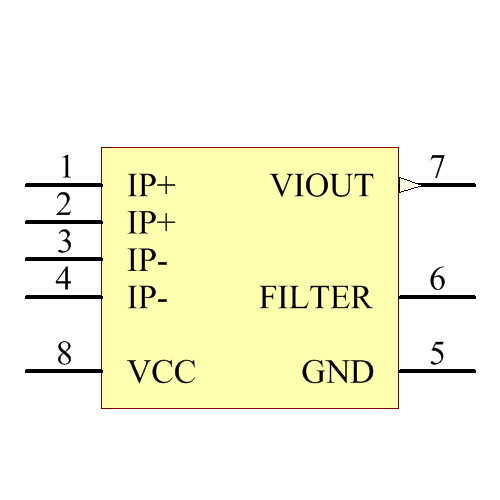

ACS714LLCTR-50A-T - Allegro MicroSystems
ACS714 Series 5 V ±50 A 80 kHz SMT Linear Hall-Effect Current Sensor IC - SOIC-8
Technical Details
| Accuracy | 1.5% |
| Ambient Temperature Range High | 150°C |
| Body Material | Plastic |
| Case/Package | SOIC |
| China RoHS | Non-Compliant |
| Coil Resistance | 1.2mΩ |
| Current Sensing | 50A |
| Frequency | 80kHz |
| Height | 1.47mm |
| Introduction Date | 2007-12-11 |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Linearity | 1.5% |
| Max Junction Temperature (Tj) | 165°C |
| Max Operating Temperature | 150°C |
| Max Supply Current | 13mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 5V |
| Output Current | 10mA |
| Packaging | Tape & Reel (TR) |
| Polarity | Bidirectional |
| REACH SVHC | No |
| Response Time | 5µs |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Sensing Method | Hall Effect |
| Sensitivity (mV/A) | 40mV/A |
