Sensors > Current Sensors

ACS720KLATR-35AB-T - Allegro MicroSystems

High Accuracy, Dual Fault, Galvanically Isolated Current Sensor in SOIC16 Widebody Package

Technical Details

Accuracy	0.6%
Ambient Temperature Range High	125°C
Bandwidth	120kHz
Body Material	Plastic
China RoHS	Compliant
Height	2.34mm
Introduction Date	2017-05-30
Isolation Voltage	3600Vrms
Length	10.21mm
Lifecycle Status	Production
Max Junction Temperature (Tj)	165°C
Max Operating Temperature	125°C
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Mount	Surface Mount
Nominal Supply Voltage (DC)	5V
Number of Terminals	16
Operating Supply Current	13mA
Output Configuration	Analog
REACH SVHC	Yes
Resistance	1mΩ
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Sensing Method	Hall Effect

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Allegro MicroSystems ACS720KLATR-35AB-T | element14 APAC

element14 APAC

Datasheets

Lifecycle Status Indicator

Production

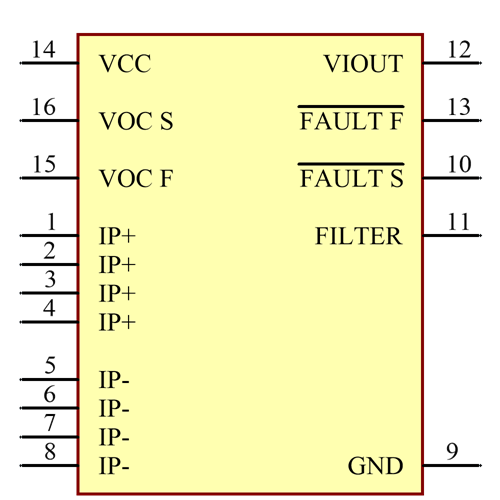

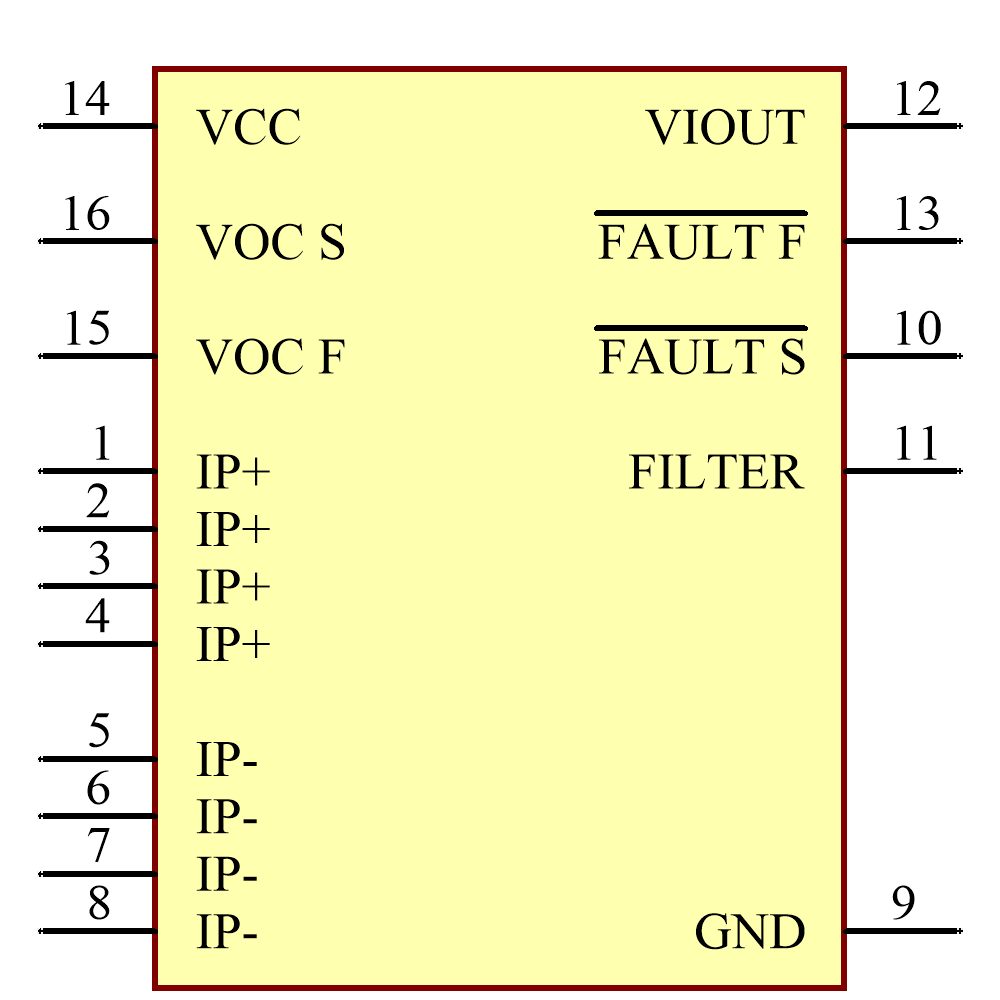

Symbol

ACS720KLATR-35AB-T Symbol - Allegro MicroSystems

ACS720KLATR-35AB-T Symbol - Allegro MicroSystems

ACS720KLATR-35AB-T Symbol - Allegro MicroSystems

ACS720KLATR-35AB-T Symbol - Allegro MicroSystems

‹ ›

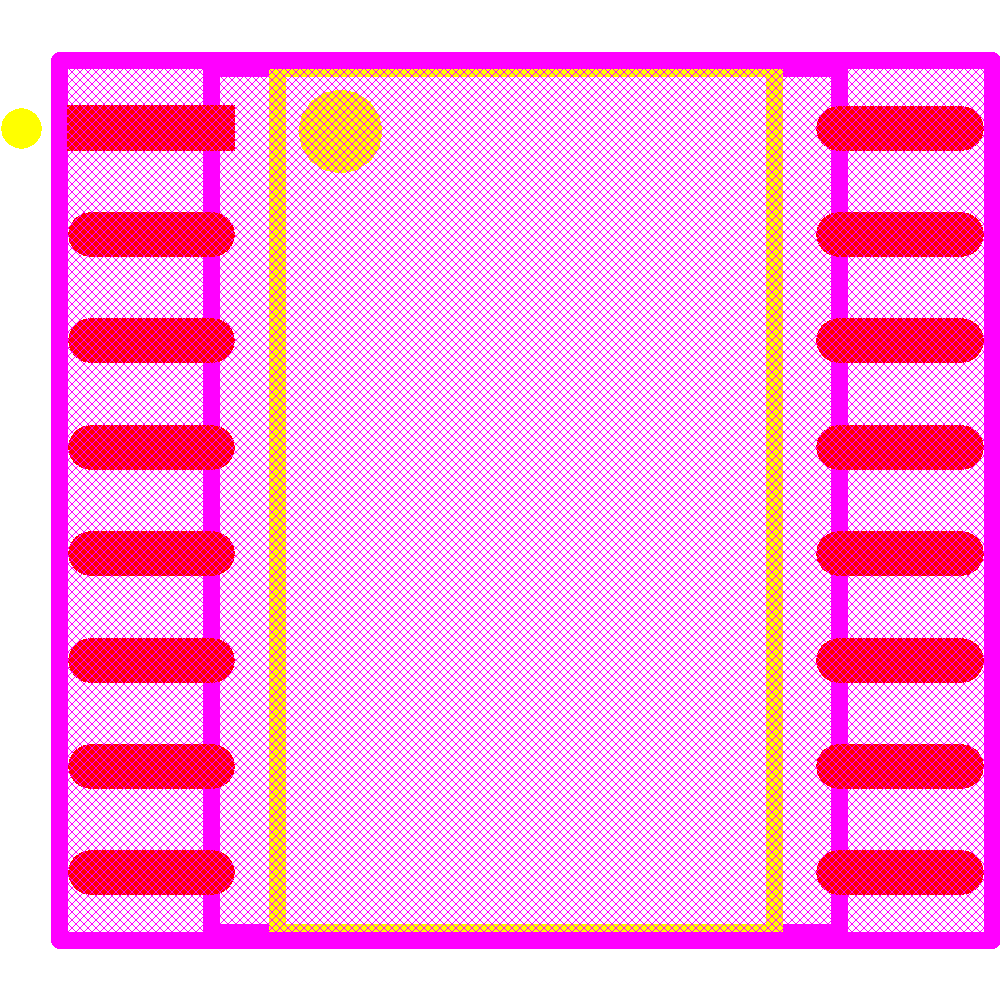

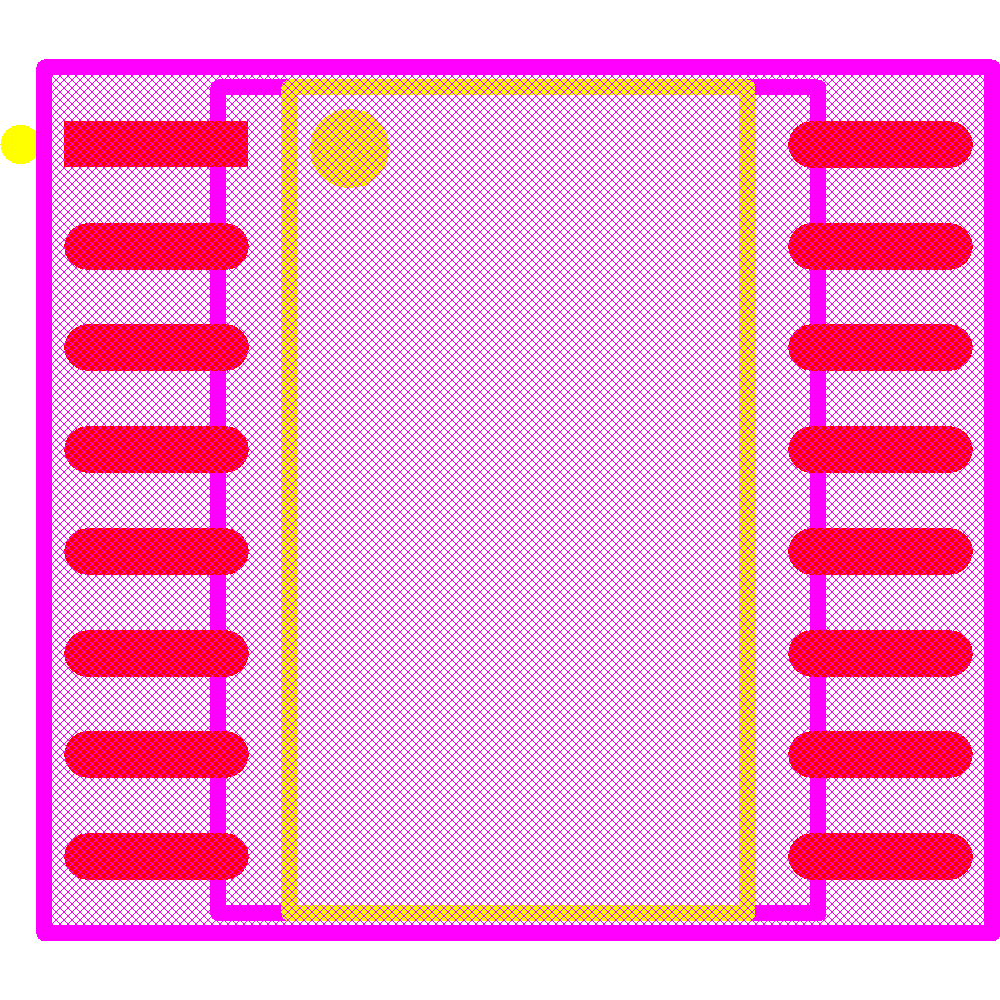

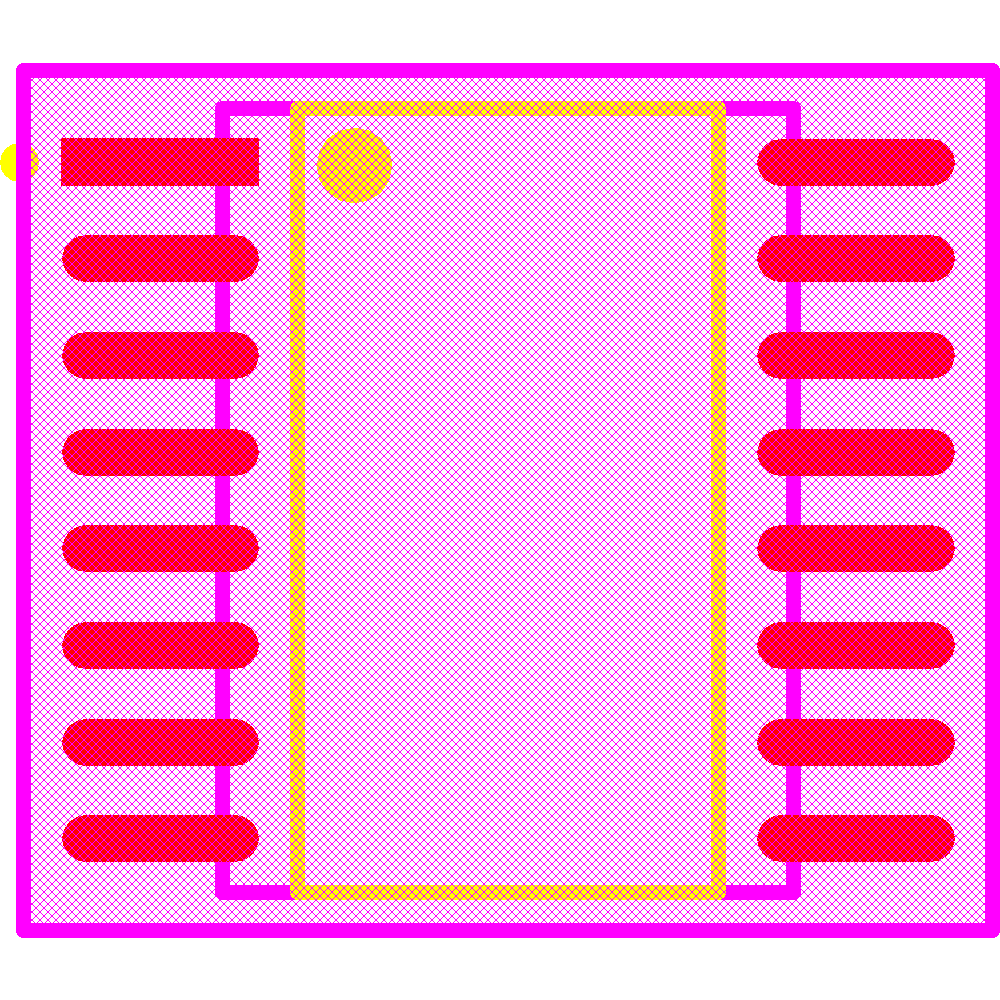

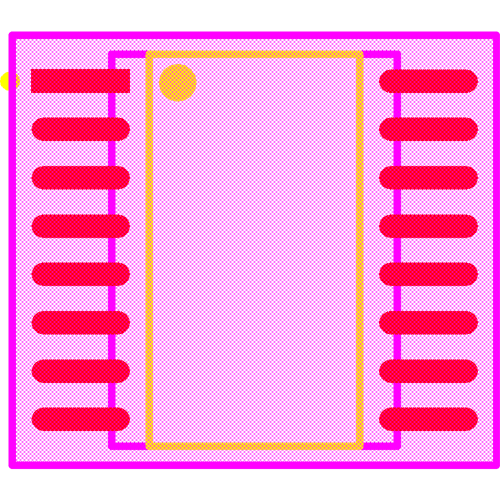

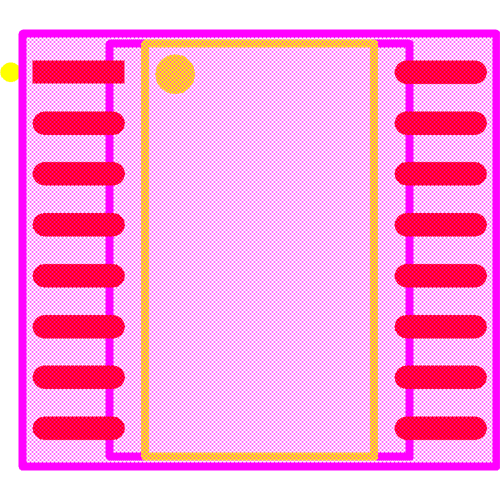

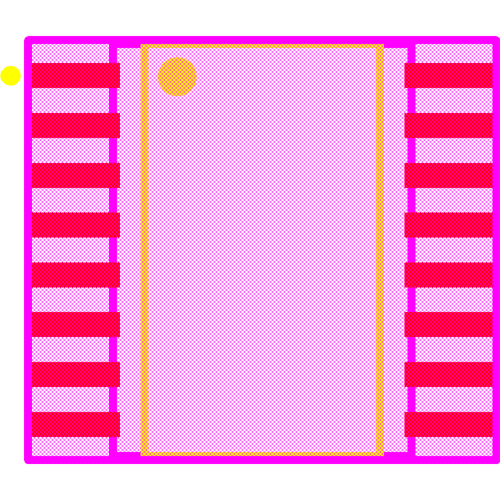

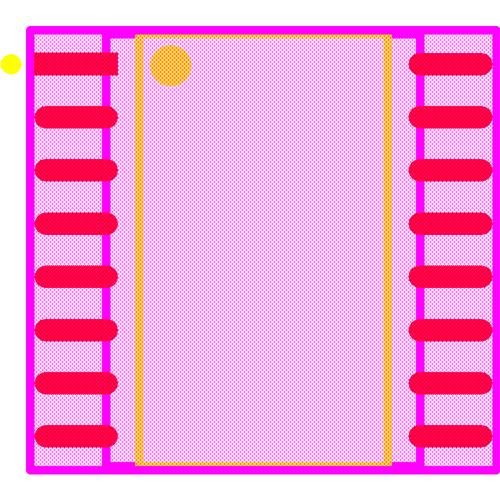

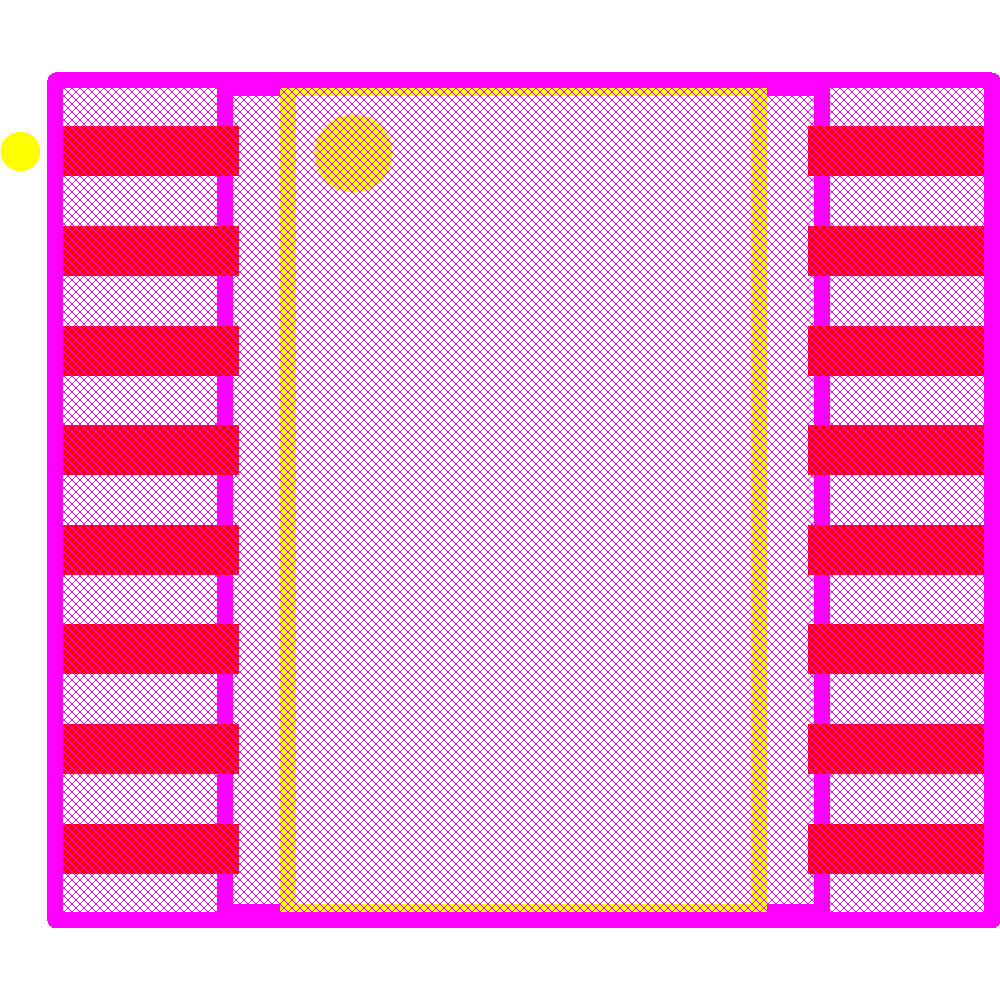

Footprint

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

ACS720KLATR-35AB-T Footprint - Allegro MicroSystems

‹ ›
