HSDL-9100-021 - Avago

Proximity Sensor, HDSL Series, 60 mm, Analogue, 1 V to 1.3 V

Technical Details

Breakdown Voltage	35V
Case/Package	SMD/SMT
China RoHS	Compliant
Connector Type	SMD/SMT
Contact Plating	Gold
Current Rating	100mA
Dark Current	2nA
Export Control Classification Number (ECCN) Code	EAR99
Fall Time	50ns
Forward Current	100mA
Height	2.7mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.01
Introduction Date	2004-08-26
Lead Free	Lead Free
Length	6.9mm
Lifecycle Status	Production
Max Collector Current	100mA
Max Operating Temperature	85°C
Max Supply Voltage	1.65V
Max Supply Voltage (DC)	1.3V
Min Operating Temperature	-40°C
Min Supply Voltage	1.5V
Min Supply Voltage (DC)	1V
Mount	Surface Mount
Number of Pins	4
Operating Supply Voltage	1.5V
Output Current	10µA
Packaging	Cut Tape
Peak Wavelength	940nm
Radiation Hardening	No
REACH SVHC	Yes
Response Time	6µs
Rise Time	50ns
RoHS	Compliant
Sensing Distance	60mm
Sensing Method	Optical
Turn-Off Delay Time	6µs
Turn-On Delay Time	6µs
Wavelength	940nm
Width	2.75mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Avago HSDL-9100-021 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

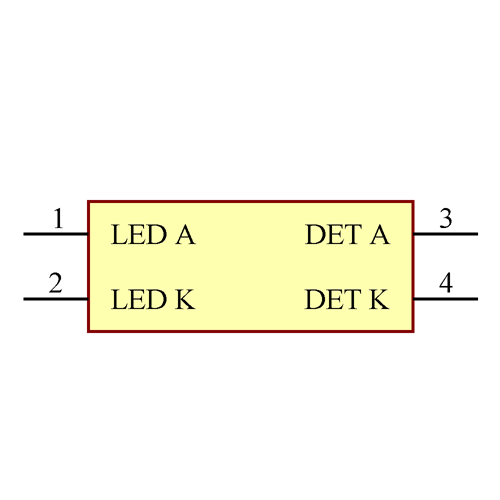

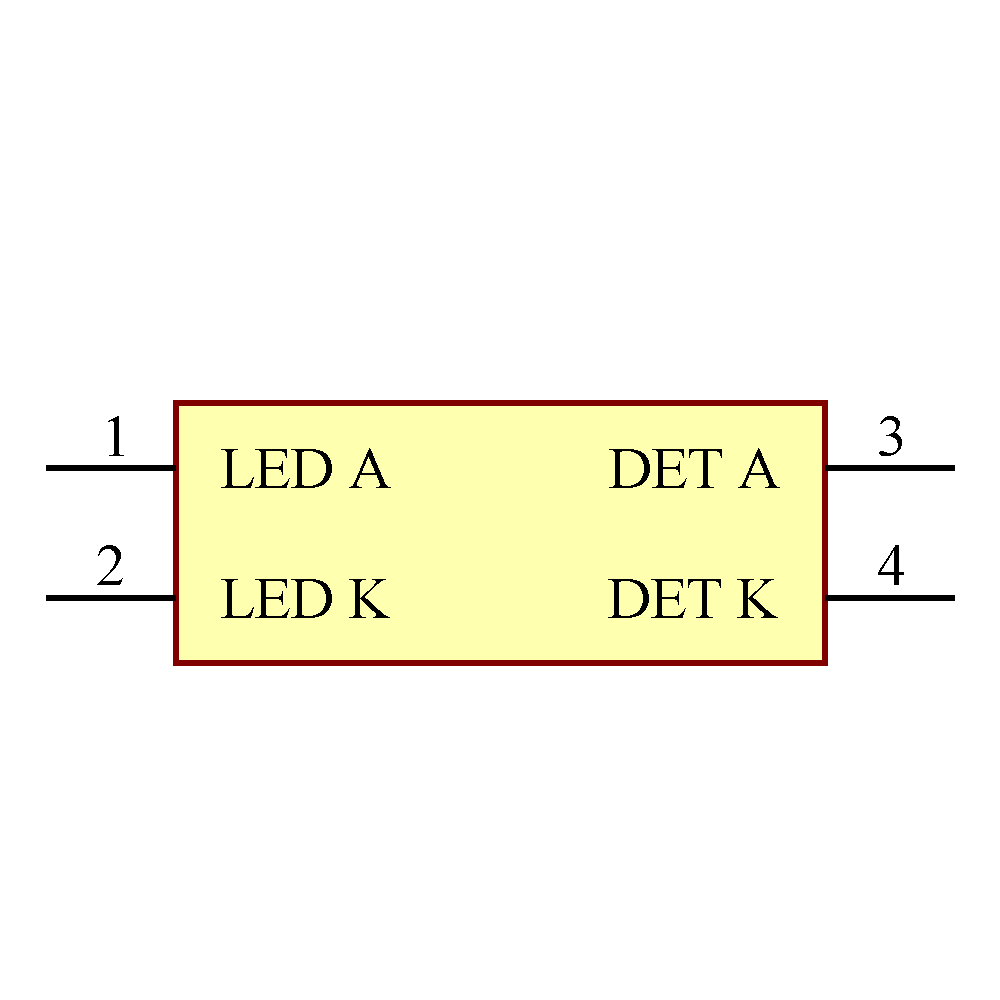

Symbol

HSDL-9100-021 Symbol - Avago

HSDL-9100-021 Symbol - Avago

HSDL-9100-021 Symbol - Avago

HSDL-9100-021 Symbol - Avago

‹ ›

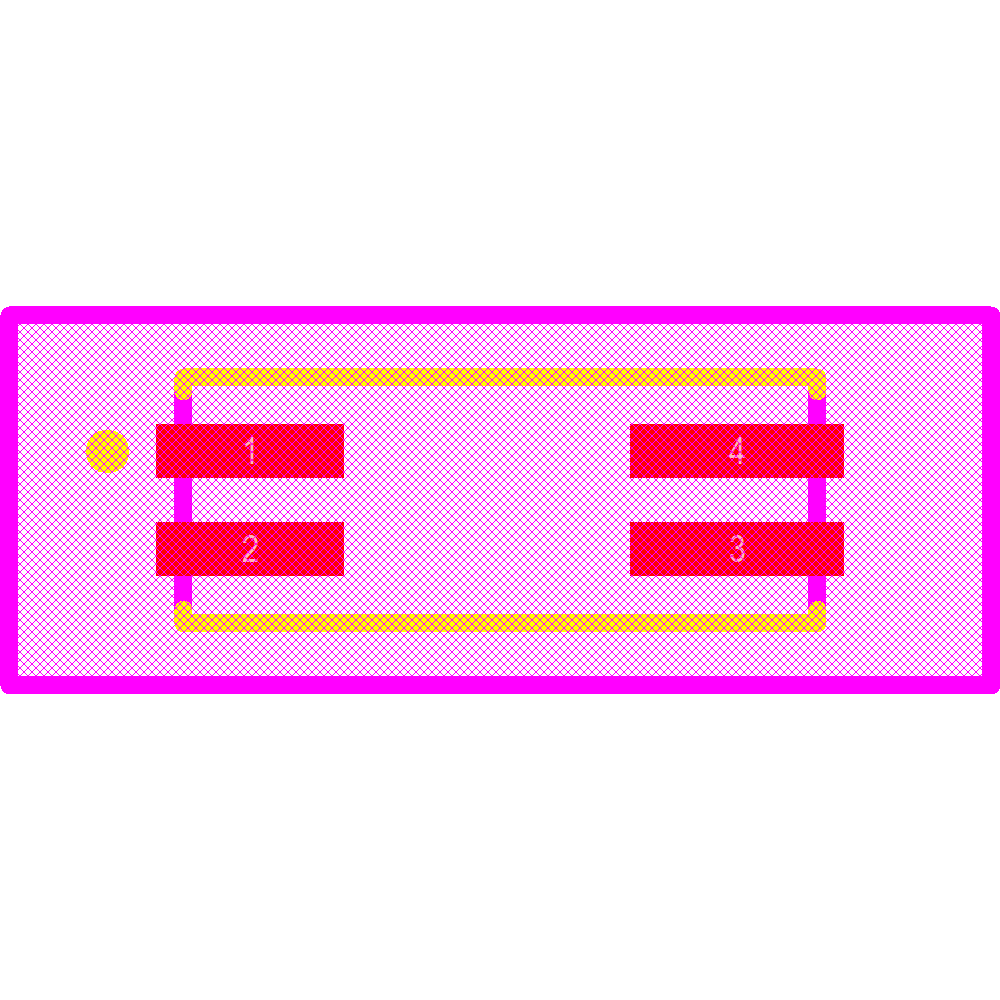

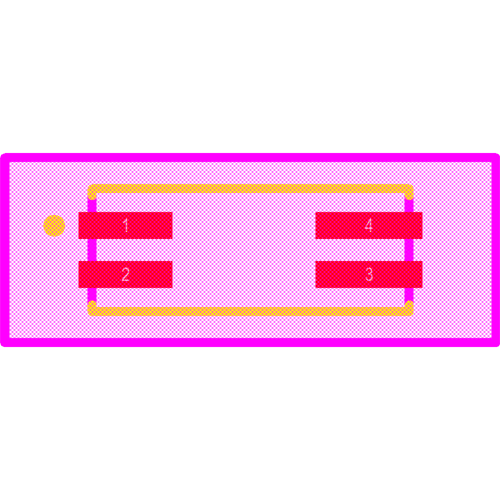

Footprint
