Sensors > Magnetic Sensors > Hall Effect Sensors

SS351AT - Honeywell

Hall Effect Sensor 20mA Omnipolar 3.3V/5V/9V/12V/15V/18V 3-Pin SOT-23 T/R

Technical Details

Case/Package	SOT-23
Country of Origin	Mainland China
Current Rating	9mA
Height	1.2mm
Introduction Date	2009-10-08
Leakage Current	10µA
Length	2.9mm
Lifecycle Status	Production
Max Operating Temperature	150°C
Max Output Current	20mA
Max Supply Voltage	12V
Min Operating Temperature	-40°C
Min Output Voltage	400mV
Min Supply Voltage	3V
Mount	Surface Mount
Nominal Supply Current	3.5mA
Number of Pins	3
Number of Terminals	3
Operating Supply Current	9mA
Output Current	20mA
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Sensing Method	Hall Effect
Termination	SMD/SMT
Type	Integrated Circuit (IC)
Width	1.6mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Honeywell SS351AT | TME

TME

Datasheets

Sager Electronics

Powell Electronics

Lifecycle Status Indicator

Production

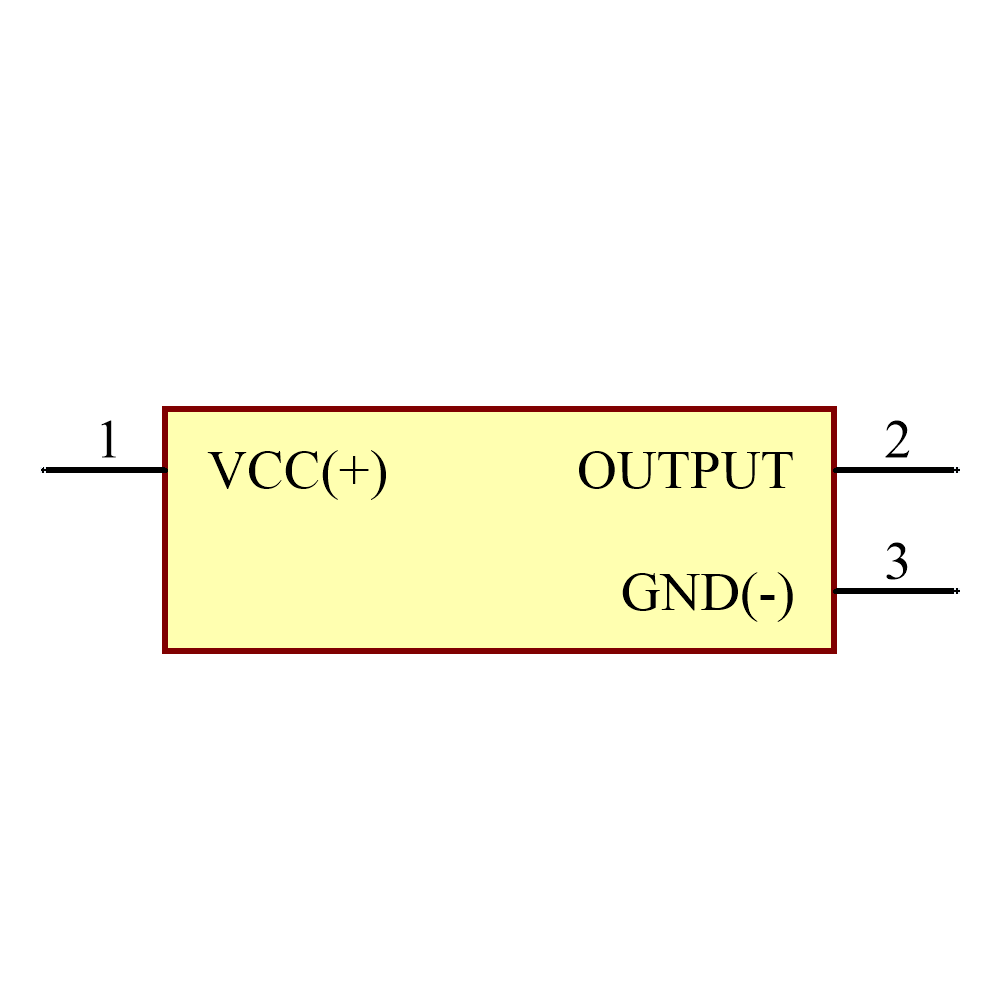

Symbol

SS351AT Symbol - Honeywell

SS351AT Symbol - Honeywell

SS351AT Symbol - Honeywell

SS351AT Symbol - Honeywell

‹ ›

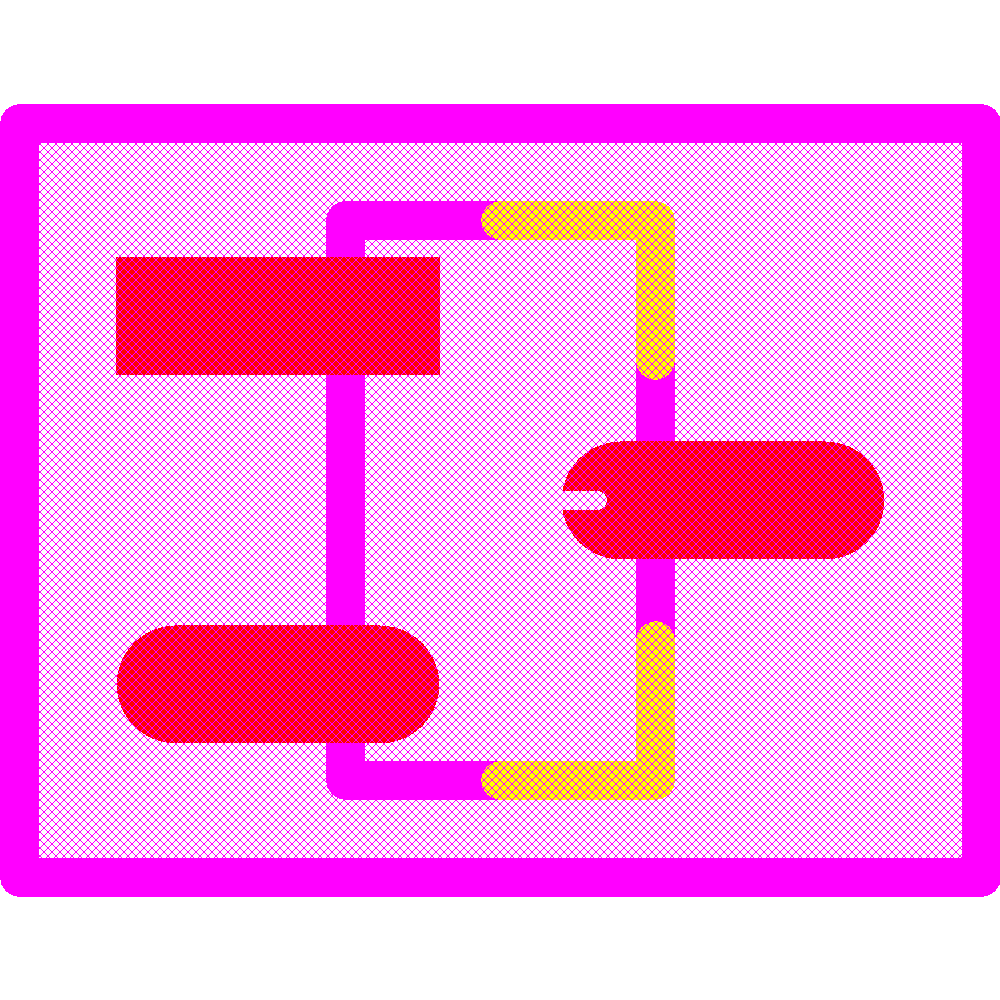

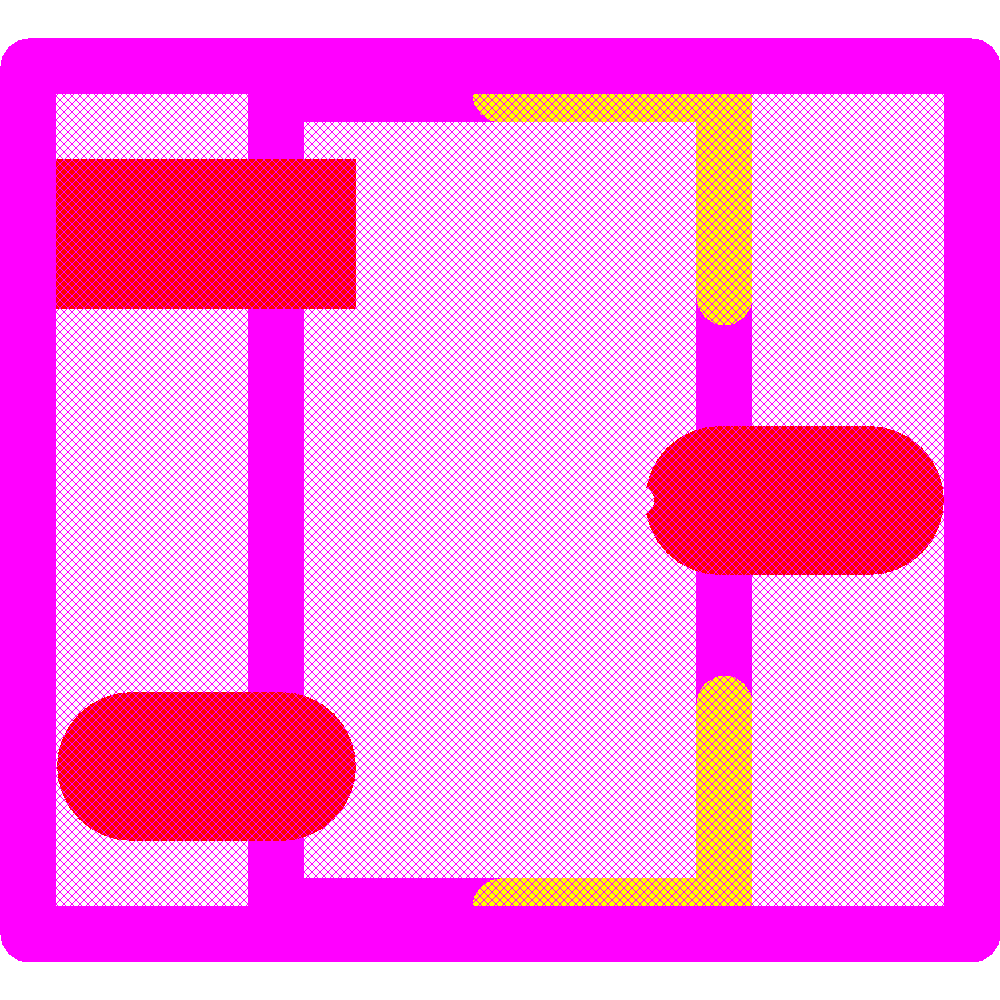

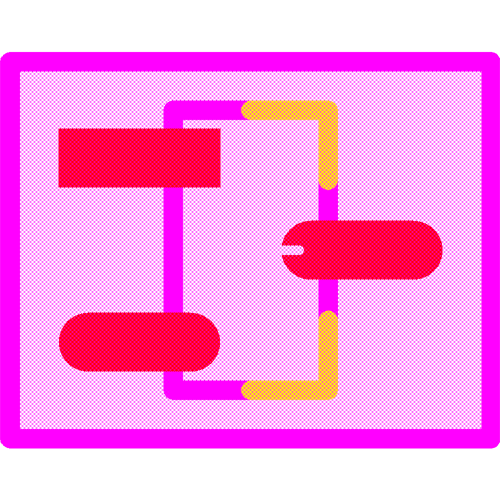

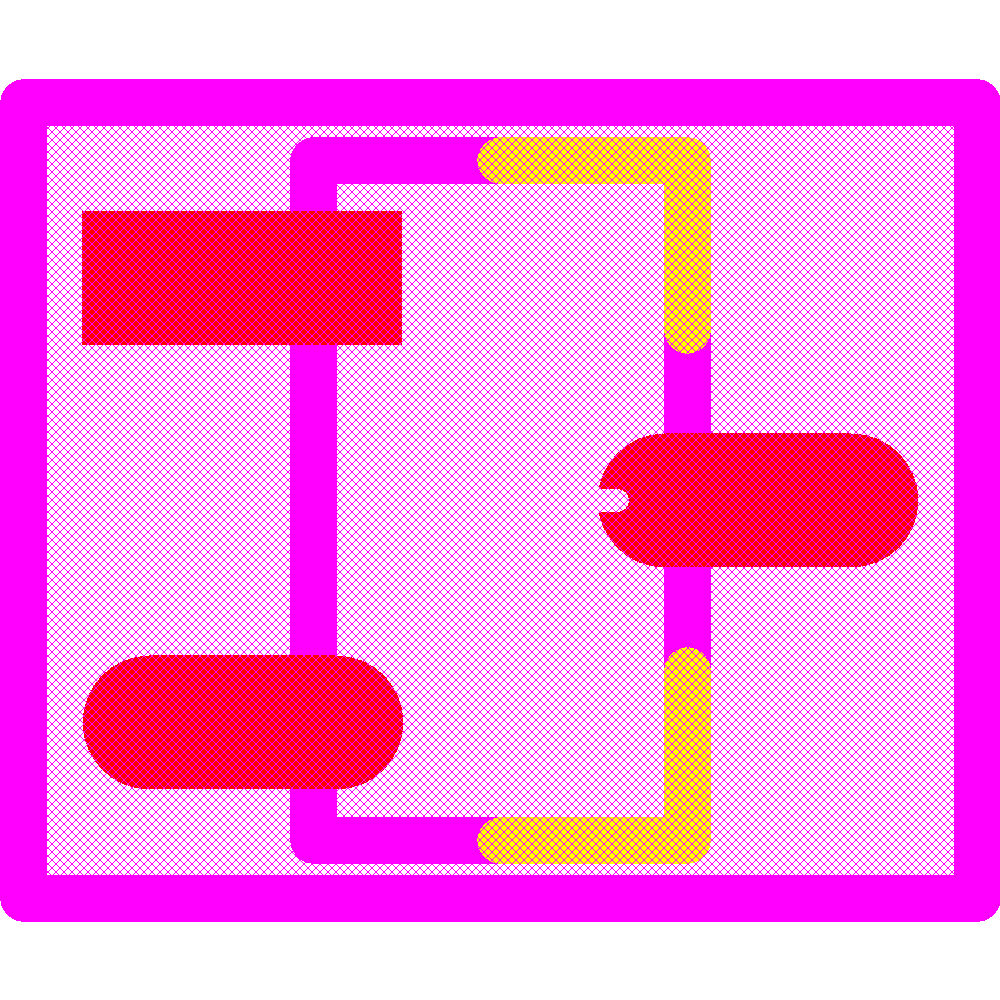

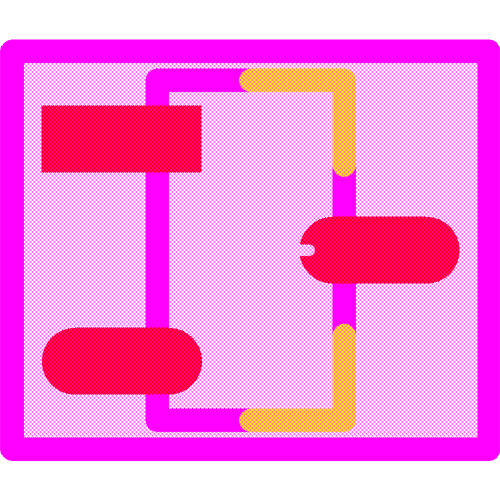

Footprint

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

SS351AT Footprint - Honeywell

‹ ›
