Sensors > Magnetic Sensors > Hall Effect Sensors

TLE49611MXTSA1 - Infineon

Hall Effect Sensor 25mA Bipolar Latch 3.3V/5V/9V/12V/15V/18V/24V Automotive 3-Pin SOT-23 T/R

Technical Details

Case/Package	TO-236-3
Current Rating	2.5mA
Height	1mm
Length	2.9mm
Lifecycle Status	Production
Logic Function	Latch
Max Operating Temperature	195°C
Max Output Current	25mA
Max Supply Current	2.5mA
Max Supply Voltage	32V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Mount	Surface Mount
Number of Pins	3
Number of Terminals	3
Output Current	25mA
Package Quantity	3000
Packaging	Tape & Reel
Polarity	Inverting
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Sensing Method	Hall Effect

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Infineon TLE49611MXTSA1 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

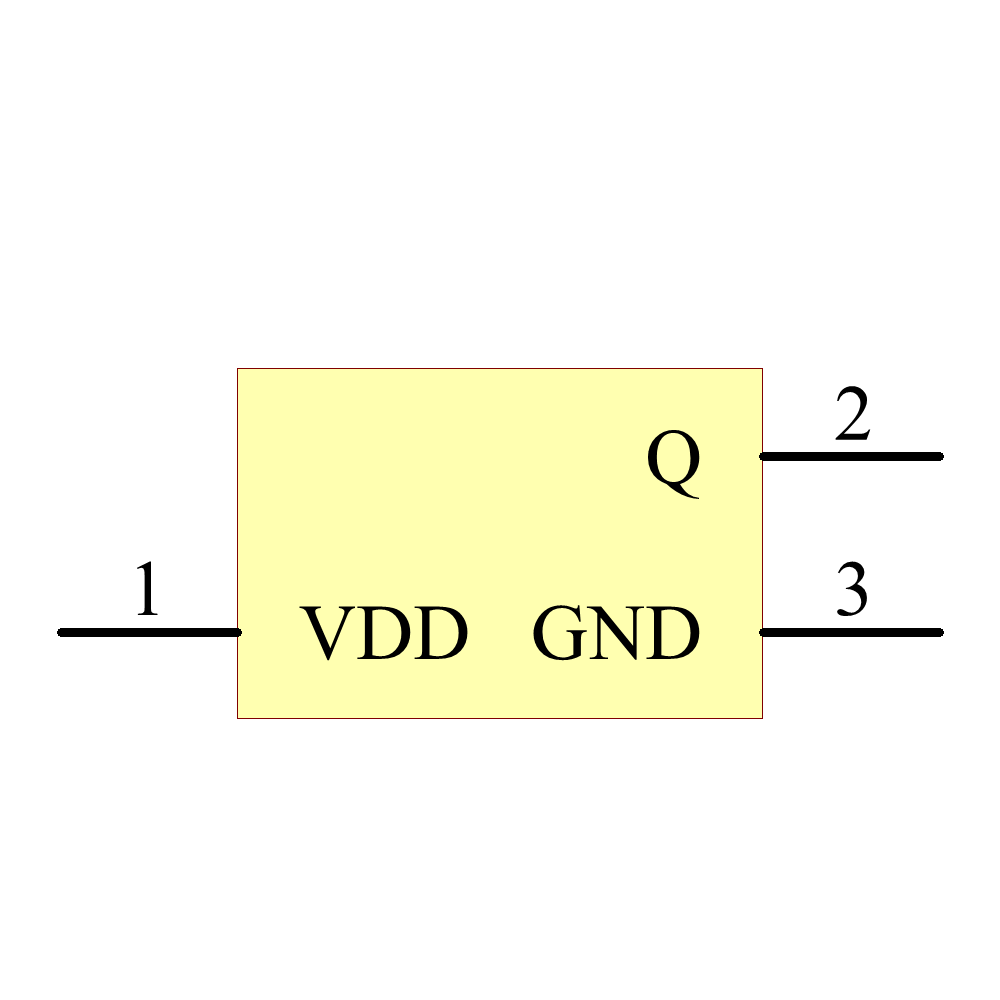

Symbol

TLE49611MXTSA1 Symbol - Infineon

TLE49611MXTSA1 Symbol - Infineon

TLE49611MXTSA1 Symbol - Infineon

TLE49611MXTSA1 Symbol - Infineon

‹ ›

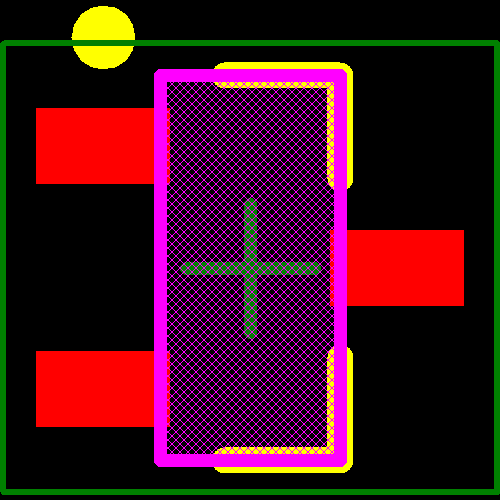

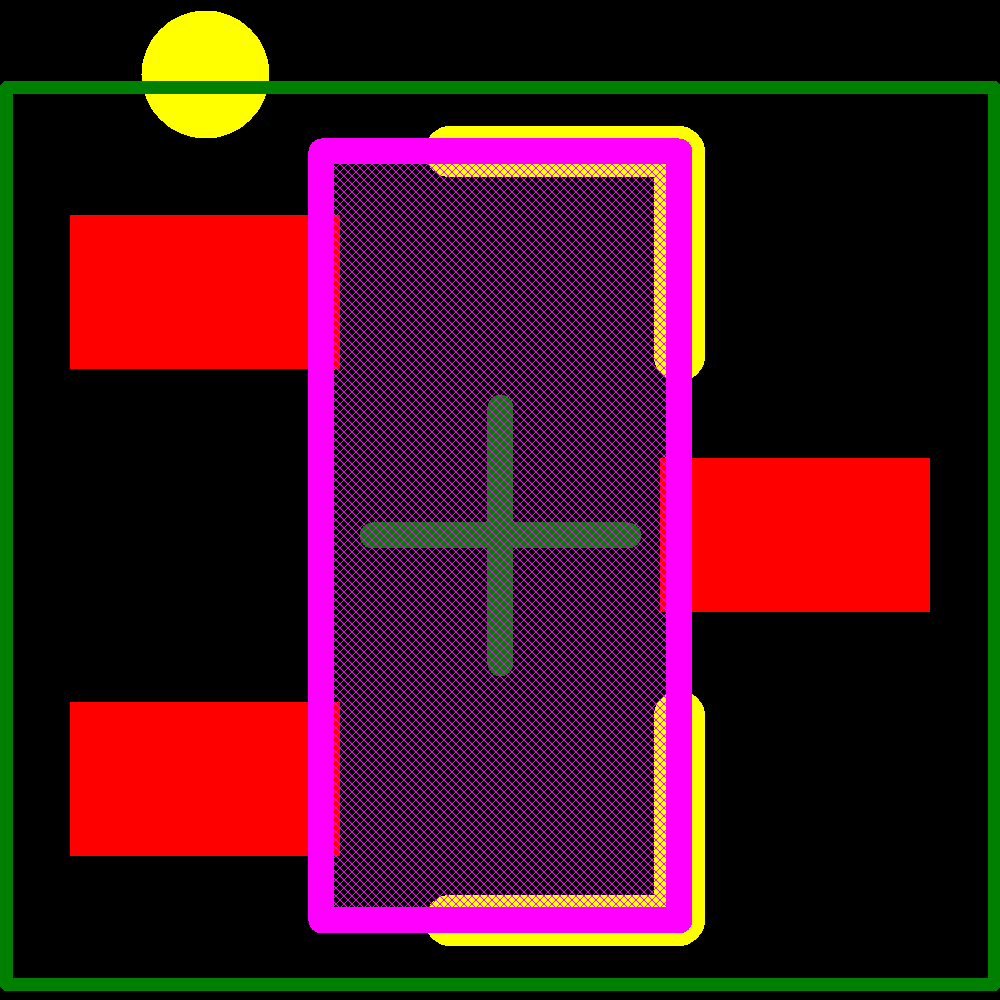

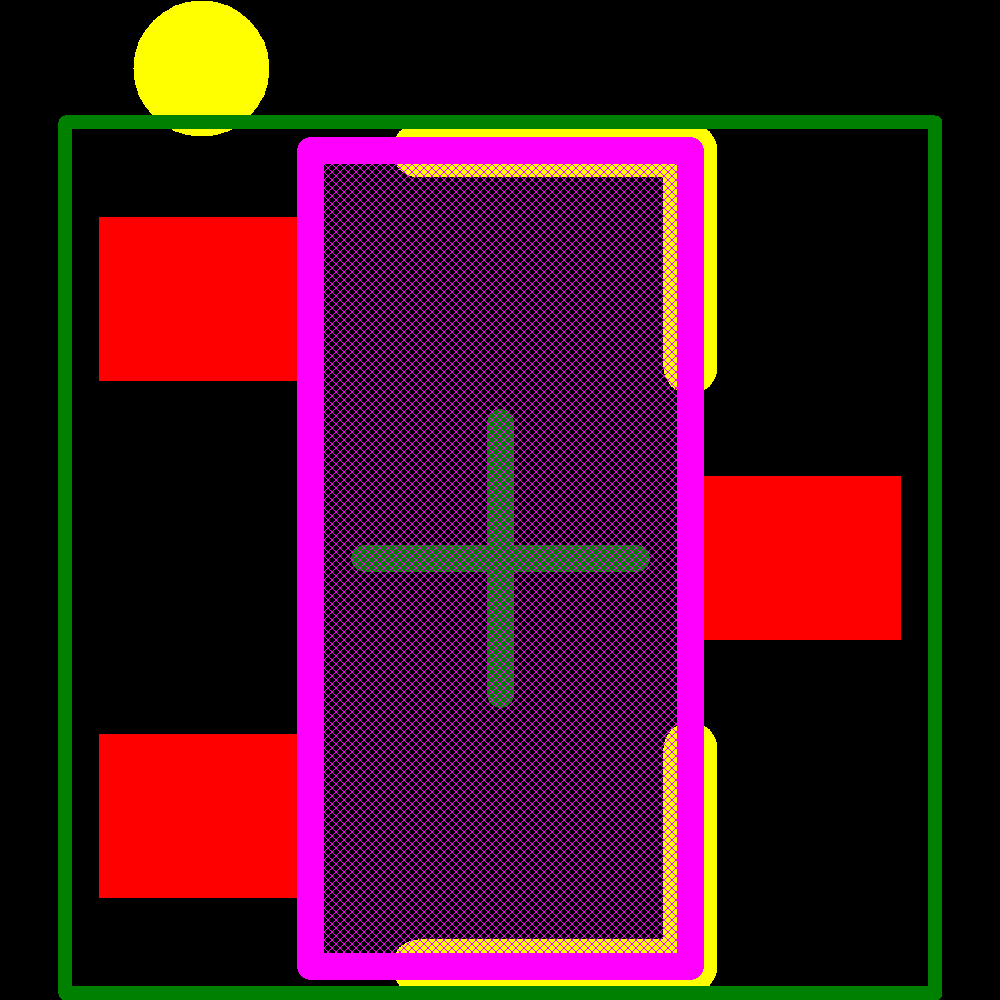

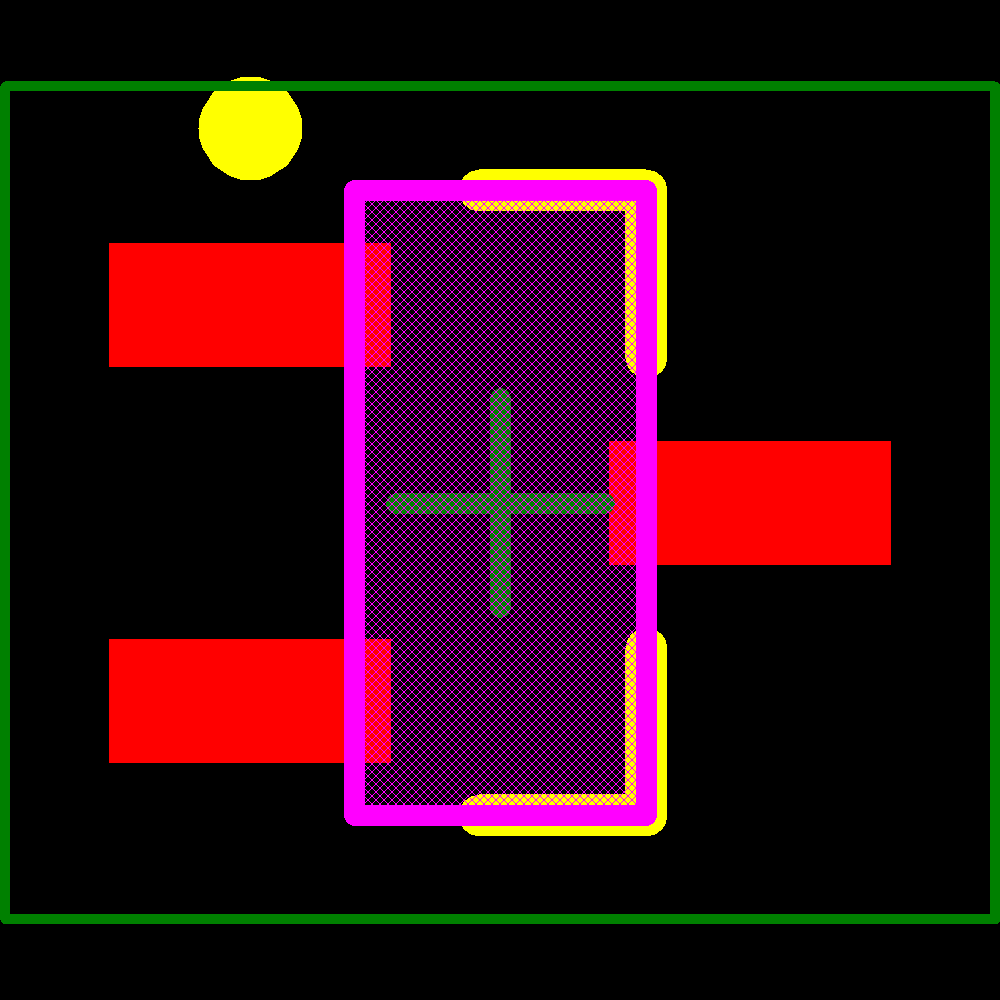

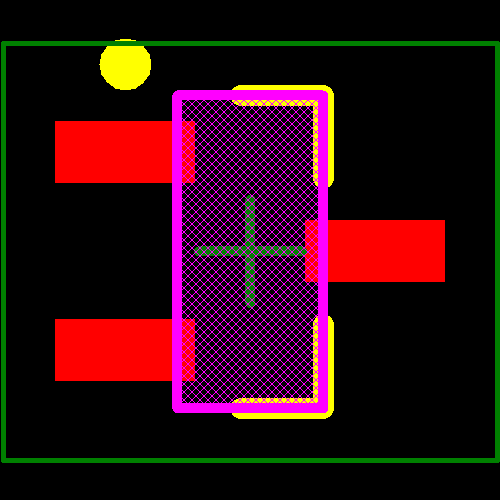

Footprint

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

TLE49611MXTSA1 Footprint - Infineon

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Infineon	TLE49613KXTSA1	NRND
Infineon	TLE49615KXTSA1	Obsolete
Infineon	TLE49681KXTSA1	Production
Infineon	TLE49613MXTSA1	Production
