MCP9701T-E/TT - Microchip

Analog Output Temperature Sensor, 3.1 to 5.5V, SOT-23-3, RoHS

Technical Details

Projected EOL Date	2034-05-01
Case/Package	SOT-23
Country of Assembly	Malaysia, Thailand
Country of Fabrication	United States of America
Country of Origin	Malaysia, Thailand
Export Control Classification Number (ECCN) Code	EAR99
Height	1.02mm
Harmonized Tariff Schedule (HTS) Code	8542.39.0060
Introduction Date	2007-05-01
Lead Free	Lead Free
Length	3.05mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Operating Temperature	125°C
Max Output Current	100µA
Max Supply Voltage	5.5V
Max Supply Voltage (DC)	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	3.1V
Min Supply Voltage (DC)	3V
Mount	Surface Mount
Nominal Supply Current	6µA
Number of Bits	8
Number of Pins	3
Operating Supply Current	6µA
Output Current	100µA
Output Type	ANALOG, Analog Voltage
Packaging	Tape & Reel
Radiation Hardening	No
REACH SVHC	No
Resolution	1B
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Width	1.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Microchip MCP9701T-E/TT | TME

TME

Datasheets

Lifecycle Status Indicator

Production

Symbol

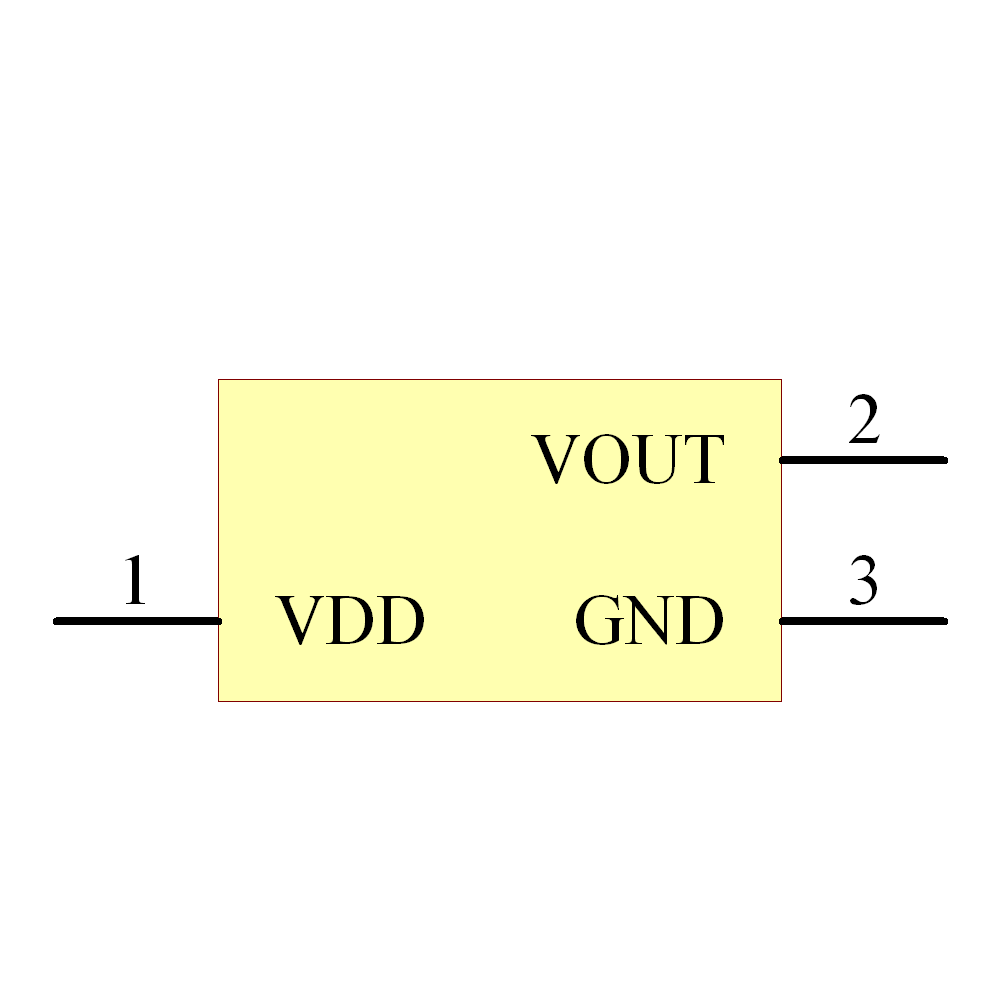

MCP9701T-E/TT Symbol - Microchip

MCP9701T-E/TT Symbol - Microchip

MCP9701T-E/TT Symbol - Microchip

MCP9701T-E/TT Symbol - Microchip

‹ ›

Footprint

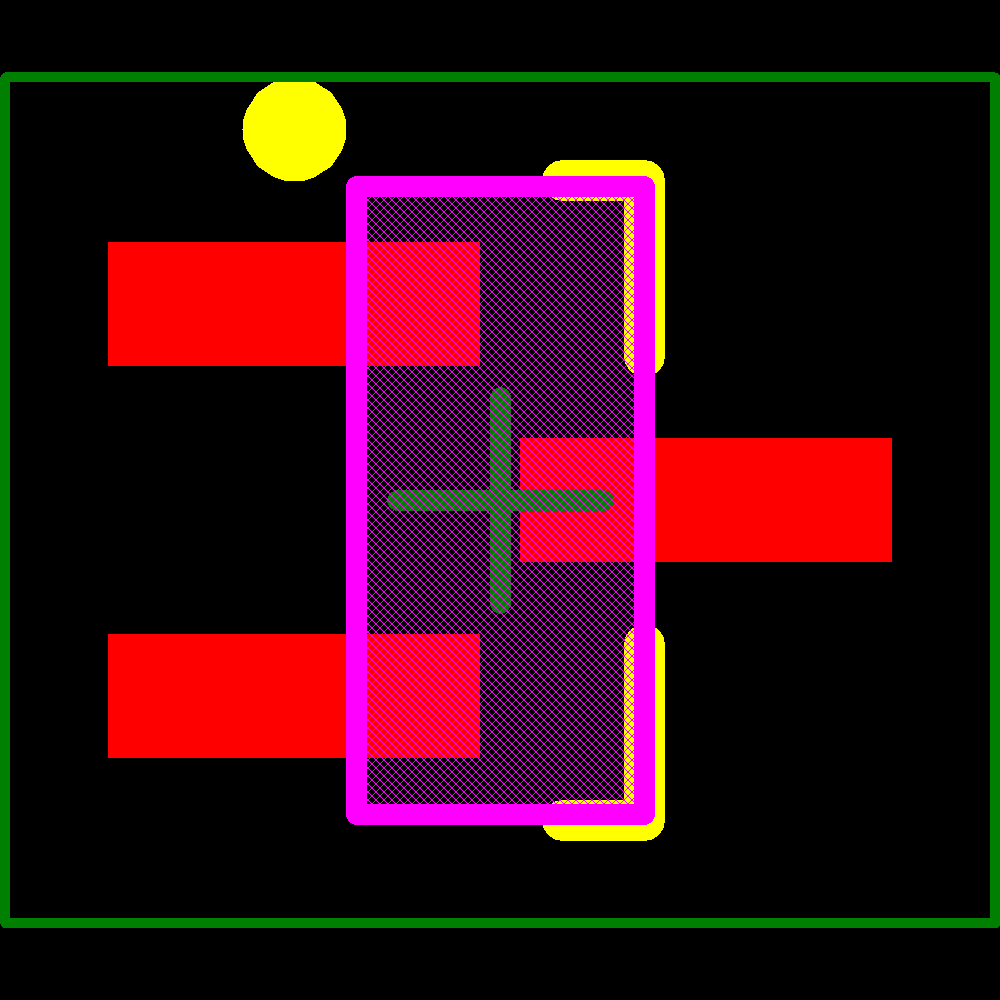

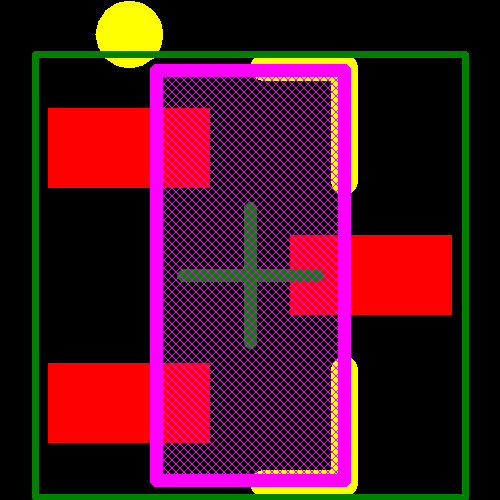

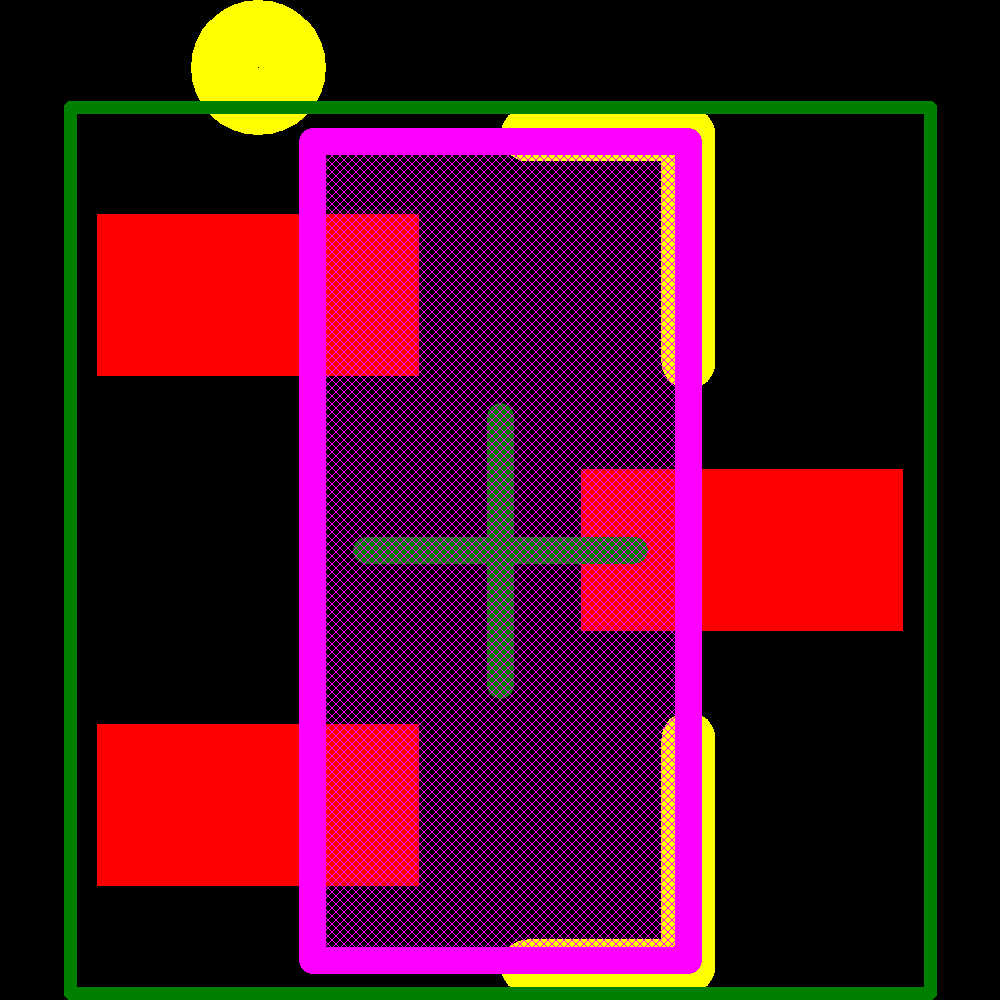

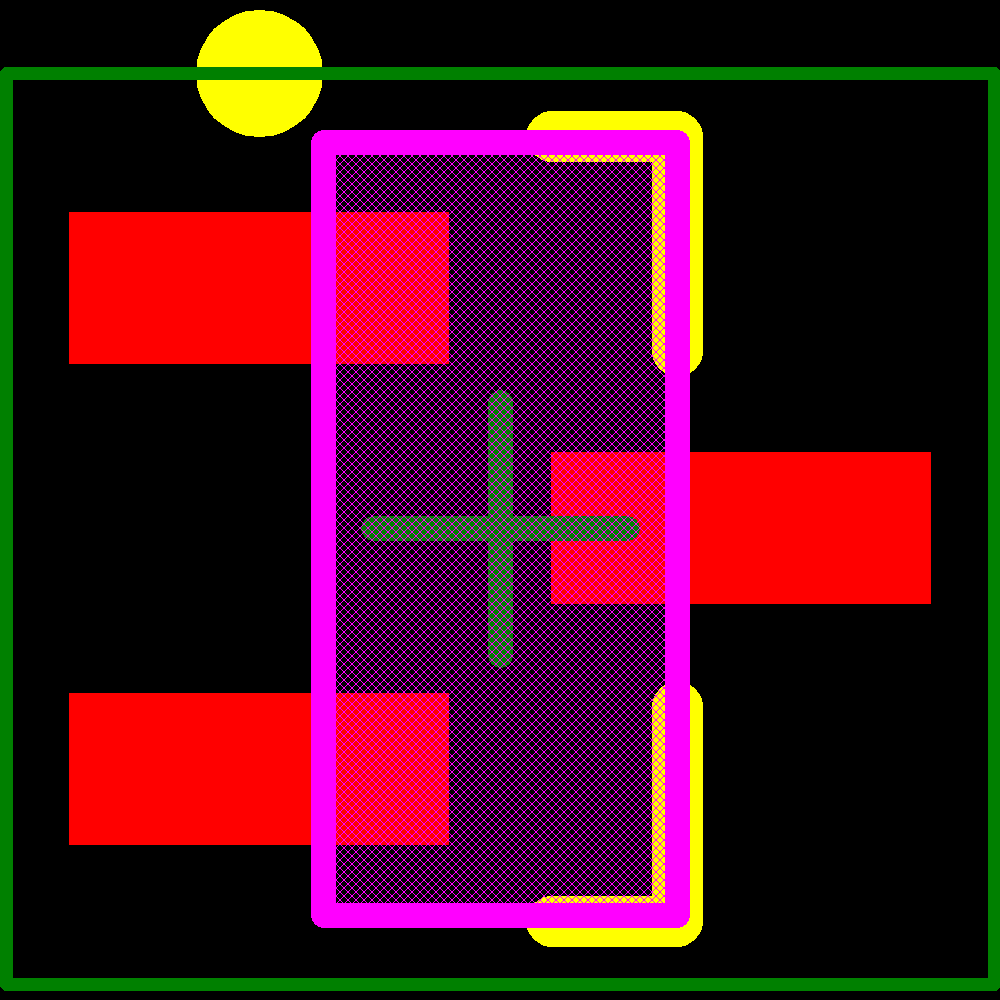

MCP9701T-E/TT Footprint - Microchip
