MCP9802A0T-M/OT - Microchip

MCP9802 Series 5.5 V 2-Wire High-Accuracy Temperature Sensor - SOT23-5

Technical Details

Projected EOL Date	2034-10-01
Accuracy	3%
Case/Package	SOT-23
Country of Assembly	Malaysia, Thailand
Country of Fabrication	United States of America
Country of Origin	Malaysia, Thailand
Export Control Classification Number (ECCN) Code	EAR99
Height	1.3mm
Harmonized Tariff Schedule (HTS) Code	8542.39.0060
Interface	2-Wire, I2C, SMBus, Serial
Introduction Date	2004-10-01
Lead Free	Lead Free
Length	3.1mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Operating Temperature	125°C
Max Supply Voltage	5.5V
Max Supply Voltage (DC)	5.5V
Min Operating Temperature	-55°C
Min Supply Voltage	2.7V
Min Supply Voltage (DC)	2.7V
Mount	Surface Mount
Number of Bits	12
Number of Pins	5
Operating Supply Current	200µA
Operating Supply Voltage	4.5V
Output Current	1µA
Output Type	Digital, I2C
Output Voltage	400mV
Packaging	Cut Tape
Radiation Hardening	No
REACH SVHC	No
Resolution	1.5B
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Sensing Method	Resistive
Sensor Type	Temperature
Termination	SMD/SMT
Width	1.8mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Microchip MCP9802A0T-M/OT | Microchip

Microchip

Datasheets

Onlinecomponents.com

Lifecycle Status Indicator

Production

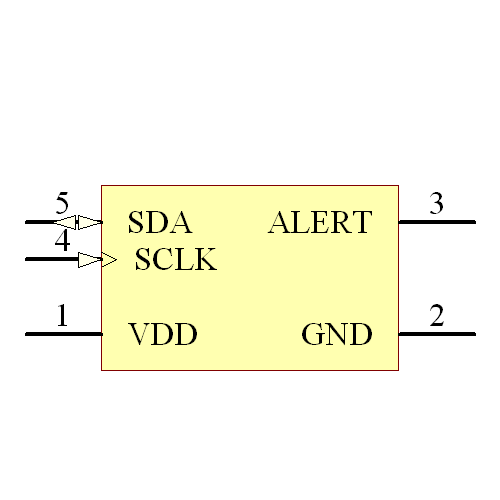

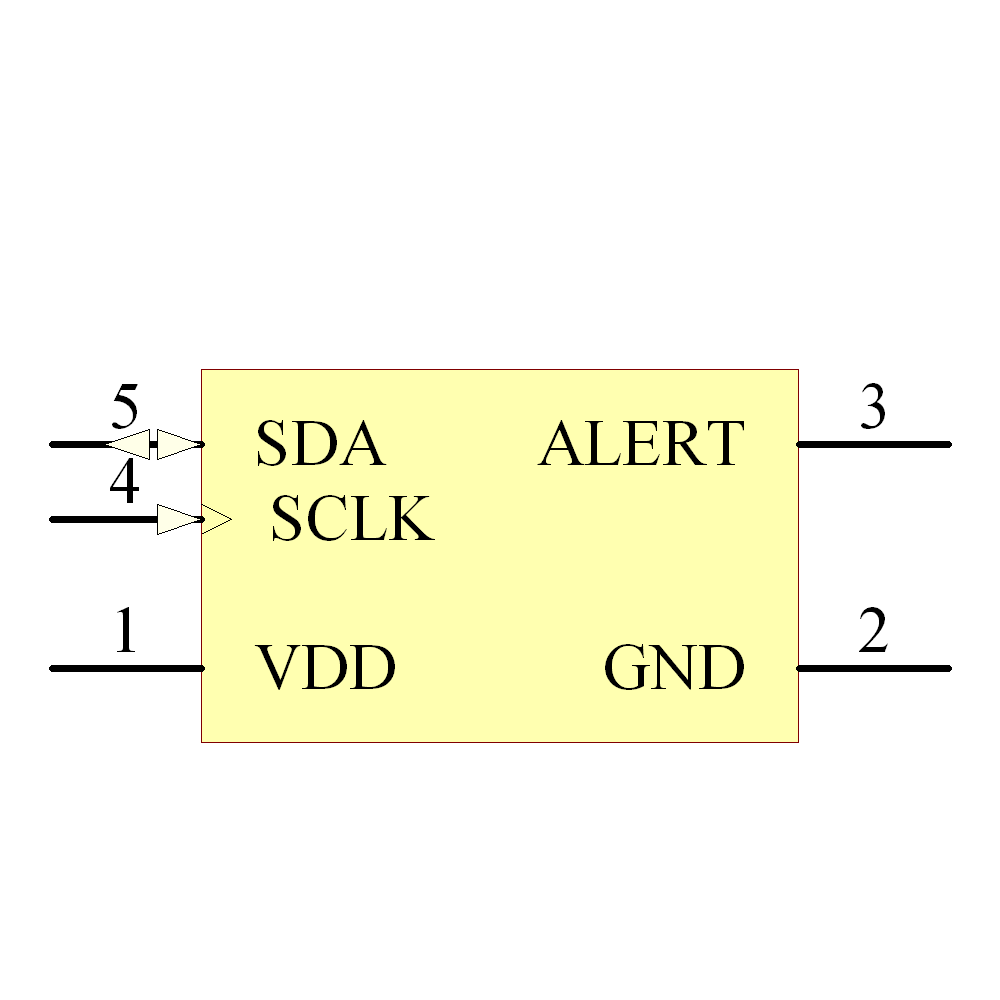

Symbol

MCP9802A0T-M/OT Symbol - Microchip

MCP9802A0T-M/OT Symbol - Microchip

MCP9802A0T-M/OT Symbol - Microchip

MCP9802A0T-M/OT Symbol - Microchip

‹ ›

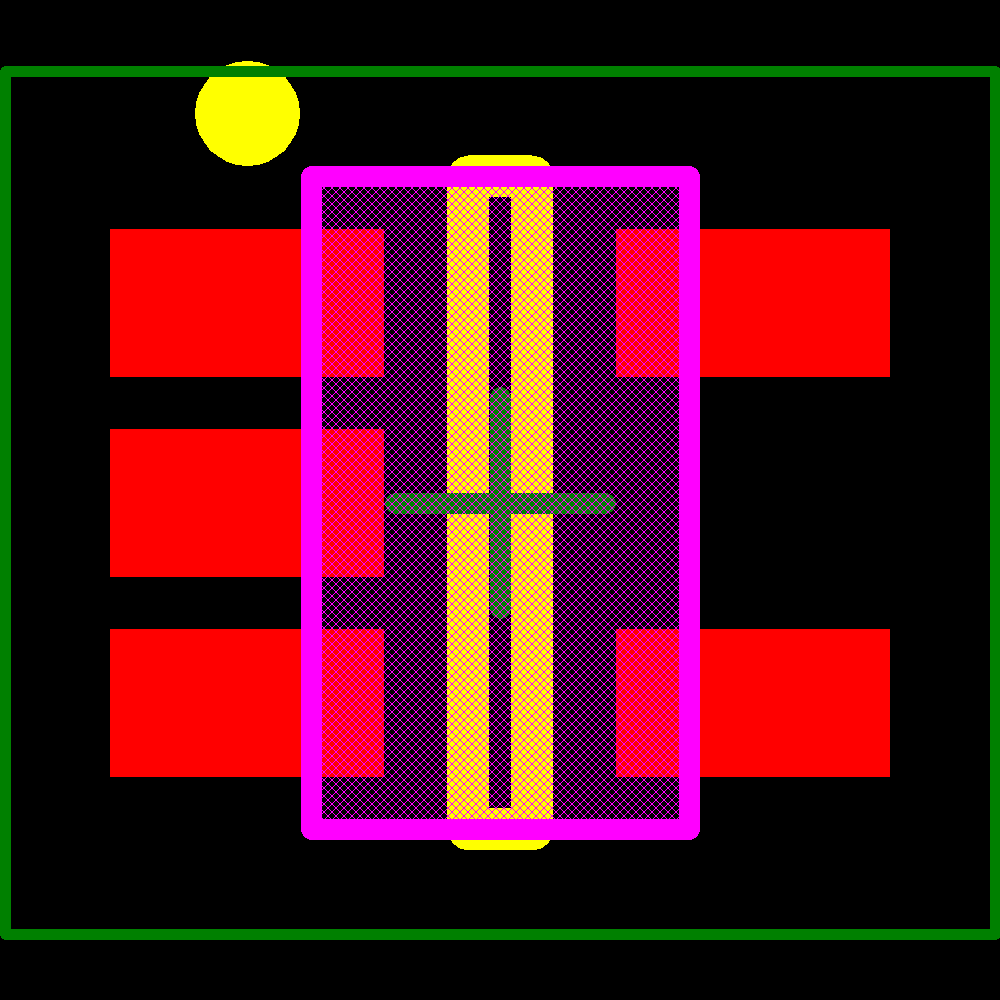

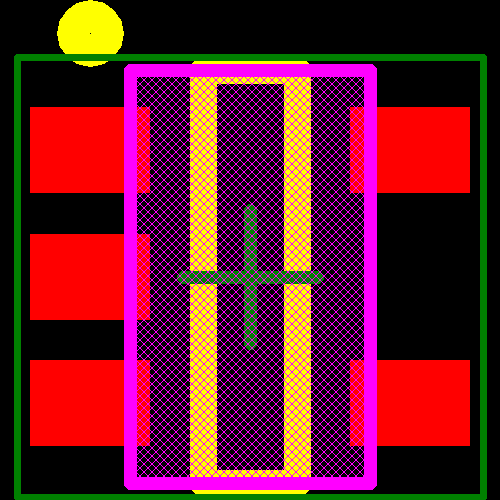

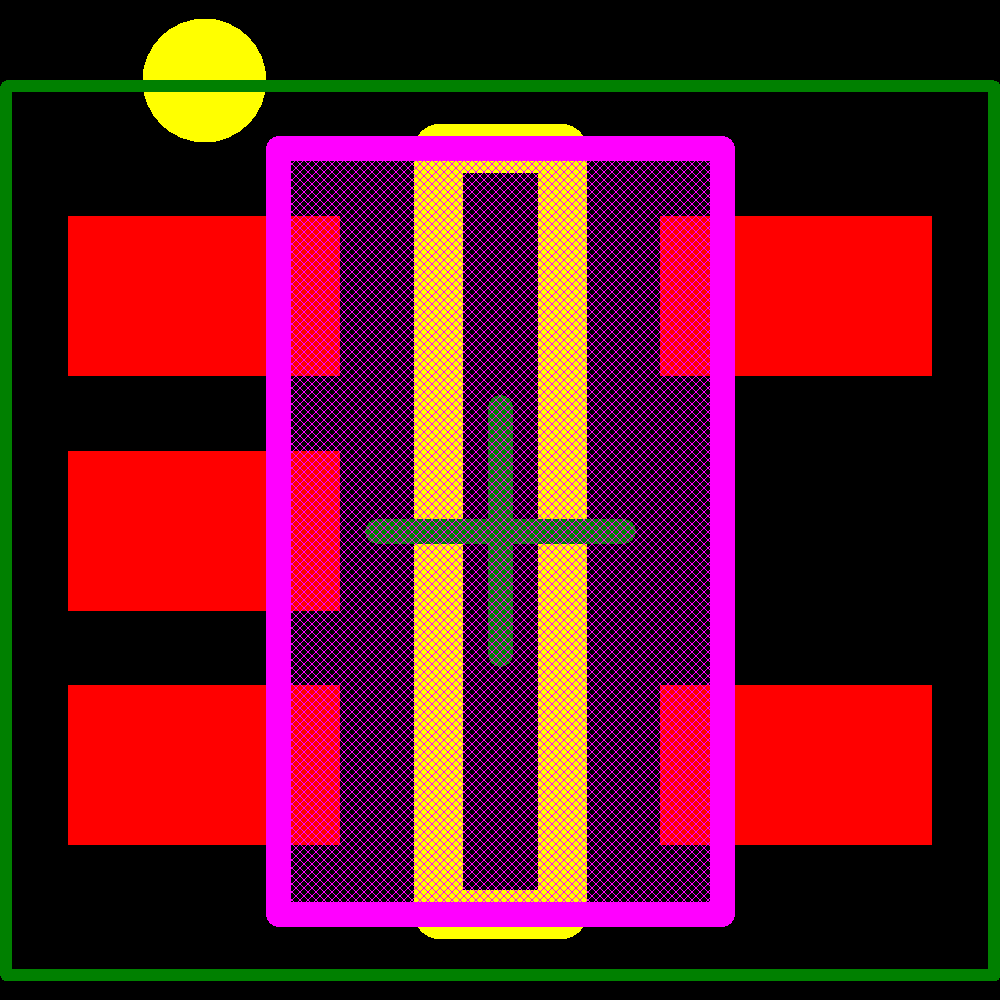

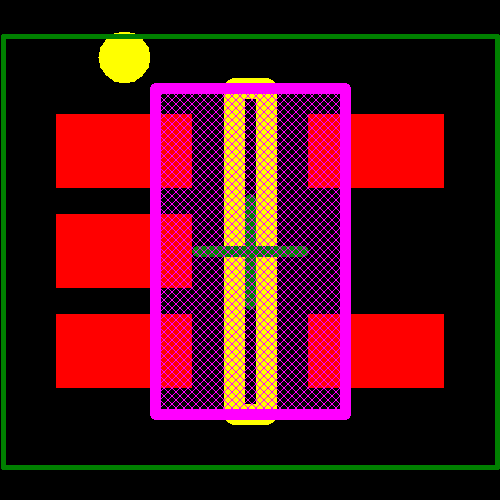

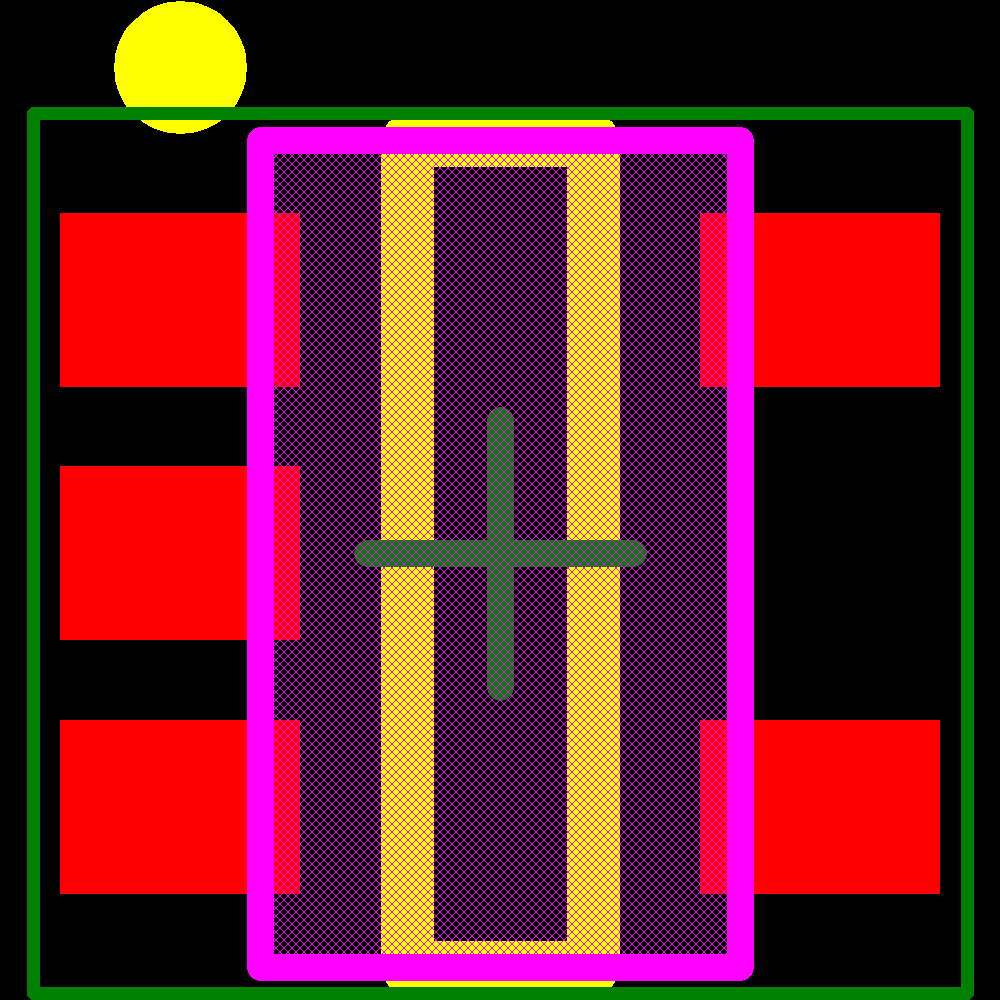

Footprint
